WIFI Internal Antenna 2.4G/5.8Ghz Dual Band Omni PCB Antenna Built-in With IPX Connector

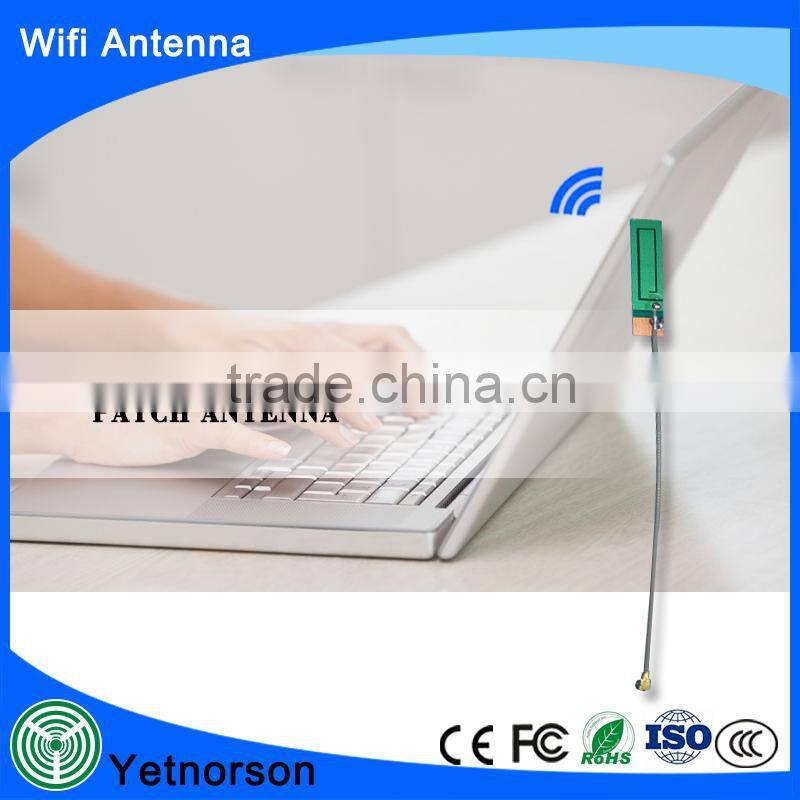

WIFI Internal Antenna 2.4G/5.8Ghz Dual Band Omni PCB Antenna Built-in With IPX Connector photo-1

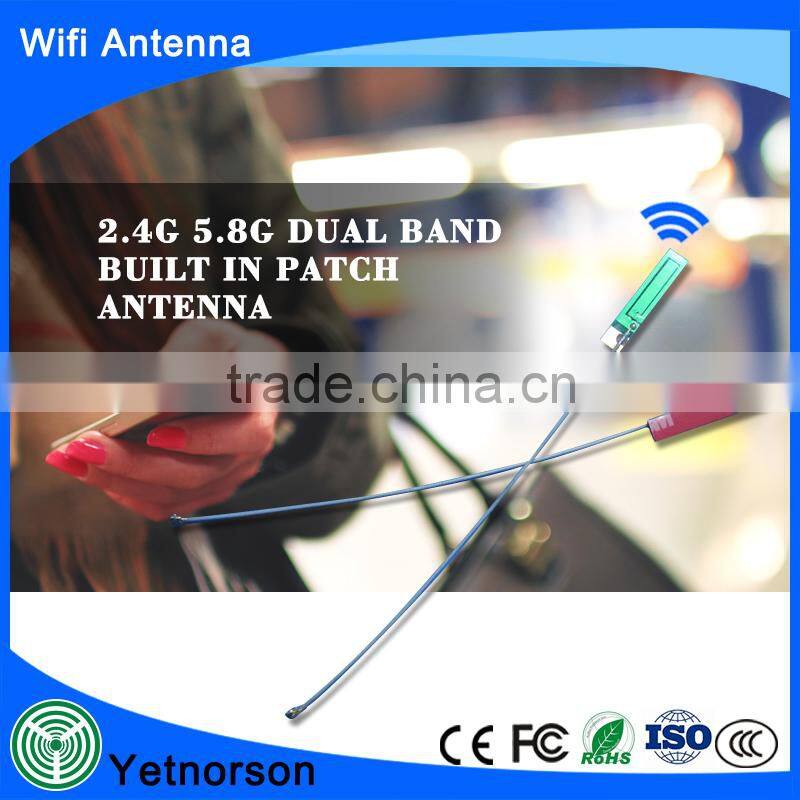

WIFI Internal Antenna 2.4G/5.8Ghz Dual Band Omni PCB Antenna Built-in With IPX Connector photo-2
US$ 1.5 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yetnorson
Model Number:
YNX-HS-G014
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Yetnorson
Model Number YNX-HS-G014

    WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector

WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector

1.detailed technology of the WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector

850/9

A. Electrical Characteristics
2.4GHz Antenna for IEEE802.11b/g/n WLAN System or Bluetooth
IEEE 802.11 b/g/n WLAN System
Wireless Communication System
Wi-Fi / WiMAX / MIMO System
Frequency 2.4G/5.8G
S.W.R. <= 2.5
Antenna Gain 2.4G 5dBi/  5.8G 4dBi
Polarization Linear
Impedance 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator PCB
Cable Type O.D. 1.13 mm // 100 mm
Connector Type Mini Connector
Pull Test >= 1.0 Kg

C. Environmental
Operation Temperature - 40 °C ~ + 65 °C
Storage Temperature - 40 °C ~ + 80 °C


 2.pictures of the WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector

WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX ConnectorWIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector





WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector



3.Test report of WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector



WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX ConnectorWIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector

Company Information

Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.





Refund & Replacement





1. We can guarantee the product quality within one years .



2. If parts cannot work, we will return payment or replacement to you.



3. Any items must be returned in their original condition to qualify for a refund or replacement.



4. The buyer is responsible for all the shipping cost incurred.

 WIFI Internal Antenna 2.4G/5.8Ghz Dual band Omni PCB Antenna built-in With IPX Connector



Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
