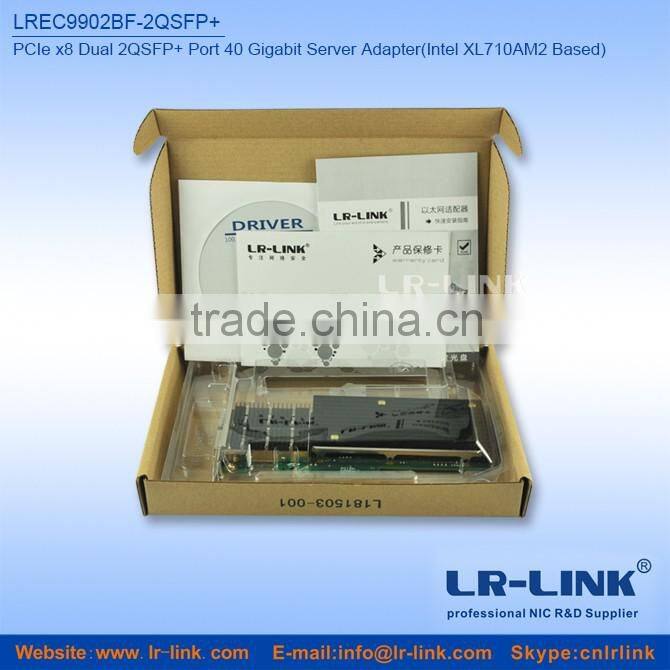

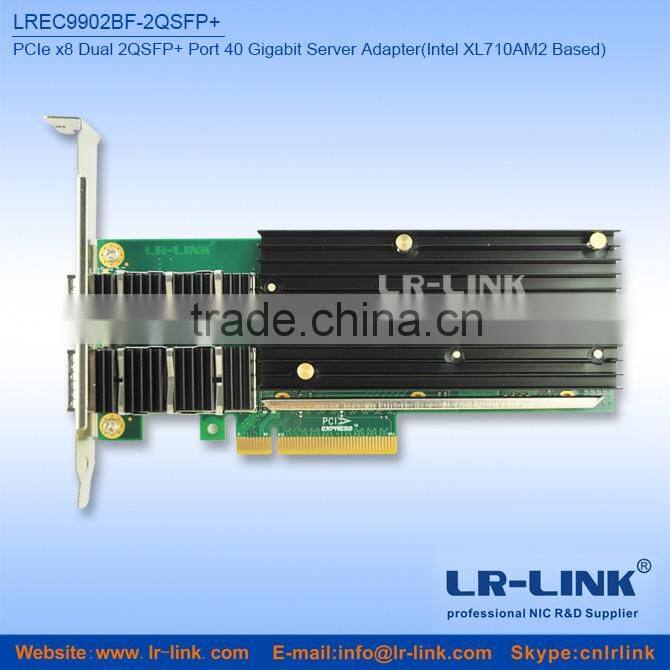

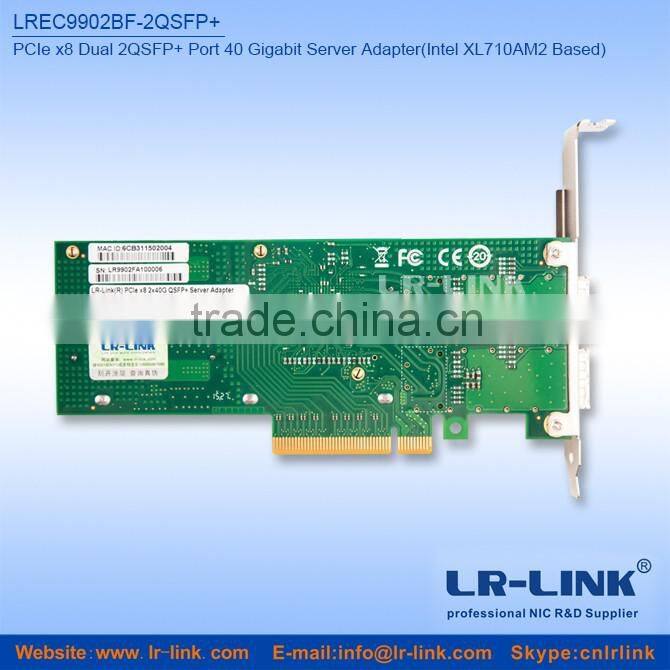

Dual QSFP+ Port Fiber 40 Gigabit 40Gbps Ethernet PCI Express Server Adapter (Intel XL710AM2 Based)

Description

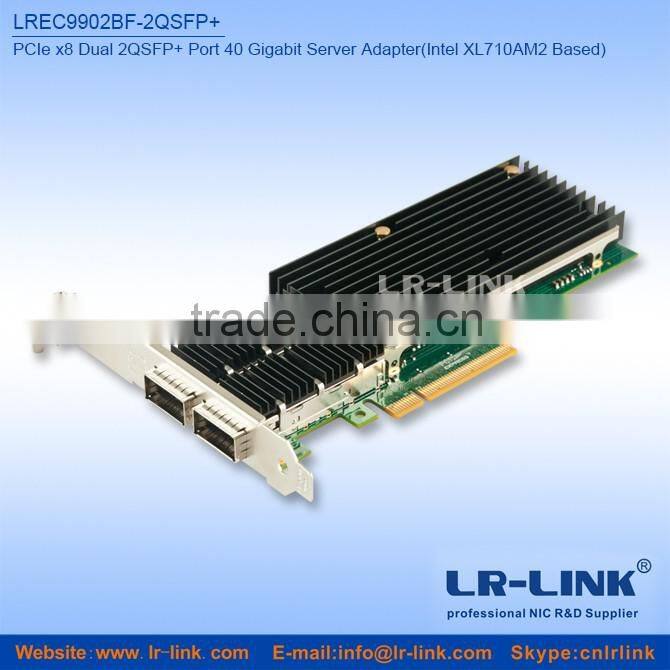

LR-LINK LREC9902BF-2QSFP+, Dual QSFP+ Fiber 40 Gigabit Ethernet PCI Express network interface card is designed for Servers and high-end appliances. LREC9902BF-2QSFP+ network interface card offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

LR-LINK LREC9902BF-2QSFP+ network interface card is based on Intel XL710AM2 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

LR-LINK LREC9902BF-2QSFP+ network interface card is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

•  Support for jumbo frame up to 9.5KB

•  Flow control support

•  Priority Flow Control (draft IEEE 802.1Qbb)

•  Enhanced Transmission Selection (draft IEEE802.1az)

•  Statistics management and RMON

•  802.1q VLAN support

•  DCB/DCB-X support

•  Message Signal interrupts (MSI-X)

•  Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FcoE

Host Interface:

•  PCI Express X8 lanes

•  Support PCI Express Base Specification 3.0 (8GT/sec)

LAN and Virtualization Features:

•  Network Virtualization offloads for VXLAN and NVGRE

•  Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)

•  Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh

•  Physical Functions – Up to 8 per port, up to 16 per device

•  Support for 128 Virtual Device Queues (VMDq) per port

•  Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)

•  Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)

TCP/IP/L2 features:

•  Receive Side Scaling (RSS)

•  Large Send Offload (LSO)

•  TCP/UDP/IP/SCTP Checksum Offload

•  IPV4, IPV6

Order Information

PS: Above details are only for reference, if there are any changes, no inform will have.
