Specifications
1,1x LC Broadcom 5708 Based2, optical fiber Gigabit Card in an anti-static bag
3,Quick install card
4,Low profile bracke
LREC9710PF-LX
Lowest Price Broadcom 5708 PCIe x4 Optical Fiber Gigabit Card For Server Supports TOE
Product Standard Features:
* Performance Gigabit Ethernet Throughput
* TCP/IP Offloading
* Accelerated iSCSI
* Load Balancing
* Checksum and Segmentation Offloads, and Interrupt Coalescing
* Scalability and Reliability
* Management Support
* Supports SNMP.
* Configuration Utilities
* LED Indicator

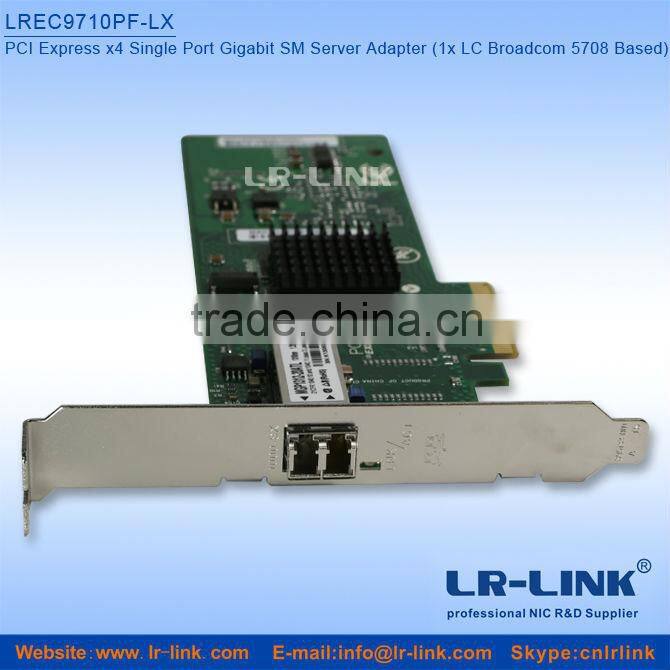

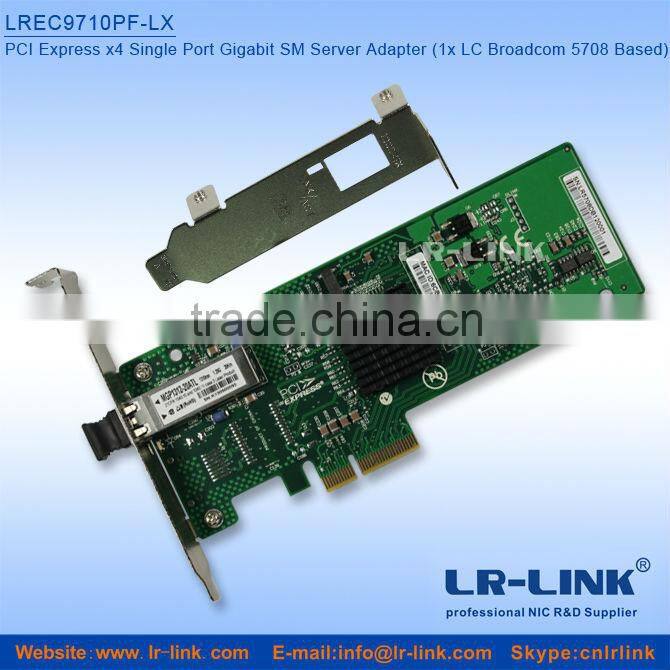

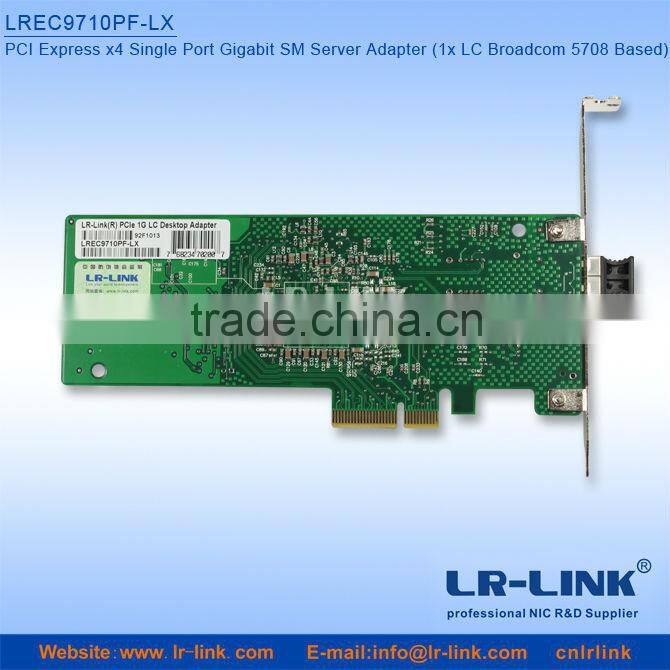

Nice Product Picture Showing:
Overview:
The LR-LINK LREC9710PF-LX is a high performance PCI Express multifunction network adapter for either standard or low profile slots in ProLiant servers running over a fiber-optic network environment.
In addition to delivering Gigabit Ethernet networking, the LREC9710PF-LX supports TOE (TCP/IP Offload Engine) for Windows only, Internet Small Computer System Interface (iSCSI).
Technical Specifications:
Compliance
IEEE 802.3z, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q
PCI Express ver 1.0a
General Specifications:
Main chip: Broadcom 5708C Optical Fiber Gigabit Card
On-board memory: 92KB
Data rate: 1000 Mbps, Half- and full-duplex
Data path: Four lane (x4) PCI Express compatible with x1, x4, x8, and x16 PCI Express slots
Interrupt levels: INTA
Connector: LC low profile
Distance and cabling: Up to 1,804 ft/550 m with multimode fiber (50µm/125µm)
Up to 722 ft/220 m with multimode fiber (62.5µm/125µm)
Power and Environmental Specifications:
Operating Temperature: 32° to 131° F (0° to 55° C)
Operating Humidity: 10% to 90% non-condensing
Non-operating Temperature: -40° to 185° F (-40° to 85° C)
Non-operating Humidity : 5% to 95% non-condensing
Packaging:
LREC9710PF-LX PCI Express Multifunction Gigabit Server Adapter in an anti-static bag
Low profile bracket
Quick install card
Product warranty statement
Ordering Information:
M/N |
Description |
Notes |
LREC9710PF-LX |
Lowest Price Broadcom 5708C PCIe x4 Optical Fiber Gigabit Card For Server Supports TOE |
1.25Gbps 1310nm 10Km |
