Specifications
1,Based on BCM5715S controllers2,Industry-leading performance
3,Boot ROM embedded or optional
4,Fiber Optic LC Connector
LREC9712PF
Special Offer BCM5715S PCI Express 1000FX Fiber Optic LC Connector Gigabit Ethernet Nic
Fiber Optic LC Connector Nic Descriptions:
The LR-LINK LREC9712PF Gigabit Fiber Optic LC Connector Nic are PCI Express network interface cards that contain Multiple / Single independent Gigabit Ethernet port/s on a PCI Express adapter.
LR-LINK LREC9712PF Fiber Optic LC Connector Nic is solution for high performance Server Network application. LR-LINK LREC9712PF Gigabit Ethernet PCI Express Servers adapters are based on Broadcom BCM5715S Gigabit Ethernet controllers that feature an industry first support for PCI Express server Adapters.
Key Features:
• Host Interface standard support PCI Express 1.0a
• High performance, reliability, and low power use in Broadcom 5715 dual integrated MAC + PHY / SERDES chip controller
• Ultra deep packet buffer per channel lowers CPU utilization
• Dual high speed RISC processor per channel for advanced packet classification
• Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
• Link Aggregation and Load Balancing:
• Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
• Switch and NIC Independent
• Jumbo Frame (9KB).
• 802.x flow control.
• Boot ROM embedded or optional can be used for Boot ROM applications.
• PCI Power Management Interface (v1.1)
• Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
• LEDs indicators for link/Activity/Speed status
Technical Specification:
LREC9712PF Fiber Optic LC Connector Nic Technical Specifications: | |
IEEE Standard / Networktopology: |
Fiber Gigabit Ethernet, 1000Base-SX (850nM) |
Data Transfer Rate: |
2000Mbit/s in full duplex mode per port |
|
Cables and Operating distance: |
Multimode fiber: 220m at 62.5 um 550m at 50 um |
|
Optical Output Power: |
Typical: -6 dBm Minimum: -9.5 dBm |
|
Optical Receive Sensitivity: |
Typical: -21 dBm Maximum: -17 dBm |
Operating Systems Support | |
Operating system support: |
Windows.NET Windows 2000; Windows NT Windows98 / WindowsXP Netware Linux; FreeBSD Unix: SCO Open Server UnixWare / OpenUnix 8 Solaris |
General Technical Specifications | |
Interface Standard: |
PCI Express Base Specification Revision 1.0 |
Board Size: |
Low profile Short PCI Add in card 167.74mm X 63.5 mm (6.6” X 2.5”): Detailed description Appendix A |
Controller: : |
Broadcom BCM5715S |
Holder: |
Metal Bracket |
Weight: |
3.2 oz (90 grams) |
|
Power Consumption: |
1.55A at 3.3V: Typical, port operates at 1000Mbit/s 1.5A at 3.3V: Typical, No link |
|
Operating Temperature: |
0°C – 50°C (32°F - 122°F) |
Storage: |
-20°C–65°C (-4°F–149°F) |
|
Non-Operating Relative Humidity: |
0% to 95%, non condensing |
EMC Certifications: |
FCC CE ROHS |

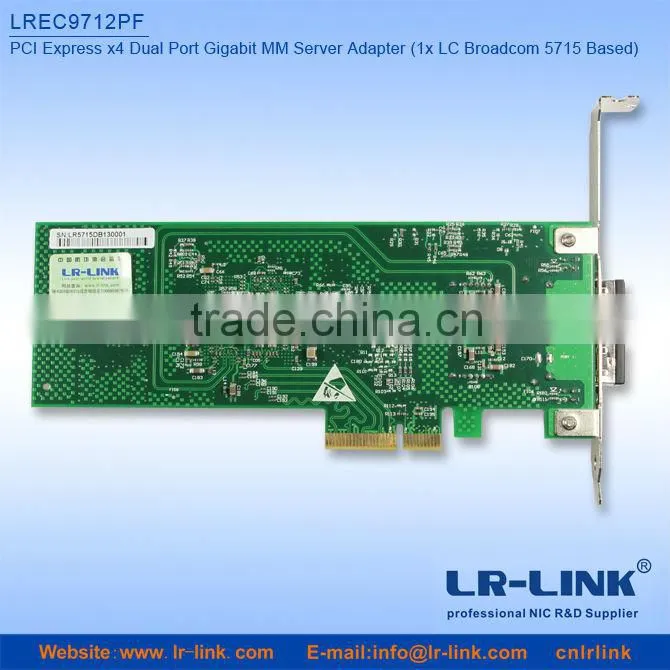

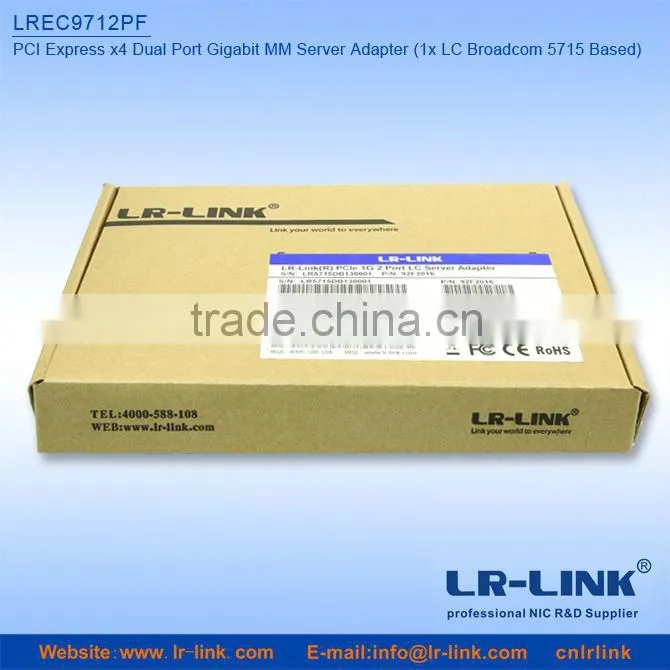

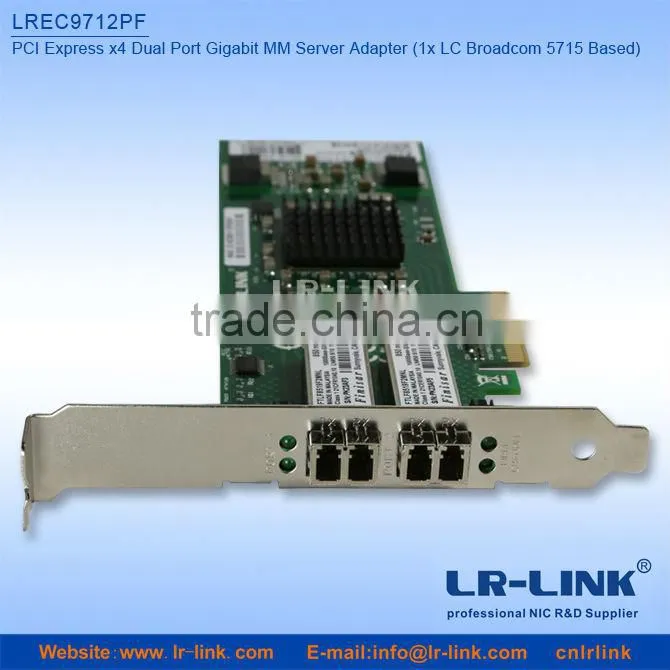

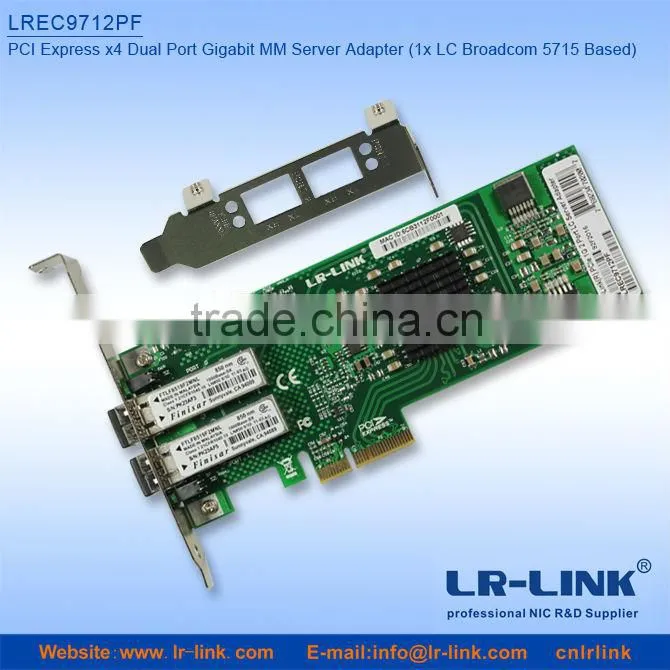

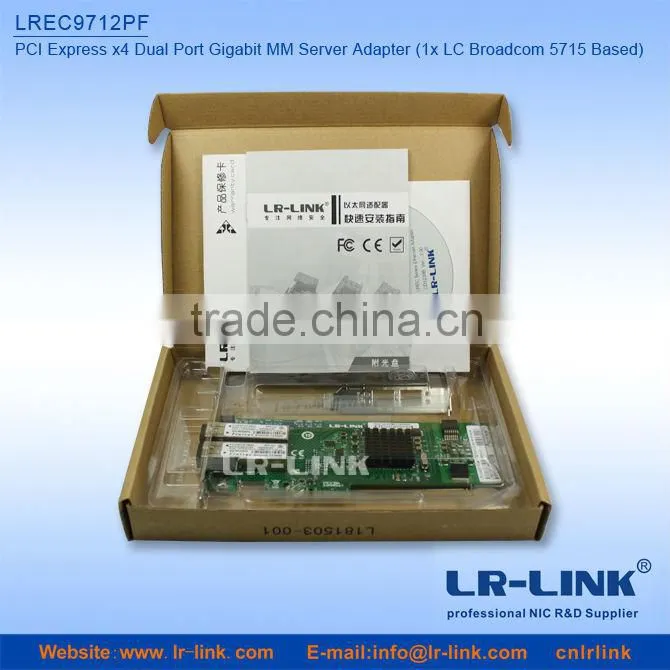

Fiber Optic LC Connector Nic Picture :
Ordering Information:
Modle |
|
|
LREC9712PF |
BCM5715S PCI Express 1000FX Fiber Optic LC Connector Gigabit Ethernet Nic |
BCM5715S,3U/2U bracket |
PS: The above details is just for reference,if there is any change,no prior notice will have.
