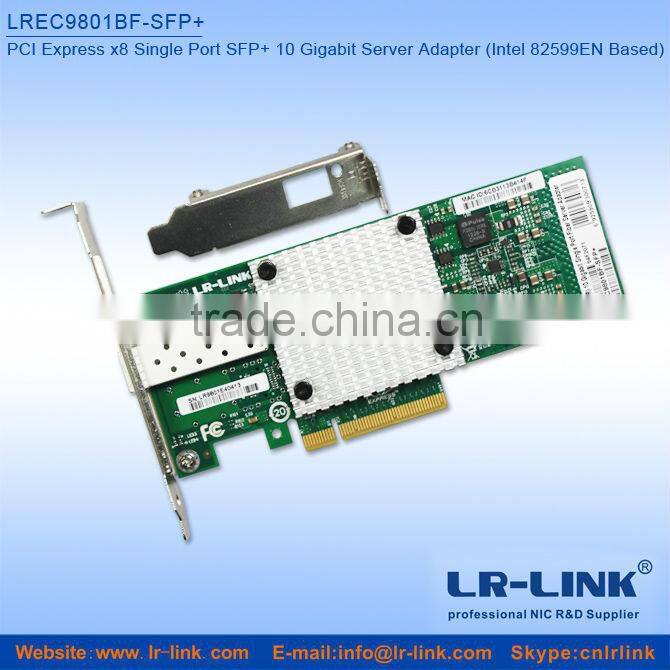

LREC9801BF-SFP+ Intel 82599ES PCI-Ex8 Single Port 10G Fiber NIC Network Card,compatible With E10G41BFSRNegotiableMOQ: 1 Piece
LREC9714HF-4SFP
PCI Express x4 Quad Port SFP Gigabit Server Adapter (Intel I350 Based)
Quad-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies
Key Features
A:Halogen-free quad-port Gigabit Ethernet adapters with fiber interface options
B:Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
C:Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
D:Scalable iSCSI performance delivering cost-effective SAN connectivity
E:High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
F:Reliable and proven Gigabit Ethernet technology from Intel Corporation

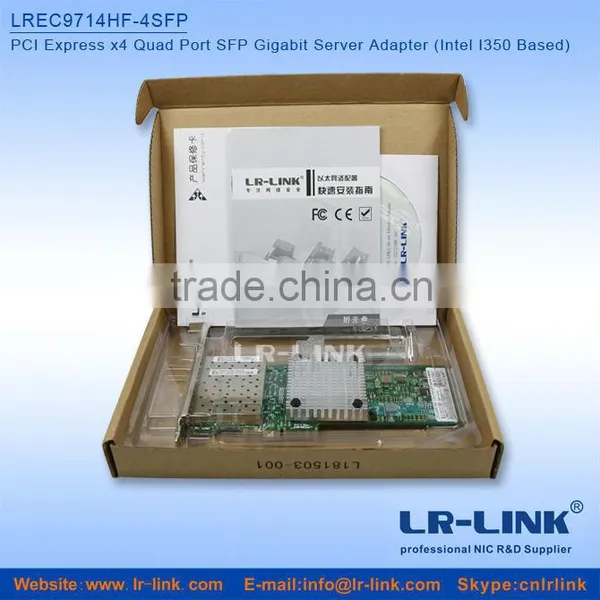

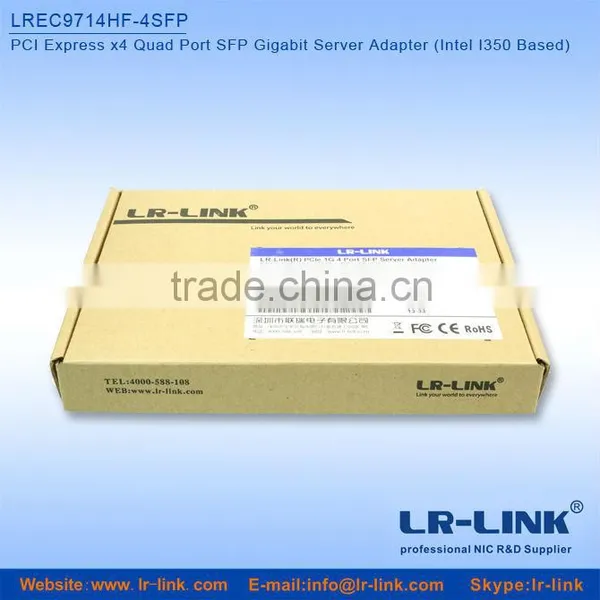

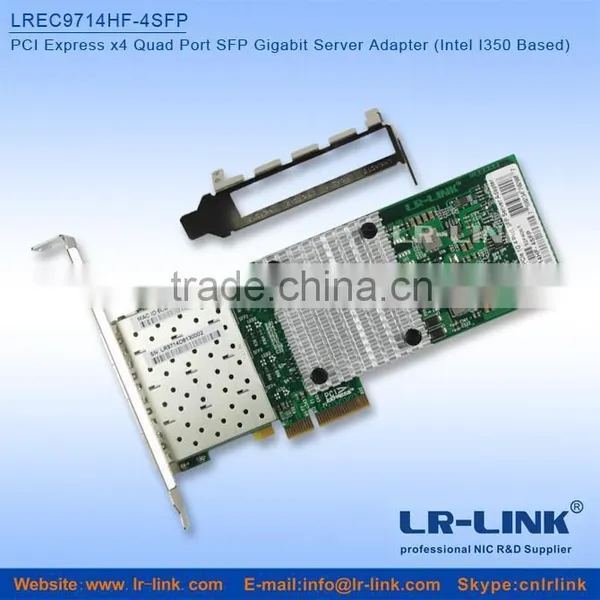

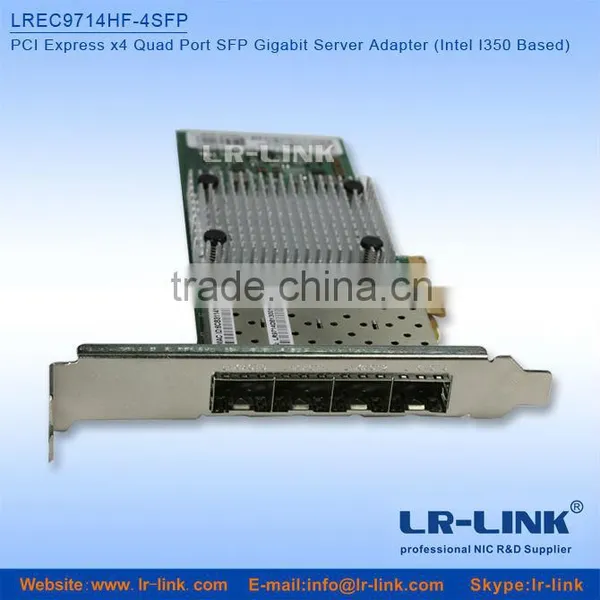

Gigabit Ethernet Lan Card Product picture
Flexible I/O Virtualization
The LREC9714HF-4SFP includes Intel® Virtualization Technology for connectivity (Intel® VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the controller on the adapter.I/O virtualization advances network connectivity models used in today’s servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/Tx queues, and on- controller QoS functionality that can be used in both virtual and non-virtual server deployments.
Scalable iSCSI Performance
An LREC9714HF-4SFP with native iSCSI initiators built into Microsoft* Windows*, Linux*, and VMware* ESX platforms provides a simple, dependable, cost-effective way to connect to iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel® Ethernet Adapters for iSCSI enables administrators to use a single initiator, TCP/IP stack, and a common set of management tools and IT policies.In addition,Intel® Ethernet Server Adapters include a number of hardware features designed to accelerate iSCSI traffic and enhance data processing.
Power Management Technologies
LR-LINK has introduced new, advanced Power Management Technologies (PMTs)with the LREC9714HF-4SFP that enable enterprises to configure power options on the adapter and more effectively manage their power consumption.
General Features
Intel® Ethernet Controller I350
With PCI Express* V2.1 (5 GT/s) Support
Low-Profile and Standard height full
Ethernet Features
IEEE* 802.3 auto-negotiation
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex
IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Automatic cross-over detection function (MDI/MDI-X)
IEEE 1588 protocol and 802.1AS implementation
I/O Virtualization Features
Eight transmit (Tx) and receive (Rx) queue pairs per port
32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port
Support for PCI-SIG SR-IOV specification
Rx/Tx Round-Robin Scheduling
VM to VM Packet forwarding (Packet Loopback)
MAC and VLAN anti-spoofing
IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Stateless Offloads/Performance Features
TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Tx TCP segmentation offload (IPv4, IPv6)
Transmit Segmentation Offloading (TSO)
Interrupt throttling control
Legacy and Message Signal Interrupt (MSI) Modes
Message Signal Interrupt Extension (MSI-X)
Intelligent interrupt generation
Receive Side Scaling (RSS) for Windows environment
Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP
Support for packets up to 9.5K Bytes ( Jumbo Frames)
Header/packet data split in receive
PCIe v2.1 TLP Processing Hint Requester
Remote Boot Options
Preboot eXecution Environment (PXE) flash interface support
Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware
Intel Boot Agent software:
Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI
Adapter Product Features
Plug and play specification support
Intel® I/O Acceleration Technology (Intel® I/OAT)
Ships with full-height bracket installed; low-profile bracket included in package
Gigabit Ethernet Lan Card Technical Features
Data rate supported per port |
1000 Mbps |
| Bus type | PCI Express* 2.1 (5 GT/s)) |
| Bus width | 4-lane PCI Express; operable in x4, x8 and x16 slots |
| Interrupt levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| Controller-processor | Intel Ethernet Controller I350 |
| Power consumption (typical) | 6.0 W |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage humidity | 90% non-condensing relative humidity at 35 °C |
Network Operating Systems (NOS) Software Support
Ø DOS, Novell ODI
Ø Windows XP 32-bit(64-bit)
Ø Windows Server 2003 32-bit(64-bit)
Ø Windows Vista 32-bit(64-bit)
Ø Windows 7 32-bit(64-bit)
Ø Windows 8 32-bit(64-bit)
Ø Windows 8.1 32-bit(64-bit)
Ø Windows Server 2008 32-bit(64-bit)
Ø Windows Server 2008 R2 32-bit(64-bit)
Ø Windows Server 2012
Ø Windows Server 2012 R2
Ø Linux 2.4 series kernel,2.6.x,3.x
Ø FreeBSD 7.x or most of the FreeBSD
Ø UnixWare / Open Unix 8
Ø Sun Solaris x86
Ø Xen4
Ø VMware
Company Information:
Professional Quality Trustworthy
Shenzhen Lianrui Electronics CO.,LTD has developed for 8 years,has been to the professional supplier for the high-quality fiber communicate products.We have accumulated a lot of rearching and manufacturing experience in fiber communication erea,especially FTTD application,it is the top in this field.To satisfy the market needs, Independent R &D kinds of fiber network cards,this is unique in the market all over the world.It was applicated successfully.To welcome the develop trend of “the integration of telecommunications networks, cable tv networks and the internet”and “optical access for replacing copper access”,Lianrui input all our energy the LREC fiber nic brand,to supply more professional,more stable,more flexible,more products choice for users.
LREC9714HF-4SFP Gigabit Ethernet Lan Card is on sale.
