Home > Products > Metering&Mixing Dispensing > epoxy dome sticker machine TH-2004D-2004AB
epoxy dome sticker machine TH-2004D-2004AB
- 100 Set / Sets per Month
- NINGBO
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TianHao Dispensing | Model Number: | TH-2004D-2004AB |
Product Description
Specifications
Long and stable work well,high-quality productsProfessional dispensing software,Easy to learn and operation it
Easy maintenan
Model:
TH-2004D-2004AB epoxy dome sticker machine

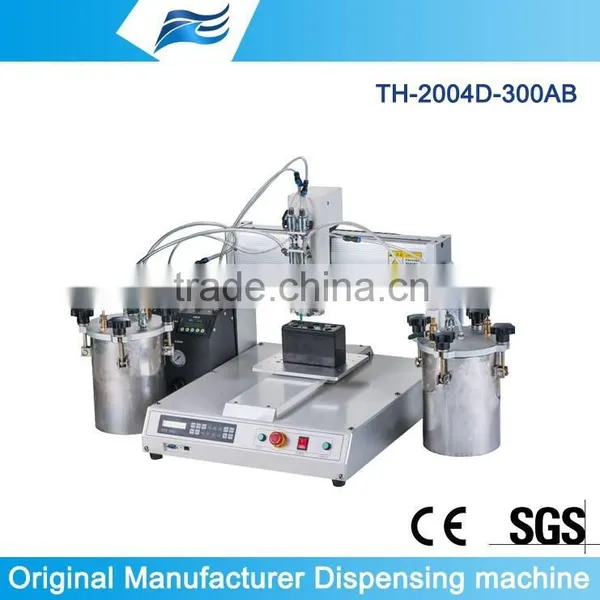

Product pictures:
Standards: CE approved
Liquid ratio: 1:1-3:1 (can be adjusted)
Viscosity: <20000cps
Tank: 1gallon (Other capacity can be chosen)
Mixing method: static mixer
Sales Points/Focus and Structure picture
1.High Capacity cartridge, avoiding high frequency replacement of material
2. A Professional dispensing software combination of feed system and arm running control to achieve the synchronization control.Teach Pendant Chinese/English edit programs interface
3.Z-axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy.when that 6kg maximum z axis load will remain in a upper position after switching off the power.
4. User-friendly design features a lightweight, attractive appearance, easy to learn. Interpolates lines or arcs for three-dimensional dispensing.,Continuous path motion for precise XYZ dispensing. The right deposit, in the right place — every time.
5.Single machine can operate.Avoid staff misuse, or change has set a good program,When you finish the program edit by the soft control key directly control robot work without the need for an external Teach Pendant.
6.Easy maintenance. Even if the teaching Pendant and liquid controller have problems, there will not have no affect the machine ‘s work.Single machine can operate.
7..Increase the parameters display with programmer, which will provide you more intuitive operation.
8.Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files ,CAD file directly change to the dispensing path.
9.Each axis with 2 linear guide rail will provide you better stability.
11.As customer production require add the I / O interface, easy add other equipment device,Flexible power supply design for overseas use.
12.XY/Z Maximum Load 15KGS/6KGS
13.Repeatability: +-0.01 mm/ axis,3 axis synchronous work get +-0.01 mm/axis, other competitors no possible 3 axis get this precision at same time.
14.Transmission:new timing belt/precision linear Guides.
15..Drive System: new precision micro-stepper motor.
Main specification:
ITEM | TH-2004D-2004AB1 | TH-2004D-2004AB2 | TH-2004D-2004AB3 | ||
X/Y/Z working range | 300 x 300 x 100mm | 400 x 400 x 100mm | 500 x 500 x 100mm | ||
Standard | CE Approved | ||||
XY/Z Maximum Load | 15 kg / 6 kg | ||||
XY/Z Speed | 0.1-800/350 mm/Axis | ||||
Repetitiveness | ±0.01mm/Axis | ||||
Data memory capacity | 999 programs | ||||
Display way | LCD display | ||||
Drive System | Precision micro-stepper motor | ||||
Transmission | Timing Belt/ Precision Linear Guides | ||||
Edit Programming | Handheld Programmer | ||||
I/O Signals | 4 Inputs / 4 Outputs | ||||
Patterns | Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting | ||||
Power Supply | AC110V/220V Internal conversion | ||||
Working Temperature | 0 ~40 °C | ||||
Relative Humidity | 20-90% (no condensation) | ||||
Dimensions (W x D x H) cm | 65X55X65 | 75x64x65 | 84x75x78 | ||
Weight with packed | 40kgs | 45kgs | 53kgs |
Complete accessories dispensing kit
NO. | Descriptions | QTY | Note |
1 | TH-2004D ROBOT | 1set | |
2 | TH-2004AB Dispenser | 1set | |
3 | Teach pendant | 1pcs | |
4 | Product jig | 1set | |
5 | Cable line | 1pcs | |
6 | Tool/Tool box | 1set | |
7 | TH2004AB Dispenser controller | 1pcs | |
8 | 4kgs Tank | 2pcs | |
9 | TH-700J Valve | 1pcs | |
10 | Foot pedal | 1pcs | |
11 | Tee | 2pcs | |
12 | STATIC MIXER | 2pcs | |
13 | Electric line(plug) | 1pcs | |
14 | Air tube connect controller and valve | 1pcs | |
15 | Air tube using for controller | 1pcs | |
16 | Glue tube for tank(short) | 2pcs | |
17 | air tube (white) | 2pcs | |
18 | Air pressure gauge | 1pcs | |
19 | Handle( black) | 6pcs | |
20 | Machine tool with adjusting ratio | 1pcs | |
21 | Dispensing tips | 10pcs | |
22 | frame | 1pcs | |
23 | manual book | 1pcs | |
24 | Filter valve | 1pcs | |
25 | Warranty card | 1pcs | |
26 | Machinery certificate(CE) | 1pcs |
Package:
Items per Carton: | 1 Units / Carton |
Package Measurements: | 65X55X65CM |
Gross Weight: | 56 KG |
Delivery in 3 workday after received your payment
Shipping ways by TNT.ups,dhl.fedex
Loading port:Ningbo or shanghai
Our Service: Your satisfactory, our pursuit!
1,Your inquiry will be replied in 24 hours.
2,Offer free spare parts and service within one year of warranty,
3,Technology Support Provide Demo operation video for training; If you have time,
welcome to our company, Will arrange engineers to show you the operation.
4, Professional after-sales service team;
5,Give great discount to AGENCY to ensure agents profit.
Our product can help you to achieve the goal :
- Increase production efficiency
- Promotion processing precision control
- Improve product quality
- lower production costs, reduce rejected product
- Eliminate material waste
Available Dispensed Material
UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.
Application Area
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
OUR CERTIFICATE
We provide 1 years warranty of product and shipment with one set fitting to you
Factory Show
Production room
Warehouse
Our advantages:
1. Original Manufacturer/factory
2. High reputation around the china
3. 10 years experience of glue dispensing machine
4. Best quality and good work
5. High grade components
6. Special dispensing software, both Chinese and English interface
7. Professional service and technology support
8. All models with CE approved;
9. OEM services accepted
Our product:
- 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
- Dispenser.mix/meter dispensing system - for manual assembly processes
- Threadlocking adhesives coating machine-suitable for thread coating processes
- Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
- Valve, tank-for automated production lines
- Highest quality dispensing tips ,syringe barrels
- Other disposable components
