Two Component mixing machine -TH-2004D-300AB
- 100 Set / Sets per Month
- shanghai
- 2-Axis North-Seeking MEMS Gyro
- High Precision Navigation MEMS Gyroscope
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- GT-RS368 resistance coil maxhine for coil with big in the middle small in both end heating and cooling companies
- High Performance Navigation Grade MEMS Gyroscope
Product Details
Place of Origin: | China | Brand Name: | Tianhao | Model Number: | TH-2004D-300AB |
Product Description
Specifications
1. low price2.good quality
3. one year of warranty
4.CE approved

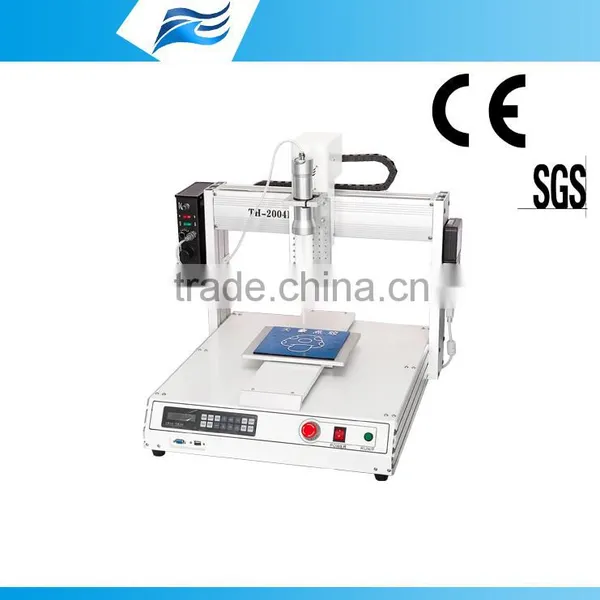

Two Component mixing machine
TH-2004D-300AB
Established in 2000, TIANHAO is more than just a provider of highquality adhesive application equipment:
since our early days as a small dispensing robot manufacturer, we have offered our customers the highest standards in service while expanding ourequipment product lines.
As a result, today TIANHAO is a comprehensive manufacturer of dispensing products.
Our Dispensing Products are used in many industries including automotive,aerospace,electronics, home appliances , jewelry and much more .
We are able to provide a solution for every application requiring precision applications of fluids.
Liquid ratio: 1:1-10:1 each kind of Double syringe-loaded A, B component
Viscosity: < 20000CPS
Mixing method: static mixer

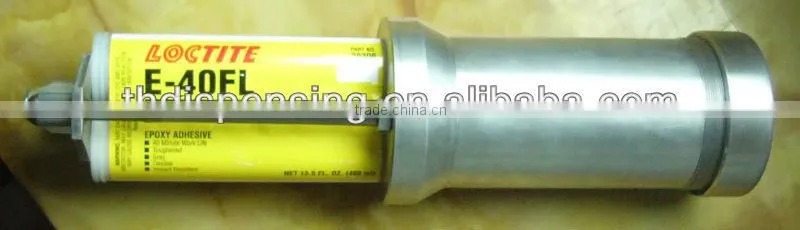

Appliable Adhesive packaging : two component cartidge adhesive
Our advantages listed below:
1. Original manufactuer
2. Competitive price with high quality
3. Strong techinical support
4. High grade Component
5. Customized Products
Features:
1.The machine has automatic mixing and automatic dispensing function. Dispensing precision is high, speed is fast, and Position is accurate. Good stability can be 24 hours of continuous production.
2.Tianhao unique patented technology, completely avoid the matching accuracy mistakes by pressure ratio.
3.Professional dispenses software combination of feed system and arm tuning control to achieve the synchronization control.
4. XYZ with dual rail robotic arm, the Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy.
· Operation simple, install easy.
· Weight is light, good for shipping.
· CAD file directly change to the dispensing path
· Chinese/English edits programs interface
· Flexible power supply design for overseas use.
Specifications :
ITEM | TH-2004D-300AB | TH-2004D-400AB | TH-2004D-500AB |
X/Y/Z Work Range | 300 x 300 x 100mm | 400 x 400 x 100mm | 500 x 500 x 100mm |
Standard | CE Approved | ||
XY/Maximum Load | 15 Kg / 6 Kg | ||
XY/Z Speed | 0.1-800/350 mm/Axis | ||
Repetitiveness | ±0.01mm/Axis | ||
Data memory capacity | 999programs | ||
Display way | LCD display | ||
Drive System | Precision micro-stepper motor | ||
Transmission | Timing Belt/ Precision Linear Guides | ||
Edit Programming | Handheld Programmer | ||
I/O Signals | 4 Inputs / 4 Outputs | ||
Patterns | Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting | ||
Power Supply | AC110V/220V Internal conversion | ||
Working Temperature | 0-40 °C | ||
Relative Humidity | 20-90% (no condensation) | ||
Dimensions (W x D x H) cm | 65X55X65 | 75x64x65 | 84x75x78 |
Weight | 40kgs | 45kgs | 53kgs |
Customer List
Feed system: TH-206AB dispenser
