LREC9714HT
LR-LINK Support VDMq Intel I350AM4 Chipest I350-T4 PCI-e 4xRJ45 Gigabit Network Card
Quad-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies
Description:
The new LREC9714HT builds on LR-LINK’s history of excellence.LR-LINK continues its market leadership with this new generation of PCIe* GbE network adapters.Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
I350-T4 Network Card Key Features:
* Flexible I/O Virtualization Support VDMq
* Scalable iSCSI Performance
* Power Management Technologies
* Energy Efficient Ethernet (EEE).
* DMA Coalescing
* Software Tools and Management
* Intel® Ethernet Controller I350
* With PCI Express* V2.1 (5 GT/s) Support
* Halogen Free1
* Low-Profile and Standard height full
* IEEE* 802.3 auto-negotiation
* 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
* Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex
* IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
* Automatic cross-over detection function (MDI/MDI-X)
* IEEE 1588 protocol and 802.1AS implementation
* Preboot eXecution Environment (PXE) flash interface support

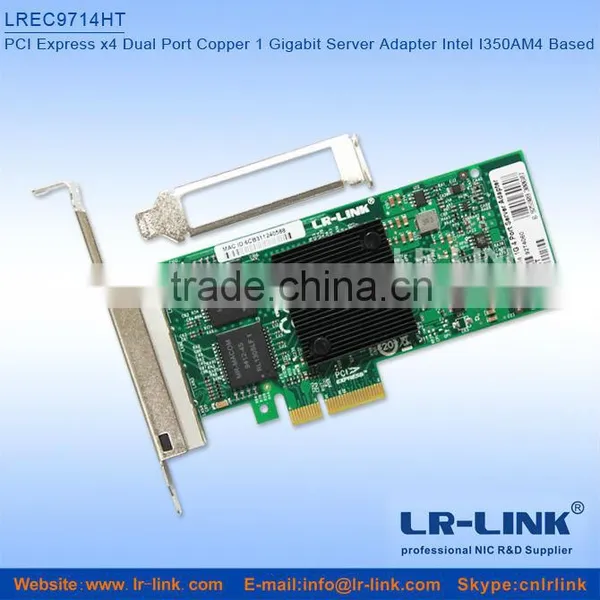

LR-LINK I350-T4 Network Card Product Picture:
| Technical Specifications : | |
| LREC9714HT Gigabit Network Card Brand Technical Specifications | |
| IEEE standard/ Network Topology | IEEE802.3az - Energy Efficient Ethernet (EEE) |
| Data rate supported per port | 10/100/1000 Mbps |
| Full duplex / Simplex | Support both Simplex & Full duplex operation in all operating speeds |
| Auto negotiation | Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s |
| Performance Enhancements | ACPI register set and power down functionality supporting D0 and D3 states |
| 32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port | |
| IP,TCP and UDP Checksum Offloading | |
| Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware | |
| MAC/PHY Control and Status | |
| LREC9714HT Gigabit Network Card Brand General Technical Specifications | |
| Bus type | PCI Express* 2.1 (5 GT/s) |
Bus width |
X4-lane PCI Express; operable in x4, x8 and x16 slots |
| Interrupt levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| Power consumption (typical) | 6.0W |
| Controller: | Intel Ethernet Controller I350 |
| Holder: | Metal Bracket |
| Environmental Specifications | Operating Humidity:0%–90%, non-condensing |
| Operating Temperature:32°to 131°F (0°to 55°C) | |
| Storage: -40°C–70°C (-40°F–158°F) | |
| Operating system support: | Windows XP Professional SP3; Windows XP Professional SP3; Windows Vista SP2; Windows 7 SP1; Windows Server 2003 SP2; Windows Server 2008 SP2; Windows Server 2008 SP2 Core; Windows Server 2008 SP2 (w/Hyper-V role); Hyper-V Server 2008 SP2 (stand-alone version); Windows Server 2008 R2 SP1; Windows Server 2008 R2 SP1 Core; Windows Server 2008 R2 SP1 (w/Hyper-V role); Hyper-V Server 2008 R2 SP1 (stand-alone version); Linux Stable Kernel version 2.6; Linux RHEL 5.5; Linux RHEL 6.0; Linux SLES 10 SP3; Linux SLES 11 SP1; FreeBSD* 8.0; DOS* NDIS 2; DOS ODI; EFI* 1.1; uEFI* 2.1; VMware* ESX 4.03; VMware ESX 4.13; VMware ESX 5.03; Xen4 |
| LEDs: | LED per port Speed LED(Left): Link of 1Gb/s: Turns on link (yellow) Link of 10Gb/s: Turns on link (green) Link /ACT LED(Right) : Turns on link , blinks on activity (green) |
| LEDs location: | LEDs are located in the RJ45 connector port. |
| Connectors: | Shielded RJ-45 |
Packaging Pictures:
Order information:
M/N |
Description |
LREC9714HT |
PCI Express x4 Quad Port Copper Gigabit Server Adapter (Intel I350 Based) |
PS: The above details are just for reference,if there are any changes,no inform will have.
