Home > Computer Products > Network Hardware & Parts > Network Card > Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network Card NIC,compatible With E1G42ET

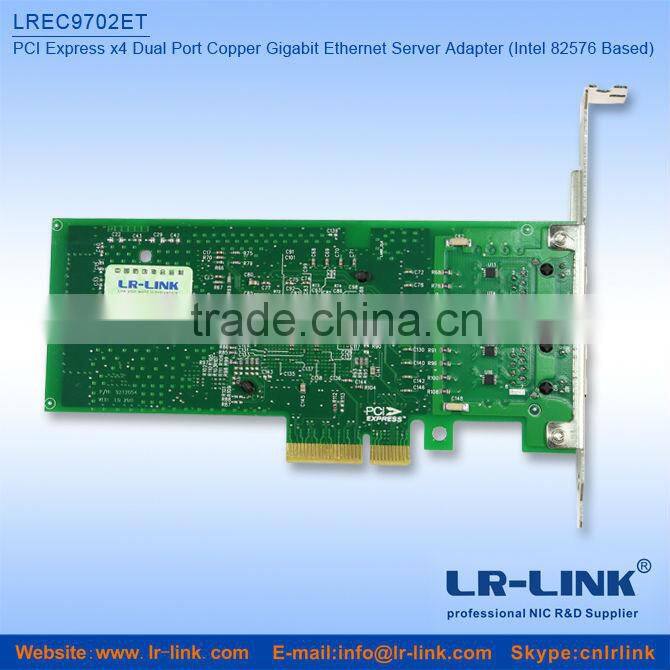

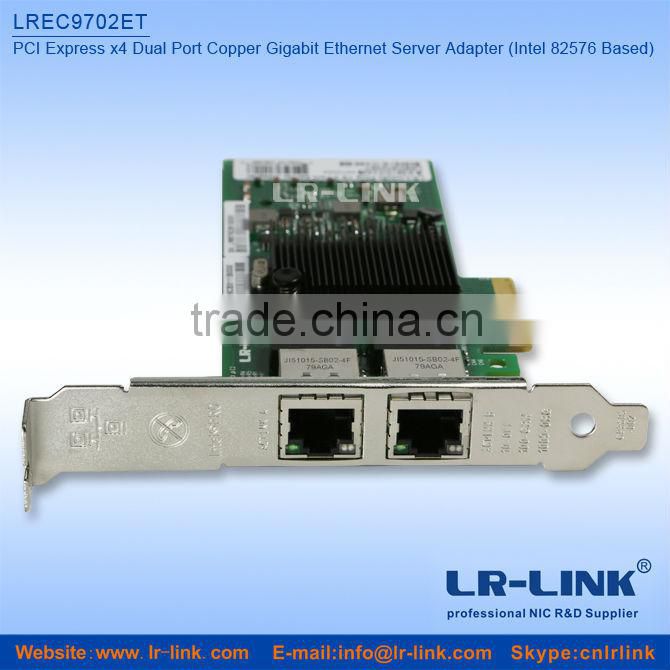

Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network Card NIC,compatible With E1G42ET

Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network Card NIC,compatible With E1G42ET thumbnail-1
Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network Card NIC,compatible With E1G42ET photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
Shenzhen LR-LINK Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate Other, 1Gbps
Interface Type PCI Express

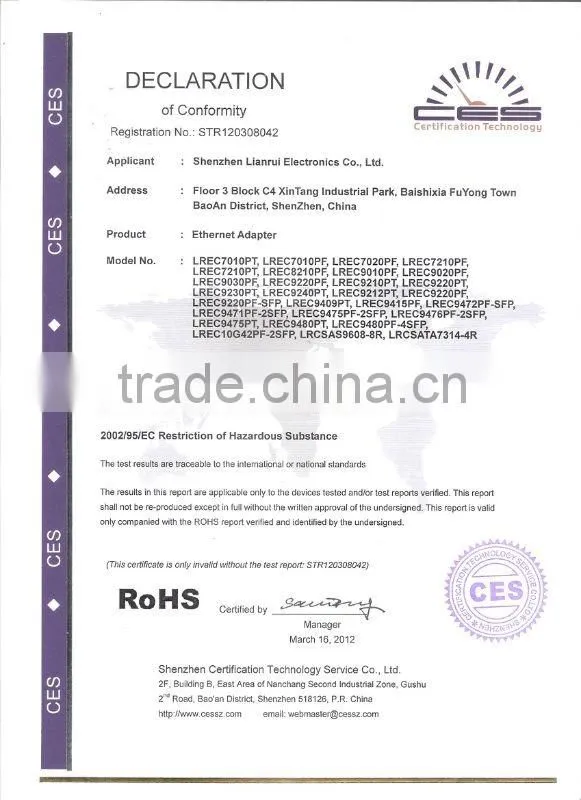

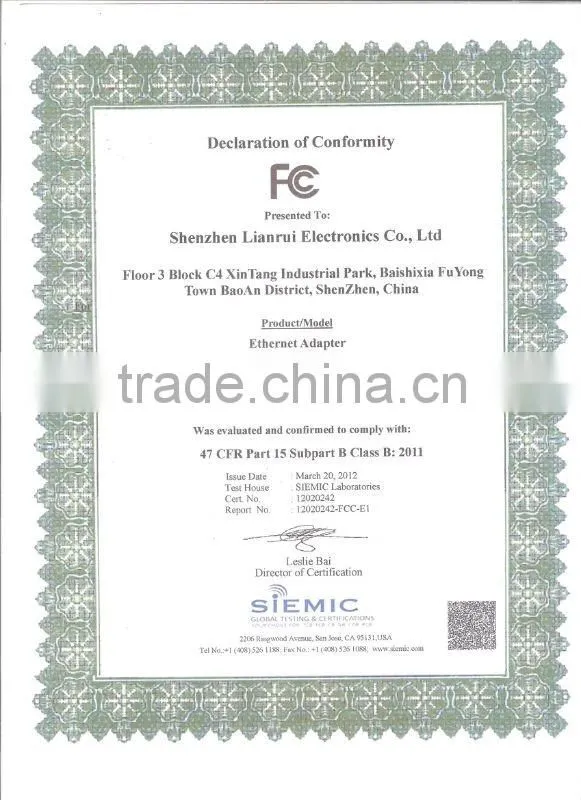

Certification CE,FCC,ROHS
Brand Name LR-LINK
Model Number LREC9702ET
Place of Origin Guangdong, China

Specifications

1.PCI-Ex4 Dual Port Adapter
2.for server
3.good quality and high performance

LREC9702ET  Intel 82576 PCI-Ex4 1000Mbps Dual Port Server Adapter NIC

Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ET





Specifications







General



Product codes :LREC9702ET intel  82576 Gigabit Dual Port Server Adapter



  Connectors :RJ45





IEEE standards/network topology :10BASE-T, 100BASE-T,1000BASE-T



Cabling: Category-5, unshielded twisted pair (UTP)


Adapter Product Features



Intel PROSet Utility: For easy configuration and management



Plug and play specification support :Standard



Intel I/OAT1  including multiple queues & receive-side scaling

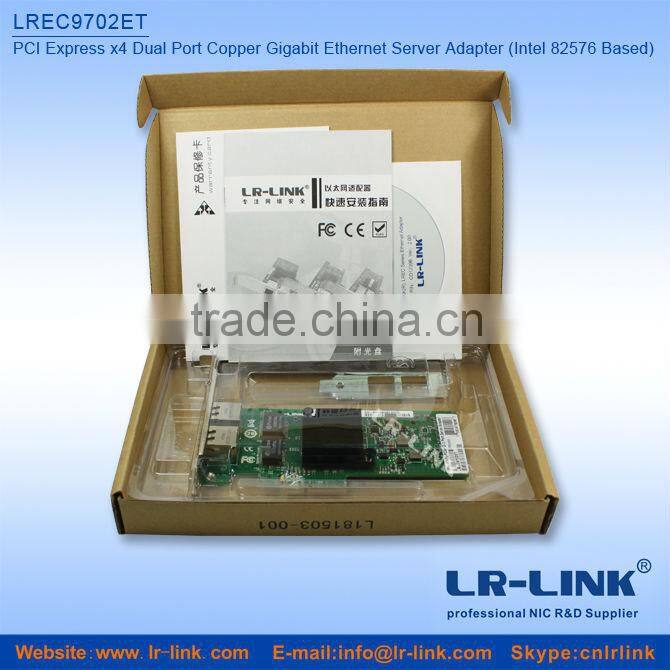

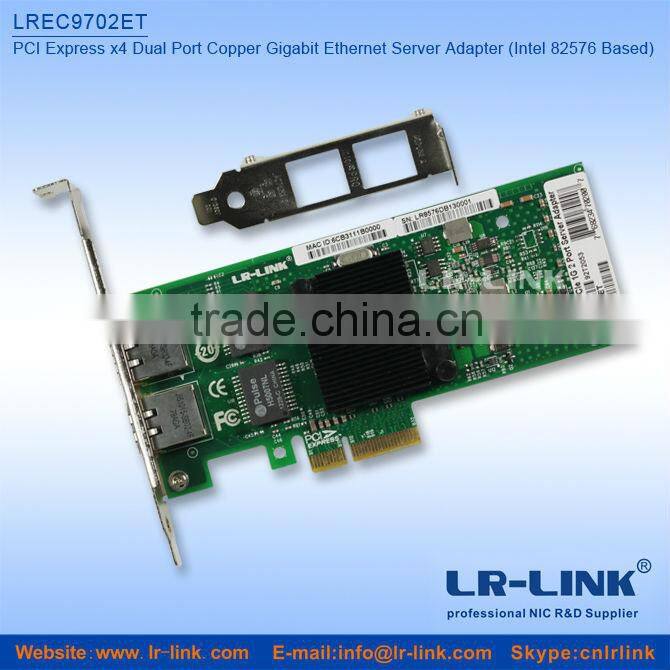

Ships with full-height bracket



installed, low-profile bracket added in package



Receive Side Scaling



Direct Cache Access (DCA) :The I/O device activates a pre-fetch engine in the CPU that loads the data into the CPU cache ahead of time, before use, eliminating cache misses and reducing CPU load







Network Operating Systems (NOS) Software Support



Windows*Vista* SP1



Windows Server* 2003 SP2



Windows* Unified Storage Solution 2003



Windows Server* 2008



Linux* Stable Kernel version 2.6



Linux* RHEL 4



Linux* RHEL 5



Linux* SLES 9
Linux* SLES 10



FreeBSD* 7.0



UEFI* 1.1



VMware ESX* 3.x






Advanced Software Features



•Adapter fault tolerance (AFT)



•Switch fault tolerance (SFT)



• Adaptive load balancing (ALB)



• Teaming support



• IEEE 802.3ad (link aggregation control protocol)
• Test switch configuration



•PCIe Hot Plug*/Active peripheral component interconnect (PCI)



•IEEE 802.1Q* VLANs



•IEEE 1588 Precision Time Control Protocol



•IEEE 802.3 2005* flow control support



•Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP))



•IEEE 802.1p*



• TCP segmentation/large send offload



•MSI-X supports Multiple Independent Queues



• Interrupt moderation



•IPv6 offloading:Checksum and segmentation capability extended to new standard packet type







Technical Features

Data rate supported per port:10/100/1000

Bus type PCI Express: 2.0 (2.5 GT/s)



Bus width:4-lane PCI Express, operable in x4, x8 and x16 slots



Interrupt levels: INTA, MSI, MSI-X



Controller-processor: Intel 82576



Typical power consumption             2.2W



Operating temperature                      0° C to 55° C (32° F to 131° F)



Storage temperature                         -40° C to 70° C(-40° F to 158° F)



Storage humidity                               90% non-condensing relative humidity at 35° C



LED indicators                                   LINK (solid) and ACTIVITY (blinking)



Physical  Dimensions





Length                                                16.74 cm (6.59 in)



Width                                                  6.81 cm (2.681 in)





Full-height end bracket                  12.00 cm (4.725 in)



Low-profile end bracket                  7.92 cm (3.12 in)



Test switch configuration               Tested with major switch original equipment manufac- turers (OEMs)

Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ETIntel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ETIntel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ETIntel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ET

Intel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ETIntel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ETIntel 82576 PCI-Ex4 Gigabit Dual Port Server Network card NIC,compatible with E1G42ET
