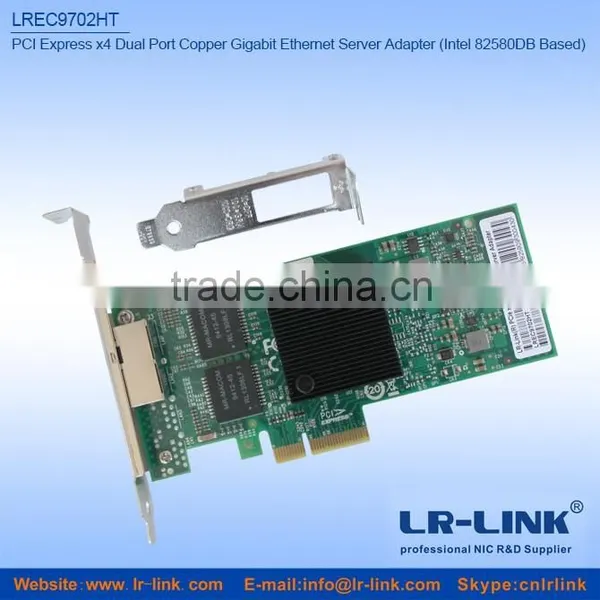

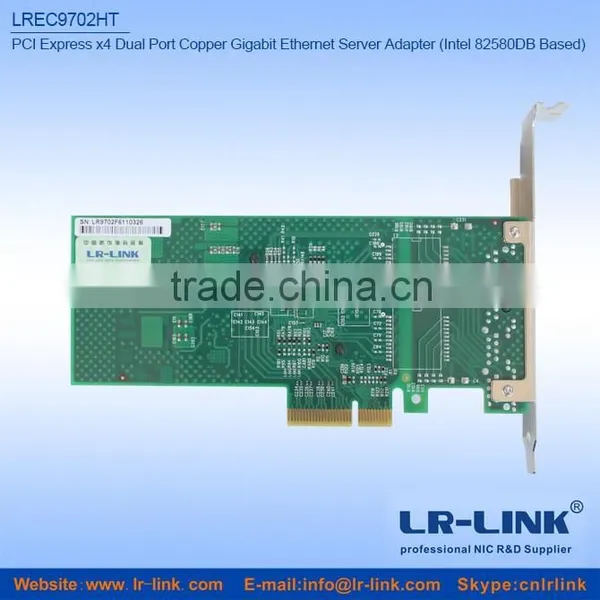

LREC9702HT PCI Express x4 Dual Copper Port Gigabit Server Adapter (Intel 82580DB Based)
Dual-port Gigabit Ethernet server adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments
Key Features

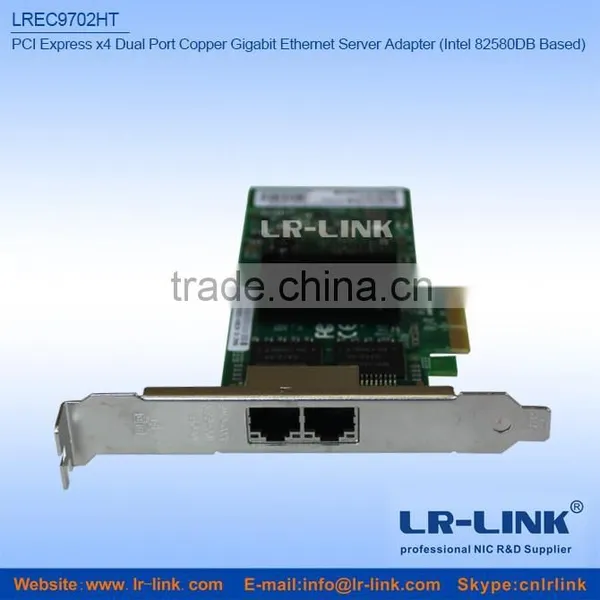

Two high-performing RJ45 Ethernet connections
Low power high performing bridgeless design supporting PCI Express* Gen 2.0 5 GT/s
Environmentally-friendly lead-free adapter
Hardware acceleration for TCP-IP and iSCSI
Hardware optimizations for virtualized servers
Reliable and proven Intel Gigabit Ethernet technology
Based on the new Intel 82580 Gigabit Ethernet Controller
The LREC9702HT Server Adapter is fourth generation of PCIe GbE adapter. This adapter showcases the industry’s first fully integrated dual-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the LREC9702HT Server Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface. Intel’s first eco-friendly halogen-free board com- bines low-power and cost for the best price/performance ratio in a dual-port solution available today.
Designed for Multi-Core Processors
This dual-port adapter provides high-performing, multi-port Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as MSI-X, and Low Latency Interrupts that help accelerate data across the platform, improving application response times.
The I/O technologies on a multi-core platform make use of the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application.
Intel I/O Acceleration Technology (Intel I/OAT) is a suite of features that improves data acceleration across the platform, from networking devices to the chipset and processors, which helps to improve system performance and application response times. The different features include MSI-X, Low-Latency Interrupts, Receive Side Scaling (RSS), and others. MSI-X helps in load-balancing I/O interrupts across multiple processor cores, and Low Latency Interrupts can provide certain data streams a non-modulated path directly to the application. RSS directs the interrupts to a specific processor core based on the application’s address.
Support for iSCSI
LR-LINK LREC9702HTserver adapters with native iSCSI initiators built into Microsoft® Windows®, Linux®, and VMware® ESX platforms provide a simple, dependable, cost-effective way to connect to LANs and iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet server adapters for iSCSI allows administrators to use a single initiator, TCP/IP stack, and set of management tools and IT policies. In addition, the LR-LINK LREC9702HT server adapter includes a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. For example, TCP segmentation offload, Receive side coalescing (RSC), and checksum offload capabilities help reduce processor utilization, increase throughput, and deliver exceptional iSCSI performance. The adapters are designed to flexibly scale workloads across multi-core processor–based systems. Finally, using native OS initiators, an LR-LINK LREC9702HT Server Adapter enables support for the CRC-32 digest instruction set included in the Intel Xeon® processor 5500 series, which improves transmission reliability and thus delivers an enterprise class iSCSI solution for the IT customer.
Optimized for Virtualization
The LR-LINK LREC9702HTServer Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput. These features include:
Virtual Machine Device Queues (VMDq)
Intel I/O Acceleration Technology (Intel I/OAT)
Virtual Machine Device queues (VMDq)
VMDq reduces I/O overhead on the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hypervisor, which directs them to their respective virtual machines. Relieving the hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels.
Reliable Performance
The server adapter includes a number of advanced features that enable it to provide industry-leading dual-port 10/100/1000Mbps performance and reliability.
PCIe v2.0 (5GT/s)
PCIe v2.0 (5GT/s) support enables customers to take full advantage of the 10/100/1000Mbps by providing a maximum of 2.0 Gbps bidirectional throughput per port on a dual-port card.
For today’s demanding virtualized data center environments, the new LR-LINK LREC9702HT Server Adapter delivers ultimate flexibility and scalability.
General Features
Intel 82580 Gigabit Ethernet Controller with
PCI Express V2.0 (5 GT/s) Support
Low-Profile and Standard height full
Remote boot support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
Multi-port design
Support for most network operating systems (NOS)
Intel PROSet Utility for Windows Device Manager
I/O Virtualization Features
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 8 queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)
Virtualization Features
VMDq
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Manageability Features
Advanced filtering capabilities
Preboot execution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
Wake-on-LAN support
iSCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol
Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug*/Active peripheral component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005* flow control support
Tx/Rx IP, TCP& UDP checksum offloading (IPv4, IPv6) capabilities control protocol (TCP), user datagram protocol
(UDP), Internet protocol (IP)
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading — Checksum and segmentation capability extended to new standard packet type
Adapter Product Features
Intel PROSet Utility
Plug and play specification support
Intel I/O Acceleration Technology (Intel I/OAT)

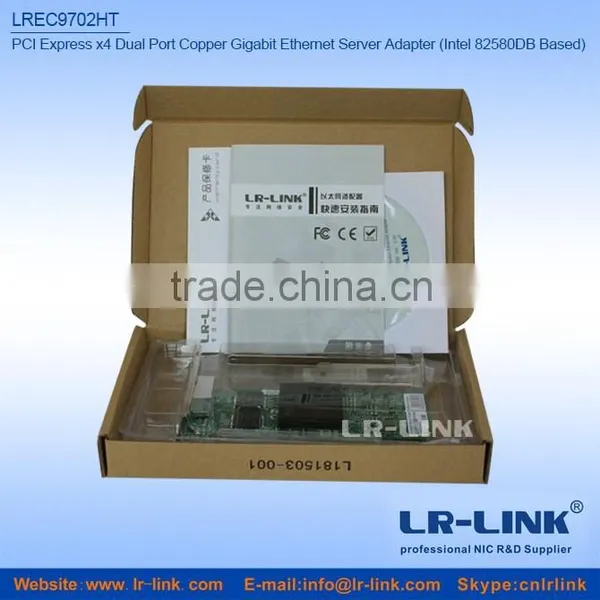

Ships with full-height bracket installed; low-profile bracket included in package
Technical Features
Data rate supported per port: 10/100/1000 Mbps
Bus type: PCI Express* 2.0 (5 GT/s))
Bus width: 4-lane PCI Express; operable in x4, x8 and x16 slots
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor: Intel 82580 Gigabit Ethernet Controller
Power consumption (typical): 6.0 W
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating temperature: 0 °C to 55 °C (32 °F to 131 °F)
Storage humidity: 90% non-condensing relative humidity at 35 °C
Network Operating Systems (NOS) Software Support
DOS, Novell ODI
Windows NT
Windows 2000
Windows XP 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows 8 32-bit(64-bit)
Windows 8.1 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
Windows Server 2012
Windows Server 2012 R2
Novell Netware 5.x,6.x
Linux 2.4 series kernel and 2.6.x and 3.x
FreeBSD 7.x or laster
OS 8 or laster
SCO Open Server
UnixWare / OpenUnix 8
Sun Solaris x86
OS Independent
VMware e
Ordering Information:
M/N |
Description |
LREC9702HT |
PCI Express x4 Dual Copper Port Gigabit Server Adapter (Intel 82580DB Based)
|
PS: The above details are only for reference,if there is any change,no inform will have.
