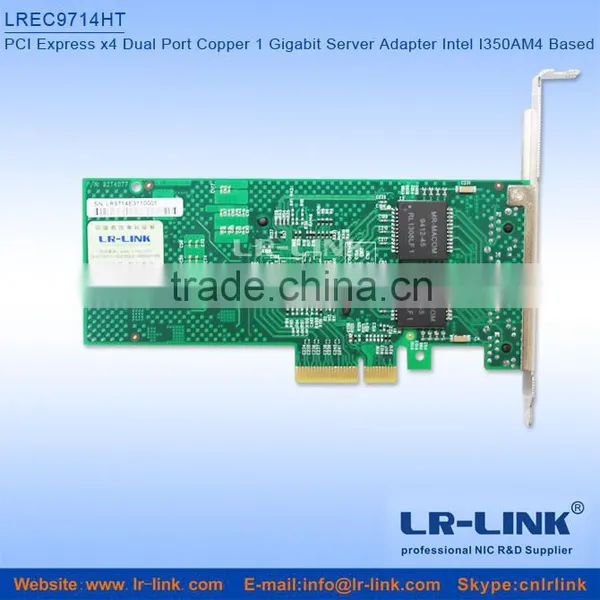

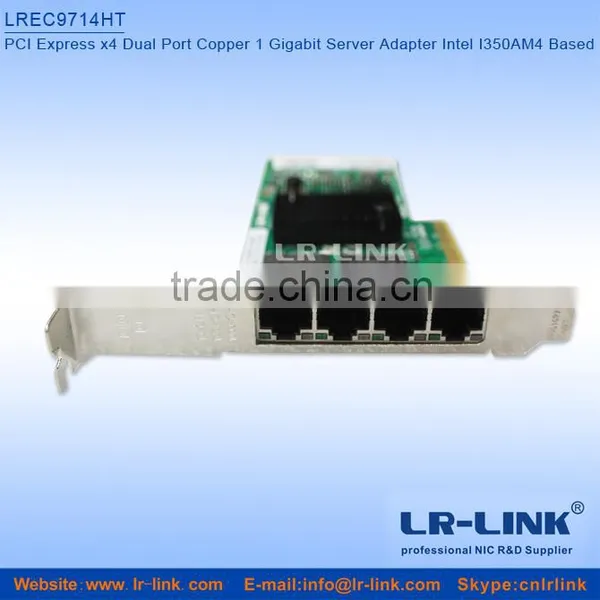

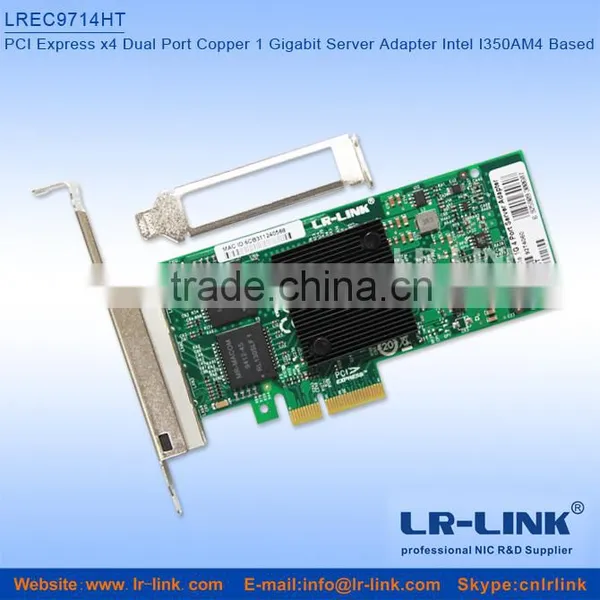

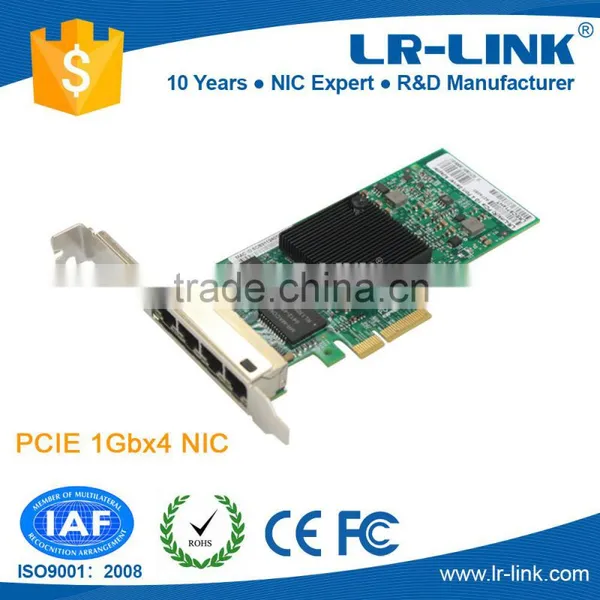

LREC9714HT Intel I350AM4 Chipset Gigabit RJ45 4 Port PCI Express Lan Card For Server
Quad-port Gigabit Ethernet 4 port lan card designed with performance enhancing features and new power management technologies
Key Features:
* Halogen-free quad-port Gigabit Ethernet adapters with copper interface options
* Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
* Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
* Scalable iSCSI performance delivering cost-effective SAN connectivity
* High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
* Reliable and proven Gigabit Ethernet technology from Intel Corporation
Nice Product Pictures Showing:
General Features:
Intel® Ethernet Controller I350
With PCI Express* V2.1 (5 GT/s) Support
Low-Profile and Standard height full
Ethernet Features:
IEEE* 802.3 auto-negotiation
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex
IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Automatic cross-over detection function (MDI/MDI-X)
IEEE 1588 protocol and 802.1AS implementation
I/O Virtualization Features:
Eight transmit (Tx) and receive (Rx) queue pairs per port
32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port
Support for PCI-SIG SR-IOV specification
Rx/Tx Round-Robin Scheduling
Traffic Isolation and Traffic Steering
VM to VM Packet forwarding (Packet Loopback)
MAC and VLAN anti-spoofing
IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Stateless Offloads/Performance Features:
TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Legacy and Message Signal Interrupt (MSI) Modes
Message Signal Interrupt Extension (MSI-X)
Intelligent interrupt generation
Receive Side Scaling (RSS) for Windows environment
Header/packet data split in receive
PCIe v2.1 TLP Processing Hint Requester
Descriptor ring management hardware for Transmit and Receive
Remote Boot Options:
Preboot eXecution Environment (PXE) flash interface support
Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware
Intel Boot Agent software:
Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI
Adapter Product Features:
Plug and play specification support
Intel® I/O Acceleration Technology (Intel® I/OAT)

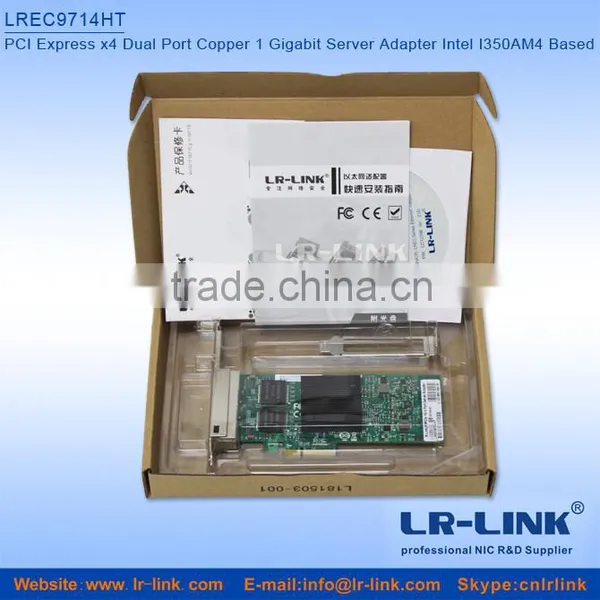

Ships with full-height bracket installed; low-profile bracket included in package
The 4 Port PCIe Lan Card Technical Features:
| Data rate supported per port | 1000 Mbps |
| Bus type | PCI Express* 2.1 (5 GT/s)) |
| Bus width | 4-lane PCI Express; operable in x4, x8 and x16 slots |
| Interrupt levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| Controller-processor | Intel Ethernet Controller I350 |
| Power consumption (typical) | 6.0 W |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage humidity | 90% non-condensing relative humidity at 35 °C |
Ordering Information:
M/N |
Description |
|
LREC9714HT
|
PCI Express x4 Quad Port RJ45 Gigabit Lan Card For Server (Intel I350 Based) |
PS: The above details is just for reference,if there is any change,no inform will have.
