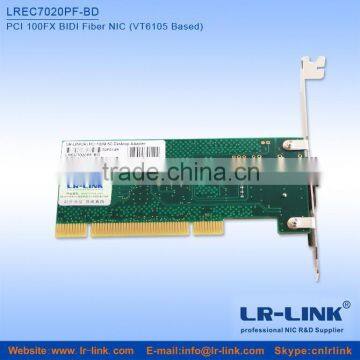

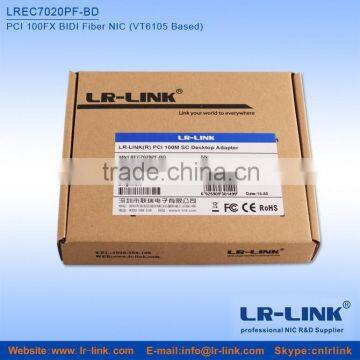

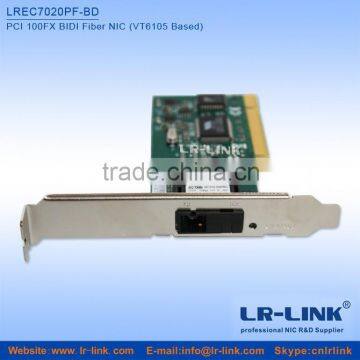

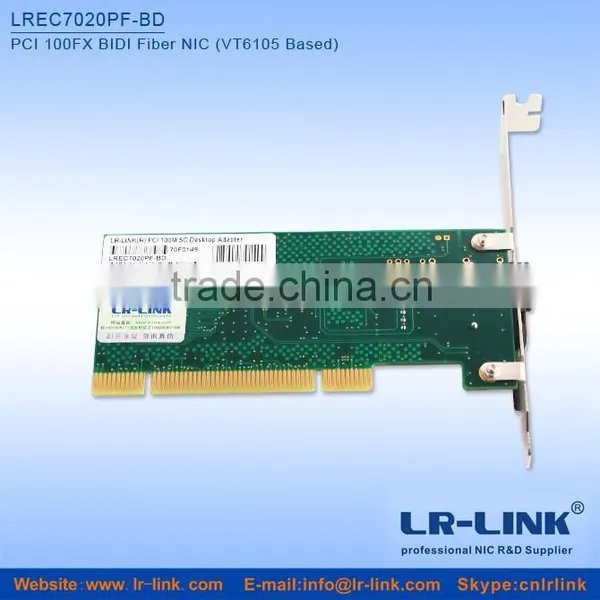

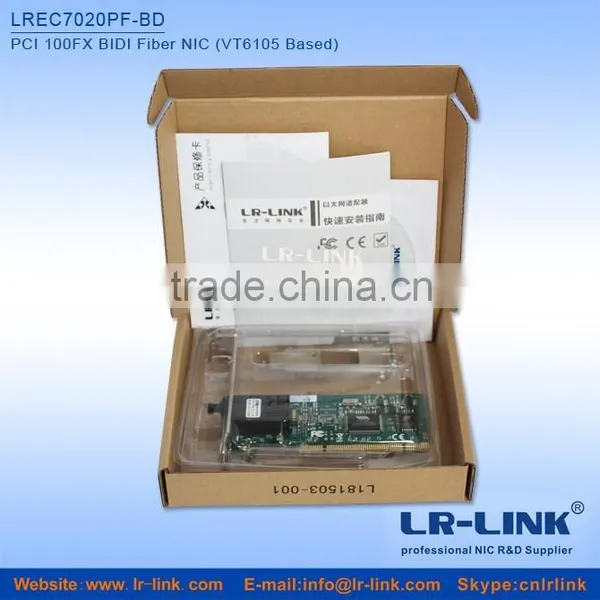

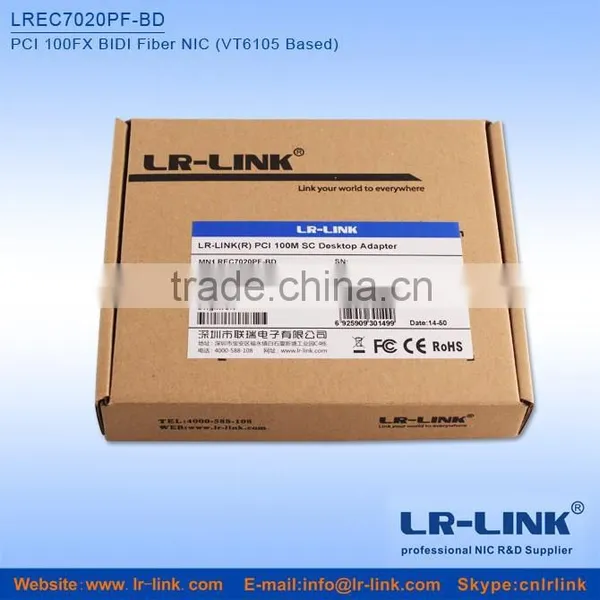

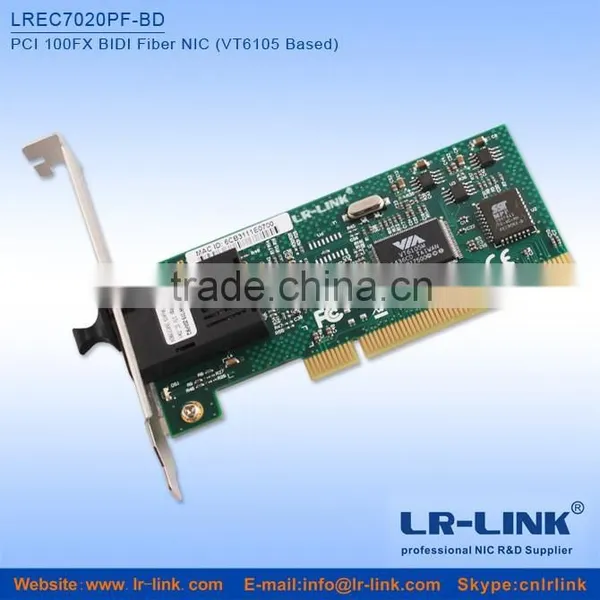

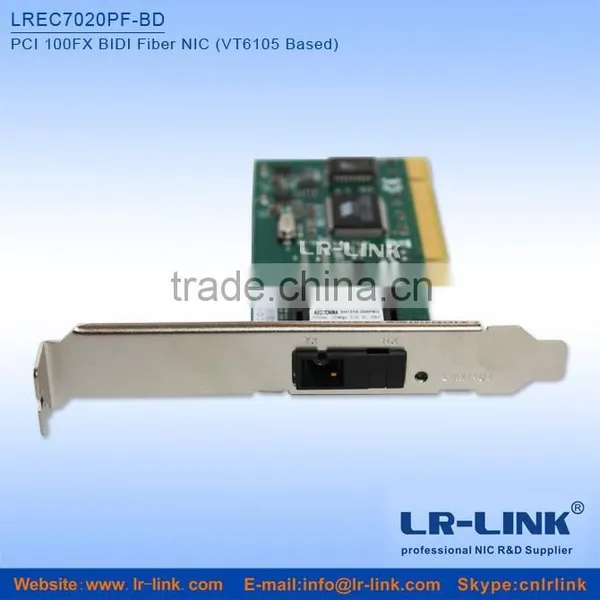

LR-LINK LREC7020PF-BD VIA VT6105m PCI 100Mbps Fiber Optic Network Ethernet NIC Card Multimode Fibre Network Interface Card NIC (full-height bracket and Low profile bracket)

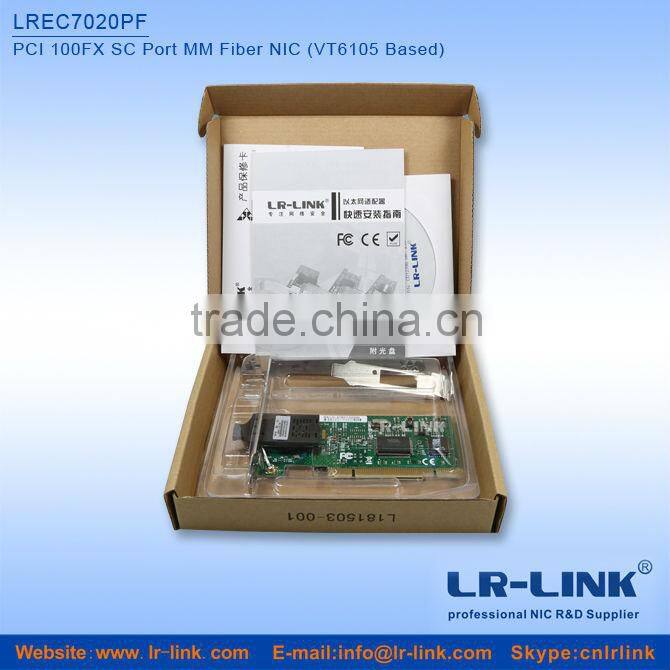

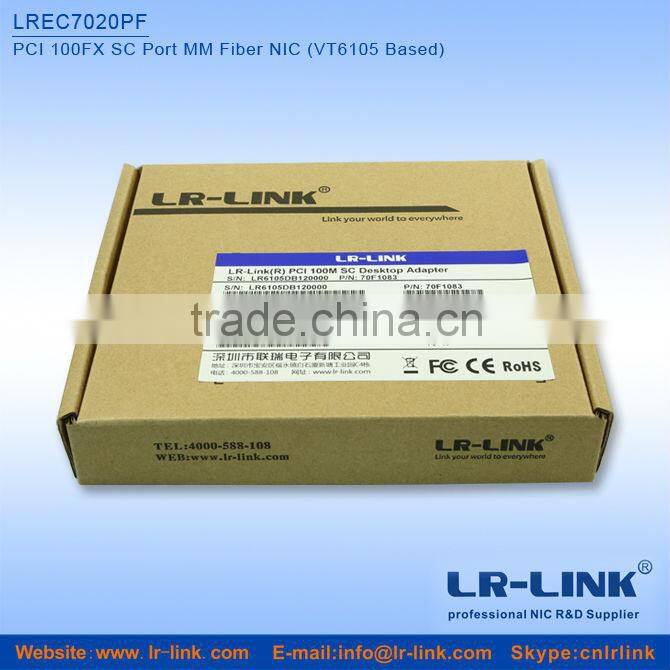

LREC7020PF PCI 100FX SC Port MM Fiber NIC (VT6105 Based)
Descriptions:
LREC7020PF-BD is designed by Shenzhen Lianrui Electronics CO.,LTD(LR-LINK).It is a 100Mbps managed PCI bus fiber nic.The LREC7020PF can supply reliable fiber optic connections for user’s when surf the fast ethernet internet , particularly it is suitable access the distance beyond the five lines access distance (100m) of the place.It can completely replace the ethernet card external photoelectric conversion of the network structure of the commonly used RJ-45, to provide users with reliable fiber-to-the-home and fiber-to-desktop solutions. Users can select the optical interface parameters (including connectors, single / multi-mode fiber, working distance) according to the distance..
Features:
Based on Taiwan VIA VT6105M controller
100M 1*9 moudle,MM or SM available
Both full-height and low profile for small form factors
Support PXE Boot Rom
compliant with IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 ethernet standards
100Mbps fast ethernet ,Full duplex or half-duplex,reach 200Mbps in full duplex
Supports 32-bit PCI 2.2 buses
support IEEE 802.3x Flow Control enabled with full duplex operation, allowing enhanced operation when directly connected to a switch.
support IP Unicast broadcast and multicast address filtering mechanism
support IEEE 802.1p Tagging supported,ensure the sensive data can reach on time
support IEEE 802.1Q VLAN tagging
support GVRP VLAN registration protocol
suppport TCP/IP, CPU Task Offload reduces host CPU use
advanced management,support DMI 2.0 and ACPI 1.0
Advantages:
Use the double copper thickness,5OZ heavy gold plate to ensure the good reflect and heat dispersion
Optimize designation, improved the distribution line and integral network arrangement
Use the high power control,improved the high temperature of IC problem
Add the PXE BootRom controller and PXE
Applications
10/100Mbps FTTD Network
10/100Mbps Industry Ethernet
Other fiber applications AS
NOS Software Support:
Windows XP 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows 8 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows Server 2003 64-bit
Windows ME/95/98/98SE/NT
Windows CE net5.0/6.0
Windows Server 2000
DOS
Ubuntu pre 8.04/9.04/ 9.10/10.04
SuSE Linux Enterprise 11,
Fedora Core 1.0 Linux /2.0/3.0/4.0/5.0/6.0/7.0/8.0/11.0
Kernel 2.6.19.X,
OpenUNIX 8.0 (Caldera)/openSuSE Linux 10.3 & earlier versions,
Mandrake/Mandriva pre-2006/2006/2007/2007.1/2008 Linux
Red Flag Linux, Red Hat Linux
FreeBSD versions 4.x, 5.x, 6.x and 7.0.
UNIX Solaris 8, 19 and 10 x86 and and UNIX Solaris 10 x64 editions
UnixWare 7.x
Sun Solaris x86
Environmental Parameters:
Operating Temperature:0°C--50°C
Storage Temperature: 5°C--55°C
Humidity Range Operating: 5%--95%, non-condensing
Power: 2W
LED: green Link/Activity,orange and green color indicated
Size:120mm×53mm
Ordering Information:
M/N | Description | Notes |
LREC7020PF-BD | PCI 100FX BIDI MM Fiber NIC (VT6105 Based) | wavelength 1310nm,distance 2Km |
PS: The above details is just for reference,if there is any change,no inform will have.
