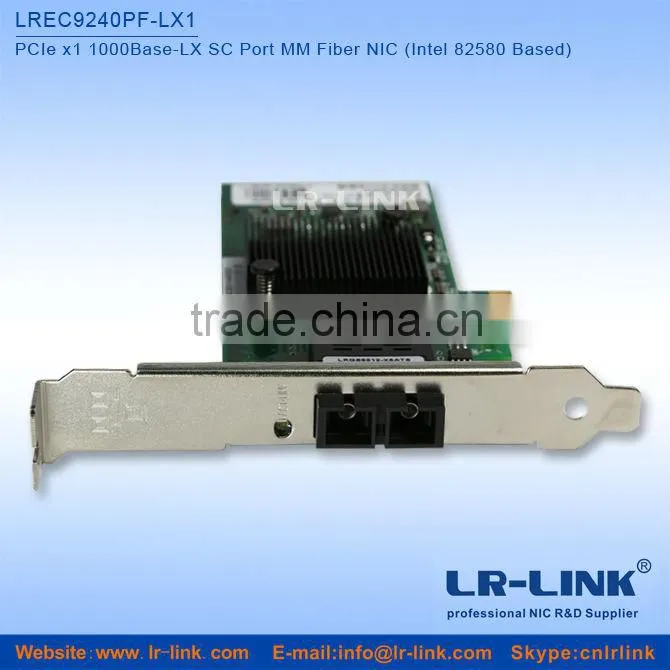

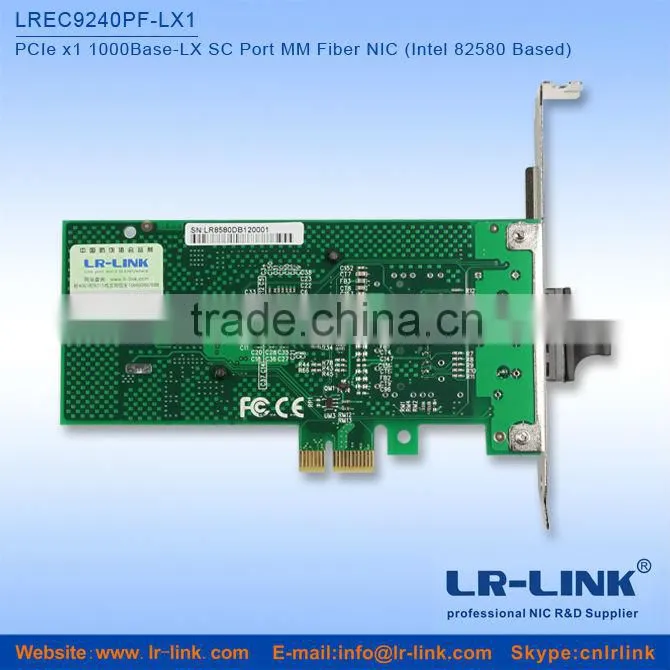

LREC9240PF-LX PCIe x1 1000Base-SX SC Port SM Optical NIC Network Card(Intel 82580 Based)
Descriptions:
LREC9240PF-LX Server Adapter is LR-LINK’s fourth generation of PCIe GbE adapter.
This adapter provides a smaller footprint and lower power dissipation. In addition,
the LREC9240PF-LX Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0
interface.
General Features
Intel 82580 Gigabit Ethernet Controller
PCI Express* V2.0 (5 GT/s) Support
Low-Profile and Standard height full
remote boot support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots
Multi-port design
Support for most network operating systems (NOS)
I/O Virtualization Features
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 8 queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)
Virtualization Features
VMDq
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Manageability Features
Advanced filtering capabilities
Preboot execution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
Wake-on-LAN support
iSCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol
Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
PCIe Hot Plug*/Active; peripheral component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005* flow control support
Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol
(UDP), Internet protocol (IP)
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading — Checksum and segmentation capability extended to new standard packet type
Adapter Product Features
Plug and play specification support
Intel I/O Acceleration Technology (Intel I/OAT)

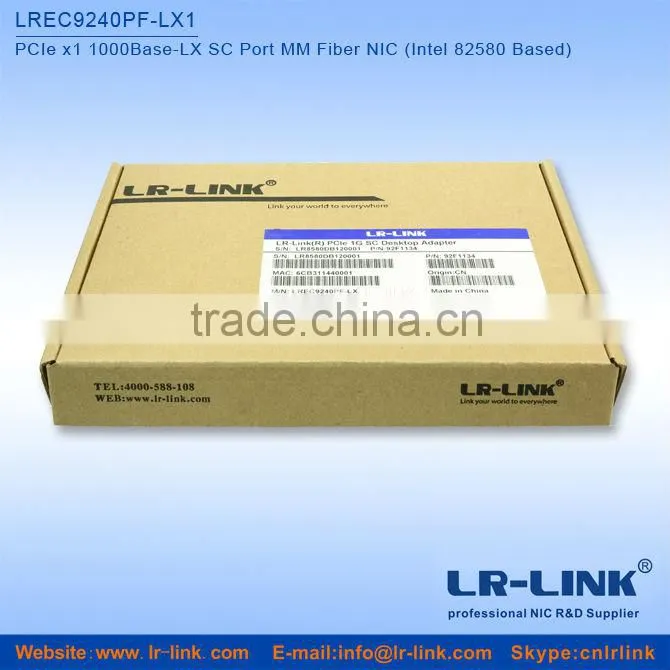

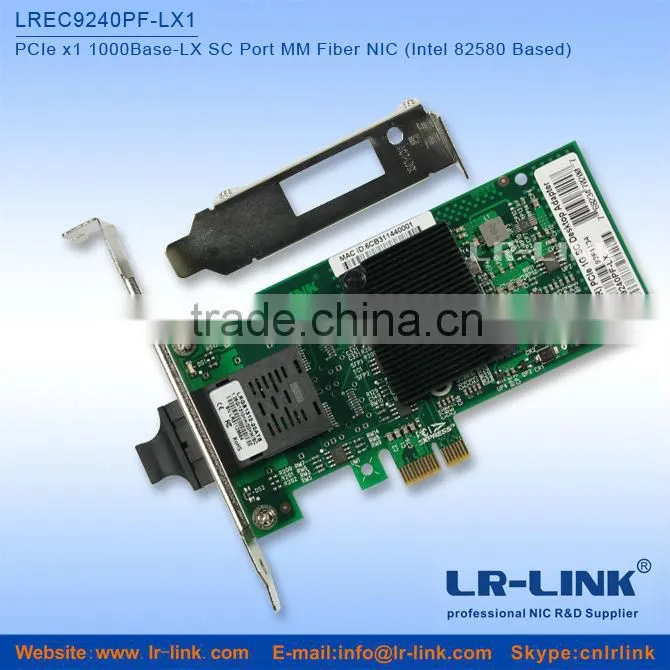

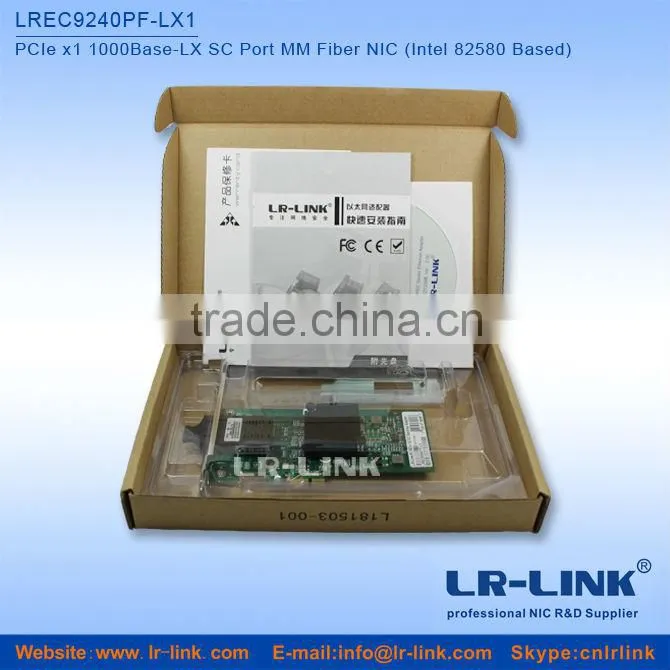

Ships with full-height bracket installed; low-profile bracket included in package
Technical Features
Data rate supported per port: 1000 Mbps
Bus type: PCI Express* 2.1 (5 GT/s))
Bus width: 1-lane PCI Express; operable in x1,x4, x8 and x16 slots
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor: Intel 82580 Gigabit Ethernet Controller
Power consumption (typical): 6.0 W
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating temperature :0 °C to 55 °C (32 °F to 131 °F)
Storage humidity: 90% non-condensing relative humidity at 35 °C
Network Operating Systems (NOS) Software Support
*Windows XP
*Windows CE/5.0
*Windows Server 2000
*Windows 7 32-bit(64-bit)
*Windows Vista 32-bit(64-bit)
*Windows Server 2003 32-bit(64-bit)
*Windows Server 2008 32-bit(64-bit)
*Windows Server 2008 R2 32-bit(64-bit)
*NetWare NetWare 5.0/5.1/6.0/
*DOS
*Novell ODI
*Linux 2.4 series kernel and 2.6.x/3.x
*FreeBSD with the 9.x kernel.
*OpenUNIX 8.0 (Caldera), UnixWare 7.x
*Sun Solaris x86
