Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Glass, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380V | Power | 2-11KW | |
| Place of Origin | Jiangsu, China | Brand Name | Hyford | |
| Model Number | DGCF Series | Dimension(L*W*H) | According customer requirments | |
| Weight | 2000-12000kg | Certification | ISO, SGS, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Small juice filling machine
Small juice filling machine contains washing, filling and capping with complete automation. It is suitable for filling all kinds of carbonated drinks such as coco cola, soda water etc into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Small juice filling machine
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity (B/h 500ml) | Main Motor Power (KW) |
| DGCF18-18-6 | 18 | 18 | 6 | 5000 | 3.5 |
| DGCF24-24-8 | 24 | 24 | 8 | 8000 | 3.8 |
| DGCF32-32-10 | 32 | 32 | 10 | 12000 | 5.5 |
| DGCF40-40-10 | 40 | 40 | 10 | 15000 | 7.5 |
| DGCF50-50-12 | 50 | 50 | 12 | 18000 | 12 |
| DGCF60-60-15 | 60 | 60 | 15 | 24000 | 13.5 |
| DGCF72-72-16 | 72 | 72 | 16 | 28000 | 15 |
(1)Air conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.
(2)Clamp transferring technology varied bottle types.
(3)With little abrasion. Stable Transferring. Easy to change bottles.
(4)With ring type pressure bearing hydraulic cylinder.
(5)With high filling speed and exact liquid level.
(6)Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
(7)The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. Easy to operate and maintain.
(8)PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI, etc

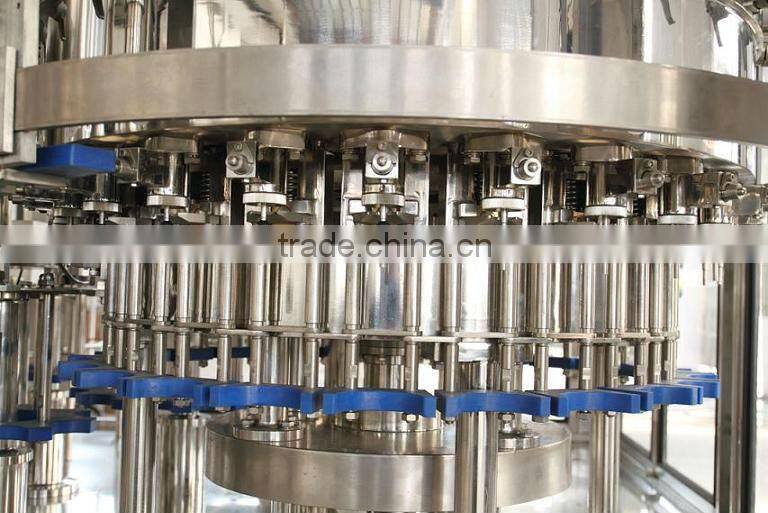

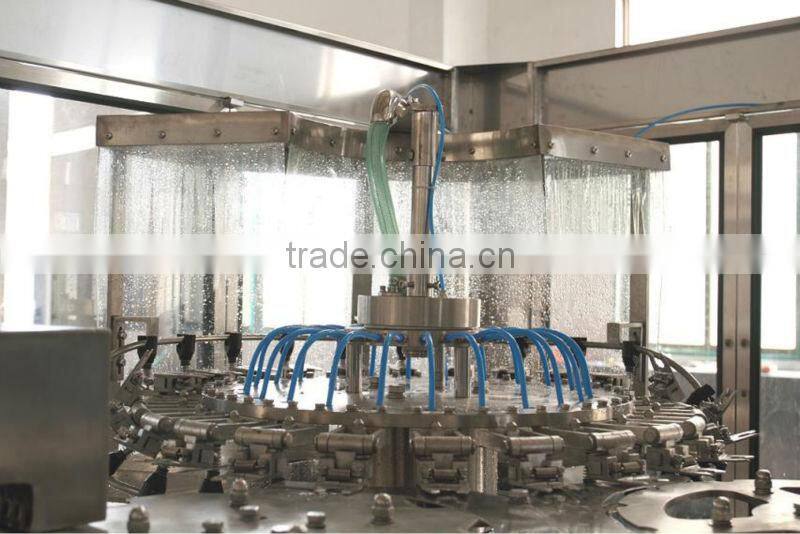

Washing part of small juice filling machine

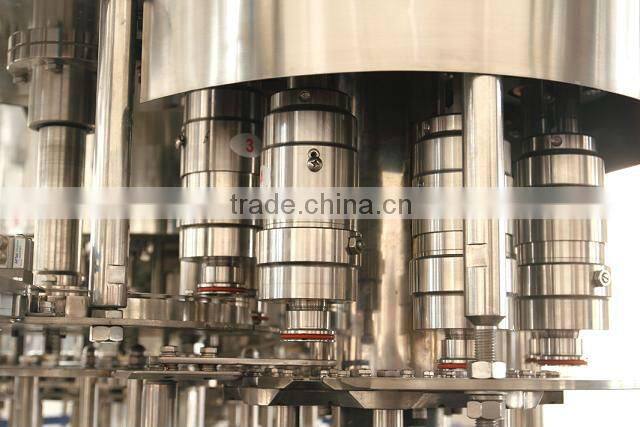

Filling part

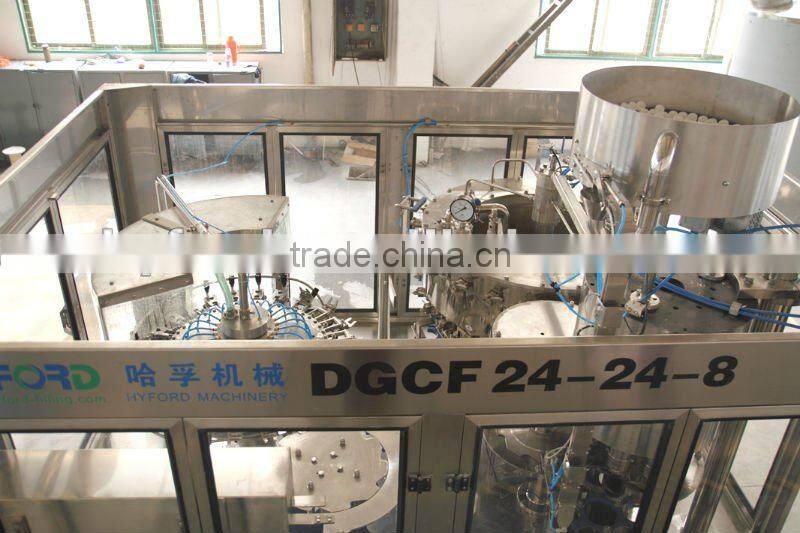

Capping part

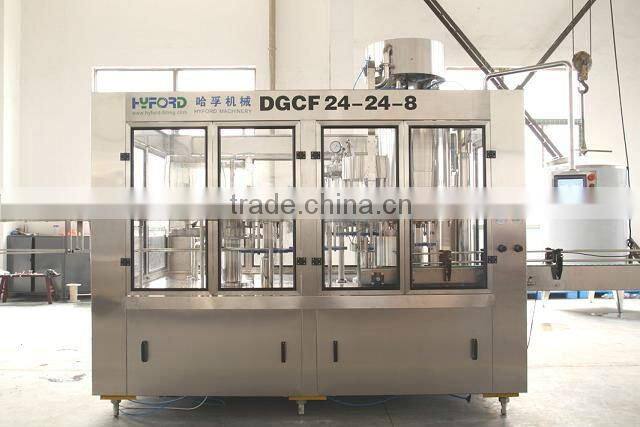

Whole machine

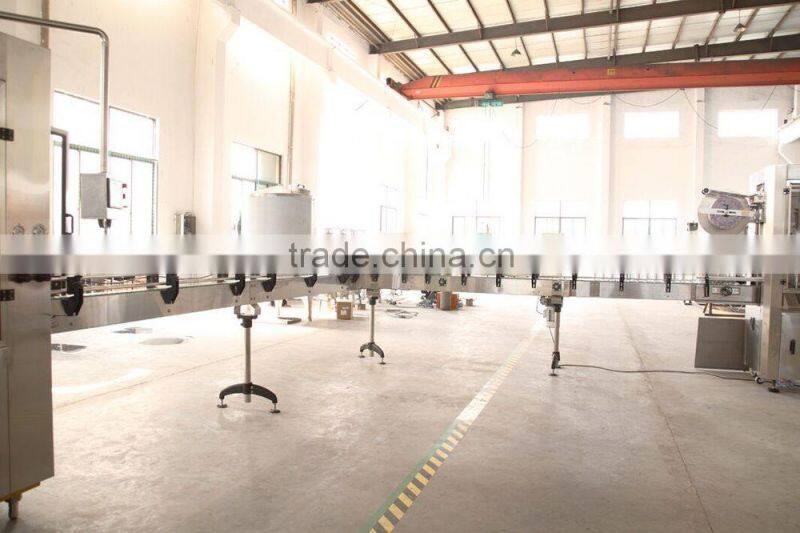

Bottle Conveyor
We will install the machine for you ,and train your employees to use the machine well.
We provide one year warranty with free spare parts.
