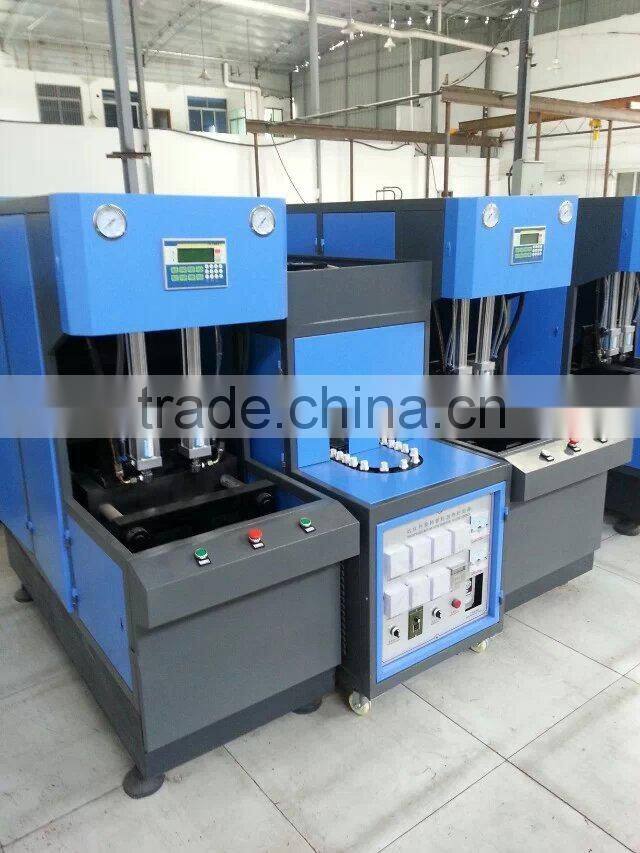

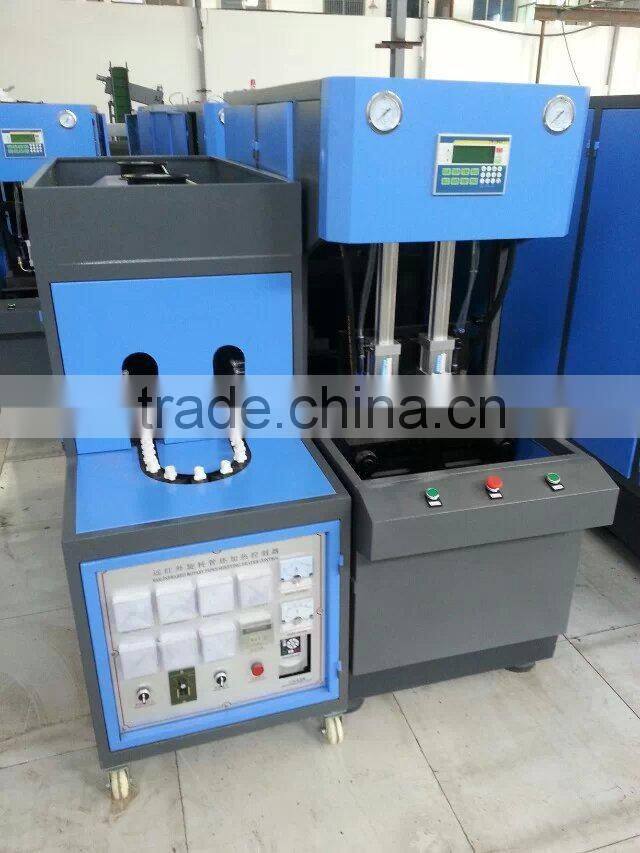

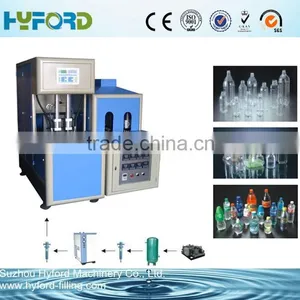

500ML, 550ML, 600ML, 750ML, 1L, 1.5L PET blowing bottle molding machine
500ML, 550ML, 600ML, 750ML, 1L, 1.5L PET blowing bottle molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1)High safety. high speed with high efficiency.
2)Manual saving, one man is enough for operation the machine.
3)Stable performing with easy maintaining.
4)Imported PLC controlling and man-machine interface computer.
5)Japan Omron inspection sensor.
6)Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7)Power saving design that can increase your profits.
8)Segregate type air controlling system, which is designed for avoiding waste pollution.
9)Perfet after-sale service. We can offer you spare parts for free at the first year.
General Information |
HF-1 one machine and one heater |
HF-2 two machines and one heater |
Clamping Force |
10T |
|
Clamping Stroke |
160mm |
|
Max. Stretching Stroke |
360mm |
|
Number of Cavities |
2 Cavity |
2 Cavity 2Pcs |
Theoretical Output |
0.01-1.5L:660-880BPH |
0.01-1.5L:1000-1600BPH |
Max .Mould Thickness |
220mm |
|
Mould plate size |
470x350m |
|
Voltage Standard |
380v/3PH/50Hz or special order |
|
Total Power(Full Loaded) |
3-10KW |
5-15KW |
Min air compressor |
1.0m3/min 3.0Mpa |
1.6m3/min 3.0Mpa |
Net dimension & Weight (L*W*H) | ||
Blow Molding Machine |
155×65×170cm |
155×65×170cm |
Pre-heater |
180×70×140cm |
|
Net Weight |
0.88T |
1.6T |
Container | |
Container Volume |
0.1-1.5L |
Neck Diameter Range |
8-60mm |
Container Diameter |
20-160mm |
Container Height |
10-360mm |
