Wholesale rp sma female to IPEX plug RG1.13 coaxial pigtail cable
The advantage of rp sma female to IPEX plug RG1.13 coaxial pigtail cable
1,Rich experience , proven technique
2,Reasonable price
3,Wider frequency
4,OEM/ODM available
5,Perfession servie
6,ISO:9001 certification
7,1 year guarantee
8,Fast delivery time
9,R&D
10,Huge Capacity
Specifications of rp sma female to IPEX plug RG1.13 coaxial pigtail cable
SSmall ter
Cable Type(Name) |
IPEX RPSMA female RG1.13 cable |
|
Cable Length |
150mm (Customized Length Available) |
|
Operating Frequency |
DC0-3GHz |
|
VSWR |
≤1.20 @DC-3GHz |
|
Durability |
≥500 cycles |
|
Waterproof Rate |
IP68 |
|
Operating Temperature |
45 °C-85 °C |
|
Parts Name |
Material |
Plating |
Body |
Brass |
Ni |
Insulator |
PTFE |
— |
Inner Conductor |
Phosphor Bronze |
Au |
Coupling Nut |
Brass |
Ni |
Ferule |
Annealed Copper |
Ni |
|
Bandwidth 100MHZ | ||
Product Name |
RF pigtail cable with Connector |
Cable |
RG1.13, RG178, RG1.32, RG0.81 |
Connector |
RP-SMA female-Ipex (Other Available Connector: MCS/MMCX/GSC/MCD/MCG and etc) |
Conductor |
Bare copper |
Jacket |
PTFE |
Gender |
Male to male, Male to female, female to female can be customized) |
Application |
Mobile, Cellphone, Wifi, Blutooth device, PC, GSM, GPRS, GPS |
Frequency |
DC 0 to 6GHz (VSWR: 1.5Max.) |

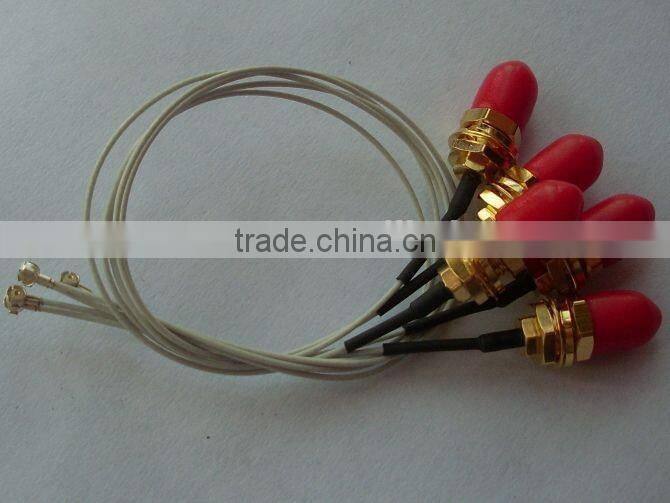

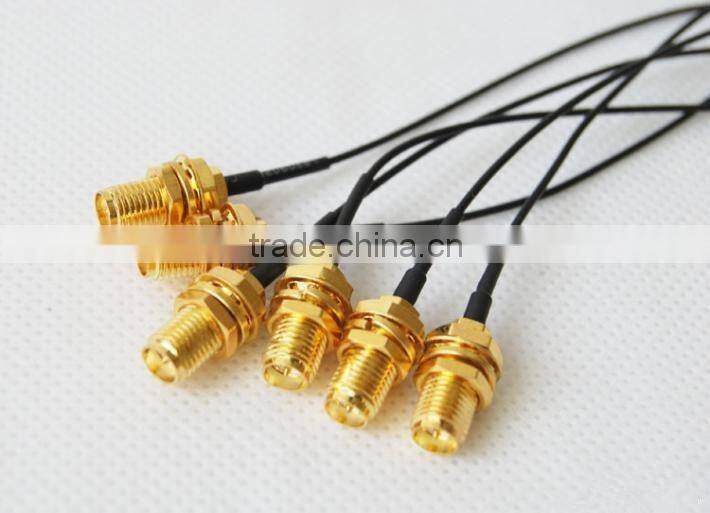

The appearance of rp sma female to IPEX plug RG1.13 coaxial pigtail cable
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
