Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Assembly Line Robots With Integrated Dispensing Solutions

Assembly Line Robots With Integrated Dispensing Solutions

Name: Assembly Line Robots With Integrated Dispensing Solutions
Brand: tianhao dispensing
SKU: 115380741

Assembly Line Robots With Integrated Dispensing Solutions thumbnail-1

Assembly Line Robots With Integrated Dispensing Solutions thumbnail-2

Assembly Line Robots With Integrated Dispensing Solutions thumbnail-3

Assembly Line Robots With Integrated Dispensing Solutions photo-1

Assembly Line Robots With Integrated Dispensing Solutions photo-2

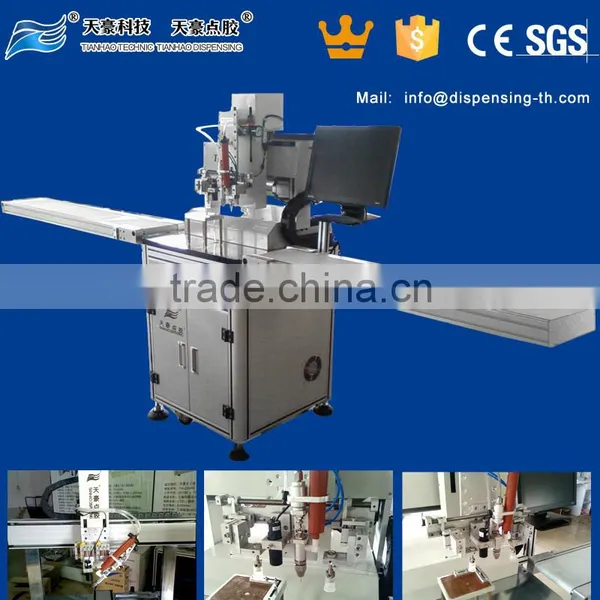

Assembly Line Robots With Integrated Dispensing Solutions photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

tianhao dispensing

Model Number:

TH-206H-Z1

After-sales Service Provided:

Overseas service center available

Contact Supplier Request Quote Chat Now

Cixi Tianhao Electric Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name tianhao dispensing

Model Number TH-206H-Z1

After-sales Service Provided Overseas service center available

Condition New

Product Description

Product Application

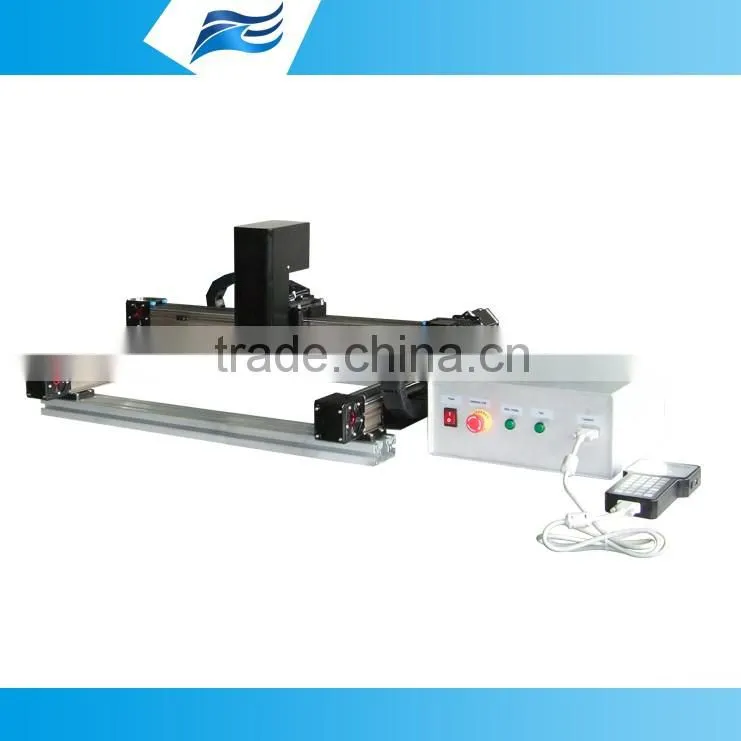

The Gantry-Cartesian robotic systems can be easily integrated with in-line industrial automation. Gantry industrial robots have all their axes above the work area making them ideal for large dispensing applications and jobs requiring a fourth axis such as when using a spray valve.

Applied Industry
Industries Aerospace
Automotive,Electronics
General Manufacturing
Medical Device
Alternative Energy
Application
Bonding
Dispensing-cold material and adhesive
Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue
Gasketing-silicon,Silicone adhesive,Silver cream.grease
Gluing-liquid adhesive
Filling-oil,ab glue,Epoxy, resin
Coating-uv glue,Anaerobic adhesive
Sealing-sealants
Soldering-solder paste,solid
Spraying-low viscosity material,paint

SPECIFICATIONS FOR Assembly line robot
Main parameters	model	Gantry-Cartesian robotic systems
	X/Y/Z working range	customized
	XY/Z Maximum Load	XY: 15kgs Z: 2-3kg
	XY/Z Speed	0.1-800/500 mm/Axis
	Repetitiveness	±0.02mm/Axis
software	Motion Control	Teach Pendant
	Data memory capacity	999 programs by CF card, PC STORAGE&USB
	Patterns	Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Hardware	Drive System	Precision micro-servo motor
	Main pump	Precision screw/High-Precision Linear Guides
	Display way	LCD display

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications

Detailed Images

Machine Parts

Main Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	116 (L) * 106 (W) * 63 (D)
Weight	62kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
