Assembly Line Robots With Glue Gantry Dispensing

Assembly Line Robots With Glue Gantry Dispensing photo-1

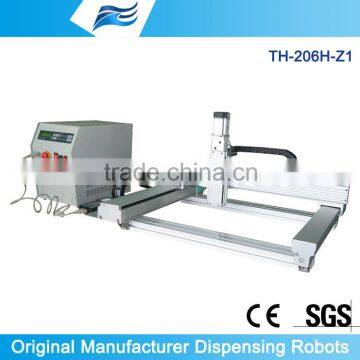

Assembly Line Robots With Glue Gantry Dispensing photo-2
Assembly Line Robots With Glue Gantry Dispensing photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
tianhao dispensing
Model Number:
TH-206H-Z1
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name tianhao dispensing
Model Number TH-206H-Z1
Condition New
After-sales Service Provided Overseas service center available
Product Description

Product Application

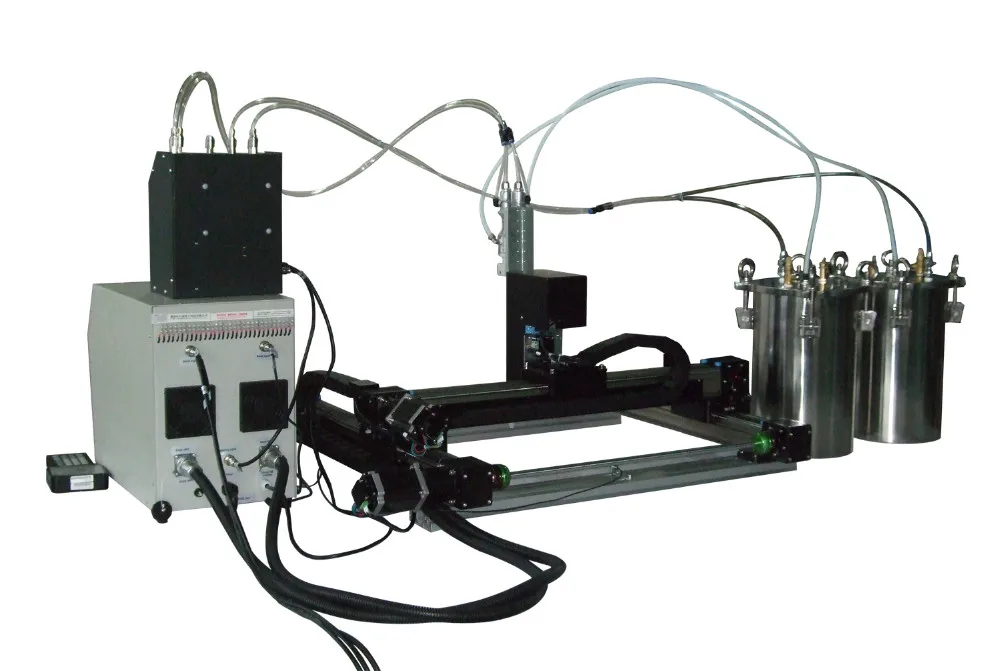

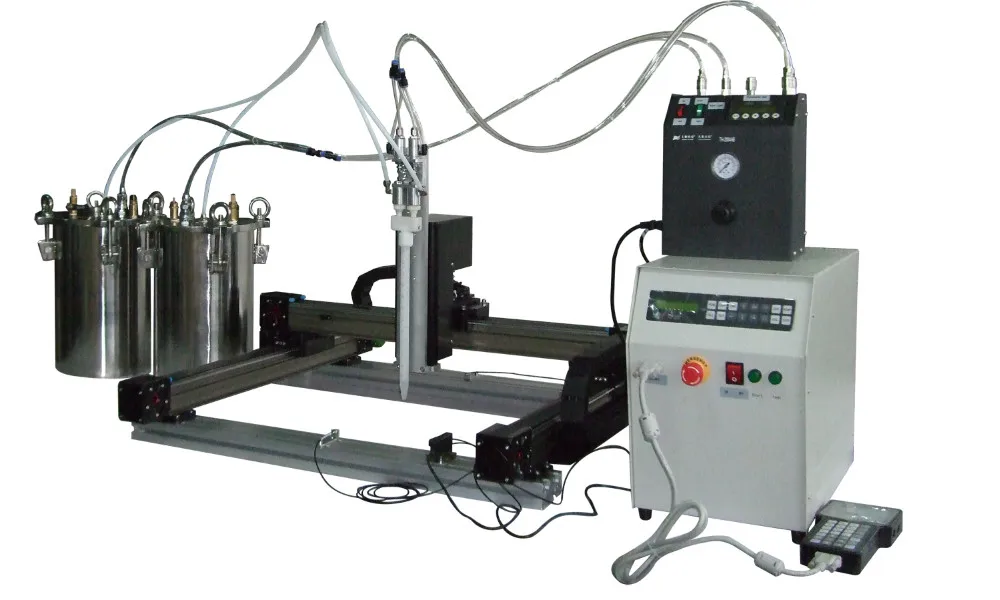

The Gantry-Cartesian robotic systems can be easily integrated with in-line industrial automation. Gantry industrial robots have all their axes above the work area making them ideal for large dispensing applications and jobs requiring a fourth axis such as when using a spray valve.

Applied Industry
Industries Aerospace
Automotive,Electronics
General Manufacturing
Medical Device
Alternative Energy
Application
Bonding
Dispensing-cold material and adhesive
Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue
Gasketing-silicon,Silicone adhesive,Silver cream.grease
Gluing-liquid adhesive
Filling-oil,ab glue,Epoxy, resin
Coating-uv glue,Anaerobic adhesive
Sealing-sealants
Soldering-solder paste,solid
Spraying-low viscosity material,paint

SPECIFICATIONS FOR Assembly line robot

Main parameters
 model
Gantry-Cartesian robotic systems
X/Y/Z working range
customized
XY/Z Maximum Load
XY: 15kgs Z: 2-3kg
XY/Z Speed
0.1-800/500 mm/Axis
Repetitiveness
±0.02mm/Axis

software
Motion Control
Teach Pendant
Data memory capacity
999 programs by CF card, PC STORAGE&USB
Patterns
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting

Hardware
Drive System
Precision micro-servo motor
Main pump
Precision screw/High-Precision Linear Guides
Display way
LCD display

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

Name: Bliwing Cylinder


Main Features


Machine Parts


Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
116 (L) * 106 (W) * 63 (D)
Weight
62kgs



Packaging Details

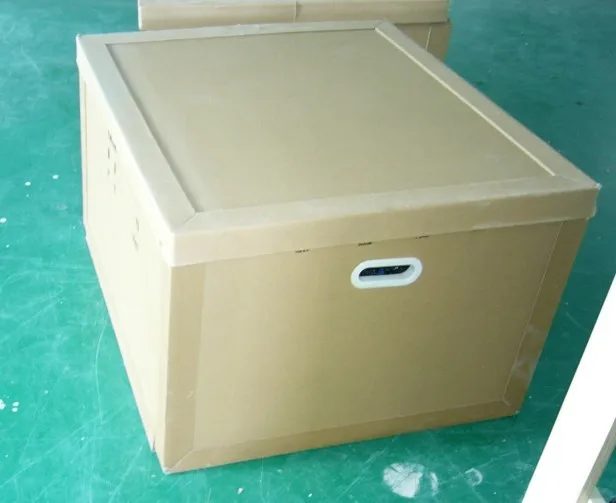

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
