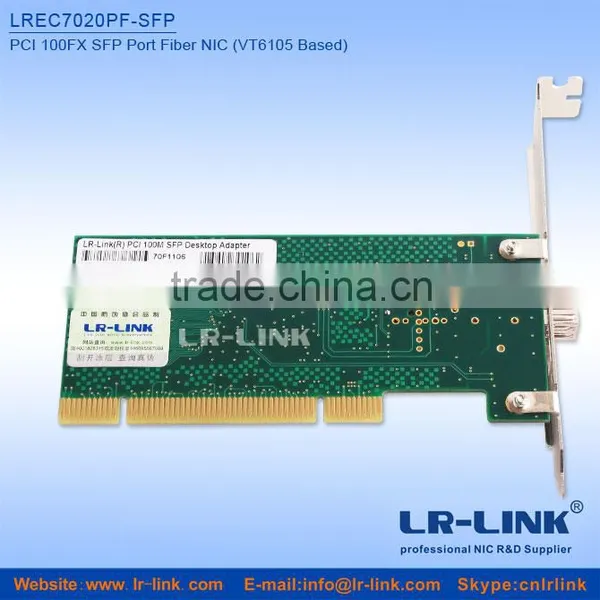

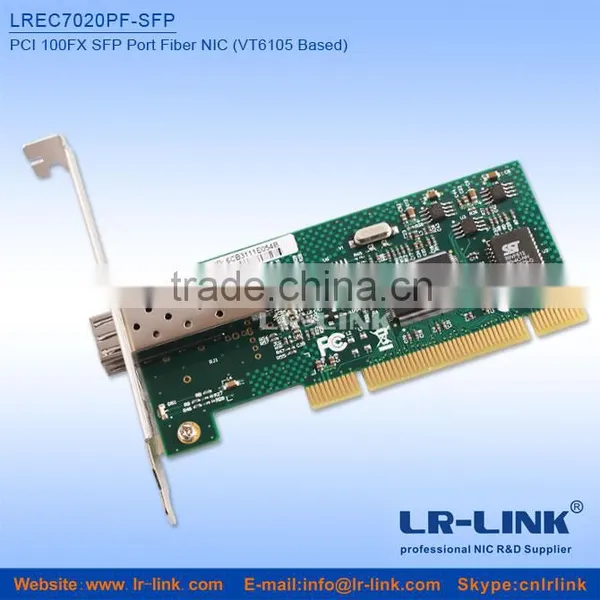

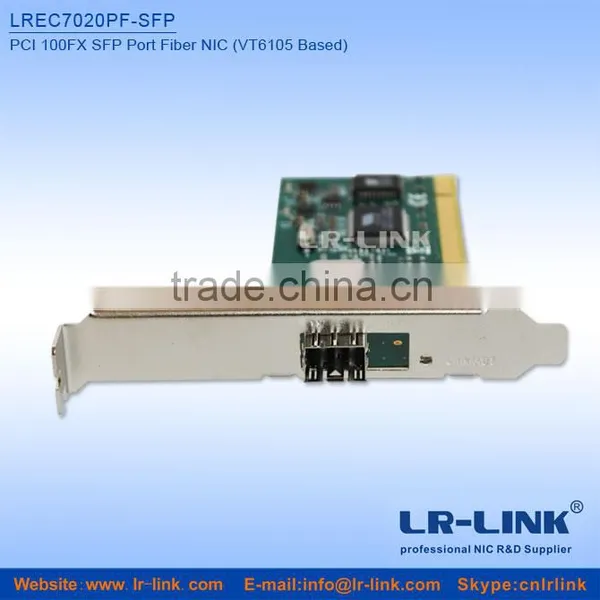

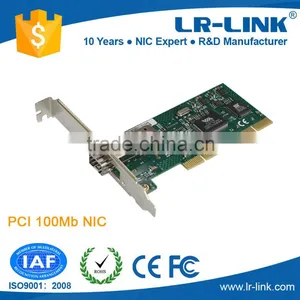

PCI 100FX SFP Port Fiber Network Interface Card (VT6105 Based)
LREC7020PF-SFP is a typical model of 1000base-SX/LX network interface card, based on VIA VT6105 Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This new Ethernet adapter builds on LR-LINK’s 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers’ unanimous recognition.
The LREC7020PF-SFP can supply reliable fiber optic connections for users when surf the fast Ethernet internet, particularly it is suitable access the distance beyond the five lines access distance (100m) of the place. It can completely replace the Ethernet card external photoelectric conversion of the network structure of the commonly used RJ-45, to provide users with reliable fiber-to-the-home and fiber-to-desktop solutions. Users can select the optical interface parameters (including connectors, single / multi-mode fiber, working distance) according to the distance.
Specifications
Connector |
SC,ST or LC (Fiber) SFP |
IEEE standard/network topology |
100BASE-SX/LX |
|
Cabling Distance
|
100BASE-SX: 10Km 100BASE-LX: 20Km |
Data rate supported per port |
100Mbps |
Bus Type |
32bit PCI Bus |
Hardware certifications |
FCC , CE , RoSH |
Controller - processor |
VIA VT6105 |
Power consumption (active-typical) |
2W |
Operating temperature |
0℃ to 55℃ (32℉ to 131℉) |
Storage temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
Storage humidity |
90% non-condensing relative humidity at 35℃ |
Connect speed LED Indicators |
Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
Full-height end bracket |
12.07 cm ( 4.755 inches) |
Low-profile end bracket |
8 cm (3.15 inches) |
Single-port PCI 100BASE-SX/LX
High-performing design supporting PCI
According to customer's demands, we can select SC, LC, ST, FC and SFP fiber interface
Both full-height and low profile for small form factors
Support PXE Boot Rom
Compliant with IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 ethernet standards
100Mbps fast ethernet ,Full duplex or half-duplex, reach 200Mbps in full duplex
Supports 32-bit PCI 2.2 buses
Support IEEE 802.3x Flow Control enabled with full duplex operation,allowing enhanced operation when directly connected to a switch.
Support IP Unicast broadcast and multicast address filtering mechanism
Support IEEE 802.1p Tagging supported, ensure the sensitive data can reach on time
Support IEEE 802.1Q VLAN tagging
Support GVRP VLAN registration protocol
Support TCP/IP, CPU Task Offload reduces host CPU use
Advanced management, support DMI 2.0 and ACPI 1.0
Advantages
Use the double copper thickness,5OZ heavy gold plate to ensure the good reflect and heat dispersion
Optimize designation, improved the distribution line and integral network arrangement
Use the high power control, improved the high temperature of IC problem
Add the PXE BootRom controller and PXE
Applications
100Mbps FTTD Network
100Mbps Industry Ethernet
Other fiber applications AS
LR-LINK has PCI,PCIe x1; 100M, 1G; SC,SFP,LC,ST,FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card. If you want to know more product information, please browse: /DesktopFiberNICCards/index1.shtml
Network Operating Systems (NOS) Software Support
Windows XP 32-bit (64-bit)
Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit)
Windows Vista 32-bit (64-bit)
Windows Server 2003 64-bit
Windows ME/95/98/98SE/NT
Windows CE net5.0/6.0
Windows Server 2000
DOS
Ubuntu pre 8.04/9.04/ 9.10/10.04
SuSE Linux Enterprise 11
Fedora Core 1.0 Linux /2.0/3.0/4.0/5.0/6.0/7.0/8.0/11.0
Kernel 2.6.19.X
OpenUNIX 8.0 (Caldera)/openSuSE Linux 10.3 & earlier versions,
Mandrake/Mandriva pre-2006/2006/2007/2007.1/2008 Linux
Red Flag Linux, Red Hat Linux
FreeBSD versions 4.x, 5.x, 6.x and 7.0.
UNIX Solaris 8, 19 and 10 x86 and UNIX Solaris 10 x64 editions
UnixWare 7.x
Sun Solaris x86
Order Information
M/N |
Description |
Notes |
LREC7020PF-SFP |
PCI 100Base SFP Port Fiber NIC |
SFP connection, do not contain the fiber module |
LREC7020PF |
PCI 100Base SC Port MM Fiber NIC |
155Mbps,1310nm, 2KM at 50 µm |
LREC7020PF-ST |
PCI 100Base ST Port MM Fiber NIC |
155Mbps,1310nm, 2KM at 50 µm |
LREC7020PF-LX |
PCI 100Base SC Port SM Fiber NIC |
155Mbps,1310nm, 20KM at 9 µm; |
LREC7020PF-BD |
PCI 100Base SC Port BIDI Fiber NIC |
155Mbps,1310/1550nm
|
LRFP1315-02ATL |
155Mbps SFP multi-mode Transceiver |
155Mbps,1310nm, 2KM at 50 µm |
LRGP1315-20ATL |
155Mbps SFP Single-mode Transceiver |
155Mbps,1310nm, 20KM at 9 µm; |
PS: The above details are just for reference, if there are any changes, no prior notice.
