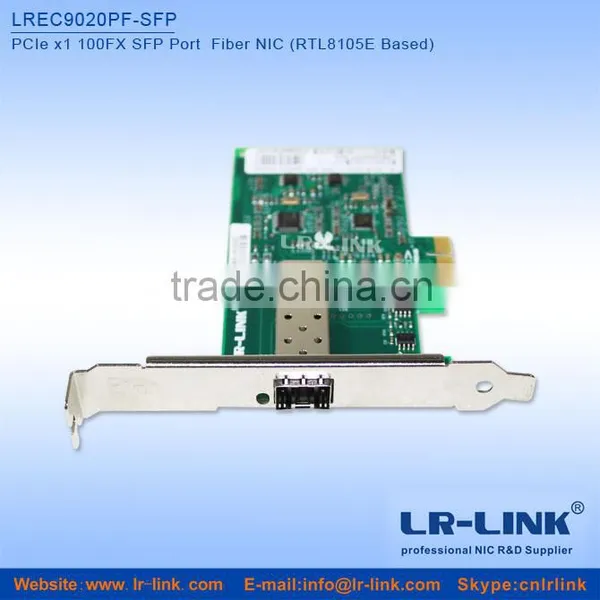

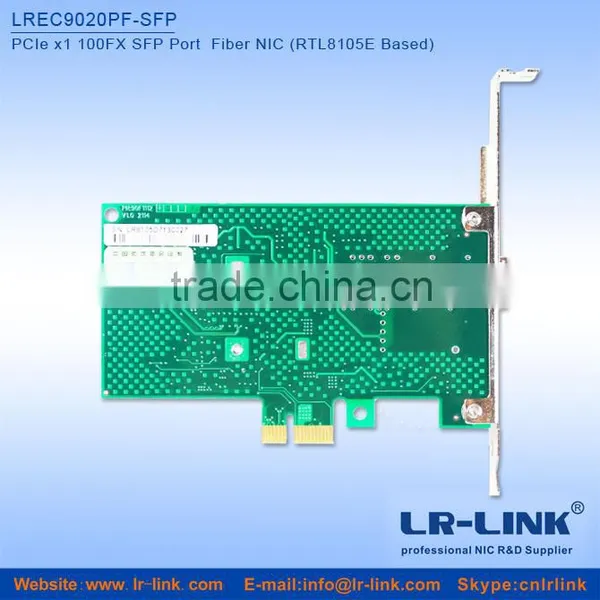

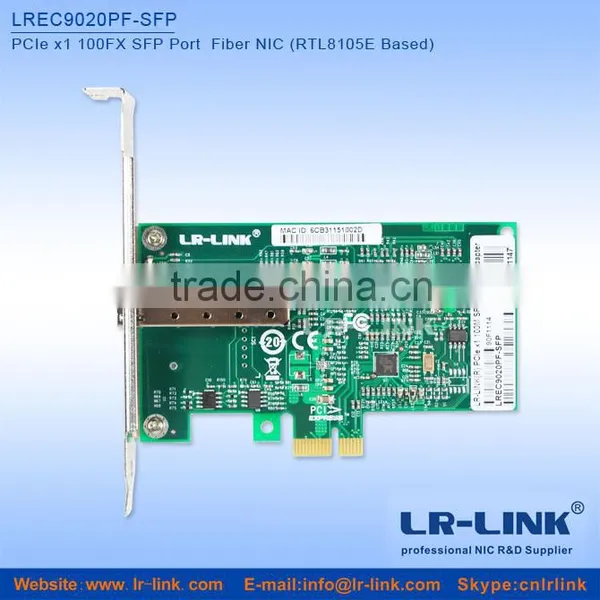

PCI Express x1 100FX SFP Port Optical Network Card

 LREC9020PF-SFP is a pci-e bus 100Mbps fiber network card developed by Shenzhen Lianrui Electronics CO.,LTD. It can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users. The network card can offer users reliable fiber-optic link on fast Ethernet internet , particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver .It can provide users with reliable FTTH and FTTD solutions .Users can select the optical interface parameters (including connectors, single-mode / multi-mode fiber, working distance, etc) according to occasion.

Specifications

Plug and play
PCI-E X1 compliant
SFP Port
Compliant with IEEE 802.3u 100Base-FX
Support flow control
Support priority queuing
ACPI 2.0 Power Management Function
Two color LED indicated to know the connecting and power status
Advanced management
Support most NOS systems

Networking Protocol

IEEE 802.3u 100Base-FX Ethernet standard

IEEE 802.3x flow control

IEEE 802.1q VLAN tagging

IEEE 802.1p priority control

PCI-E complaint

ACPI 2.0 power manage functions

DMI 2.0 desktop management

Wavelength & Distance

Dual fiber MM, single wavelength 1310nm, 2km

Environmental Parameters

Operating Temperature: 0℃-50℃

Storage Temperature: -25℃-55℃

Humidity Range Operating: 5%-95%,, non-condensing

Red LED: PWR

Green LED: LNK/RA

Size: 105mm X57mm

NOS Software Support

Windows ME

Windows 98SE

Windows 7 32-bit (64-bit)

Windows 8 32-bit (64-bit)

Windows 8.1 32-bit (64-bit)

Windows XP 32-bit (64-bit)

Windows 2000 32-bit (64-bit)

Windows Vista 32-bit (64-bit)

Windows Server 2003 32-bit (64-bit)

Windows Server 2008 32-bit (64-bit)

Windows Server 2008 R2 32-bit (64-bit)

DOS

UEFI UNDI

FreeBSD 7.x and 8.0

SCO Unix 5.0.6 and 5.0.7

Novell server OS 5.X and 6.X

SCO Open Server 6 and UnixWare 7.1.x

LINUX driver for kernel 3.x.2.6.x.2.4.x

MacOS 10.4 and 10.5 on Intel-based Mac computer

MacOS 10.6 on Intel-based Mac computer

MacOS 10.7 on Intel-based Mac computer

Order Information

PS: The above details are just for reference, if there are any changes, no prior notice.
