Specifications

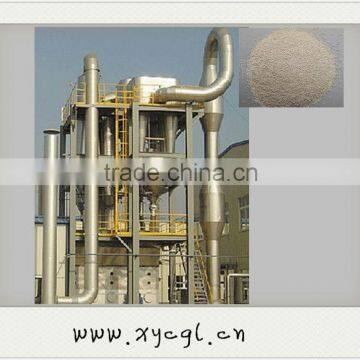

Pressure spray dring machine is a kind of device that can finish drying and granulation at the same time.Description:
This equipment is a kind of device that can finish drying and granulation at the same time. According to the requirements of technology, you can adjust the pressure of charging pump, flow quantity and the size of orifice. After the drying, a certain proportion of spherical particles will be obtained to meet your needs.
The tower body contacting with materials, pipes and separator is all made of SUS304. In addition, our factory can provide different heating mode according to the actual needs of users.
Features:
1. The drying speed is quick and be suitable for thermal sensitive materials.
2. The finished product is ball particle, with uniform size, good fluidity and hi gh purity.
3. Its applied scope is wide. It can use hot air drying and granulation, and also can undertake cooling granulation, spray crystallization, spray reaction, etc.
4. The control is convenient, easy to realize automatic operation.
Application:
1.Chemical Industry:
organic catalyst, resin, synthesized soap powder, oil, dyestuff, intermedium of dyestuff, white carbon black, graphite, magnesia, porcelain clay, metal oxide, etc.
2.Food Industry:
amino acid, seasoning, protein, starch, dairy products, coffee extraction, fish powder,etc.
3.Pharmaceutical Industry:
traditional Chinese medicine, agricultural chemicals, antibiotic, drug, etc.
Technical Parameter:
| Model Item | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | |
| Evaporated Capacity (kg/h) | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index depends on the practical situation. | |
| Diaphragm Pump | Power(KW) | 0.2 | 4 | 7.5 | 11 | 15 | 22 | 30 | |
|
Pressure (MPa) |
It can be adjusted from 0.6 to 5 according to the material experient. In general, the pressure will be between 1 and 3. | ||||||||
| Heating Style | electricity | electricity +steam | electricity +coal fuel (oil) hot air furnace | ||||||
| Diameter Of Tower Body (mm) | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | ||
| Total Height Of Equipment (mm) | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||
Product Details:
