Help CenterSpraying for Door Frame Production Line (FME40-LGF40-UGF50C)
Related Products
-
Distinguished Paint Spray Machine FWE130 LINENegotiableMOQ: 1 Set -
FME40 Wood Lines & Door Frames Dedicated Automatic Numerical Control SprayerNegotiableMOQ: 1 Set
-
Spray Paint Machine Price Practical and Useful Spray Machine for PlankNegotiableMOQ: 1 Set
-
Automatic NC Spray Painting Production LineNegotiableMOQ: 1 Set
-
Automatic NC Spray Painting MachineNegotiableMOQ: 1 Set
Product Picture:
Product Description:
Suitable for the continuous surface painting for the door frame, wooden line, photo frame, skirting line, aluminum profile.
Features:
PLC controller is provided to control each spray gun’s switch independently in order to save paint.
Automatic identification infrared sensor is provided to test the product’s length and width. PLC adjusts spray gun’s position automatically when the product’s length and width are changeable.
The automatic spray gun is imported from Japan originally—Anest or Devilbiss spray gun. The spray gun’s paint quantity and angles can be adjusted in advance. Each spray gun is control separately.
Waste gas purification system is provided to release the waste gas created during the painting, which can protect the environment from pollution in a large extent.
Stable paint supply is offered by a set high-capacity diaphragm pump and stabilizer to make the painting work more stable and paint change more convenience.
The conveyor’s speed can be frequency controlled to meet different painting requirements.
The paint recovery device can recycle 70%-80% wasted painting in order to improve the paint’s use ratio.

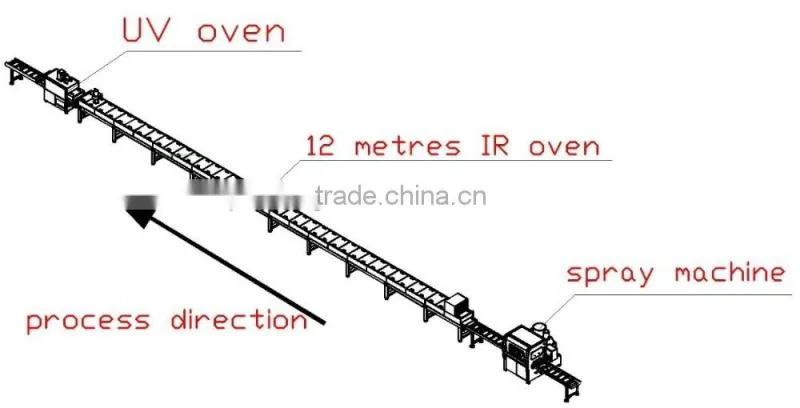

This production line is composed of door frame automatic sprayer, and leveling line and UV dryer.
Equipped with stereo metric UV curing machine to solidify the paint step by step and reduce the instant curing paint stress immediately to avoid paint cracking.
The special wave band lamp structure is able to control the paint’s toughness, hardness, adhesive force and rubbing property and bring the paint’s features in to play perfectly.
Feeding, conveyer, dust removed and UV drying device are provided to improve painting efficiency.
TECHNIQUE PARAMETER |
Production line for Wood door frame |
Dimensions |
23m(L) X 6.2m(W) X 3m(H) |
The weight of the machine |
4000kg |
Maximum working length |
2400mm |
Maximum working width |
70-300mm |
Maximum processing thickness |
50-80mm |
Gun caliber |
0.8/1.0/1.3mm |
Pump power |
0.75KW |
Fan power |
1.5KW |
Transmission power of Spray machine |
0.75KW |
IR oven power |
12.6KW (12m) |
UV solidifying machine power |
3KW X 5 |
The power of UV fan |
1.1 KW |
Transmission power of UV solidifying machine |
0.75KW |
Air pressure |
1.2Mpa |
Types of paint |
PE,PC,PU,UV,UC,XU,(Water borne paint) |
Air consumption |
1400-1800L/min |
The amount of paint used |
80-300g/square meter |
Using the power |
380V 50HZ |
Total power |
40KW |
