Specifications
1. Recycle 70%-80% wasted painting.2.Shorten the drying time.
3.High efficency
4. Easy to control
Wood line and door frame dedicated automatic NC spray painting machine
constituent elements:
Standard Technique Parameters | |
Dimensions |
6.5*2.3*2.2 (m) |
Weight of the machine |
1000 kg |
Min processing length |
700 mm |
Max processing width |
70 - 300 mm |
Max processing height |
5 - 80 mm |
Conveying speed |
10 - 15 m/min |
Transmission power |
0.75 KW |
Fan power |
1.5 KW |
Pump power |
0.75 KW |
Working gun |
6 |
Gun caliber |
0.8/1.0/1.3 mm |
Types of paint |
PE, PU, UC, NC, UV, Waterborne paint |
The amount of paint used |
60-200g/ m² |
Air pressure |
0.6MPA |
Air flowing |
2400L/min |
Power supply |
380V 50HZ (three-phase four-wire power line power supply) |
| Features: |
|
1. PLC controller controls each spray gun’s switch independently.
2. Automatic identification infrared sensor is provided to test the product’s length and width. PLC adjusts spray gun’s position automatically.
3. The automatic spray gun is imported from Japan originally — Anest or Meiji spray gun. Each spray gun can be control separately.
4. Equipped with Waste gas purification system.
5. Stable paint supply is offered by a set high-capacity diaphragm pump and stabilizer.
6. The conveyor’s speed can be frequency conversion.
7. The paint recovery device can recycle 70%-80% wasted painting. |
2. LGF130 IR oven machine (Infrared Rolling machine)
Standard Technical Parameters | |
Dimensions |
12*1.5*1.85 (m) |
Min processing length |
0.3 m |
Max processing width |
1.22 m |
Max processing height |
0.2 m |
The power of transmission |
0.75 KW (frequency conversion) |
Conveyor speed(sending speed) |
0 – 6 m/min |
| Features: |
|
1. Using the heating theory, the machine can speed up the paint thinner’s volatilization and shorten the drying time.
2. You can choose the infrared ray to heat if it is needed.
3. The fan can drive the air to circulate, which can speed up the paint thinner’s volatilization.
4. The way to deliver adopts the conveyor which includes heat-resistant chain and stainless steel circular tube.
5. Equipped with automatic temperature control device to adjust the temperature.
6. Recycle to use the mixed flow to save energy.
7. When the air comes into the machine, the air can be filtered. The air draft can be adjusted. |

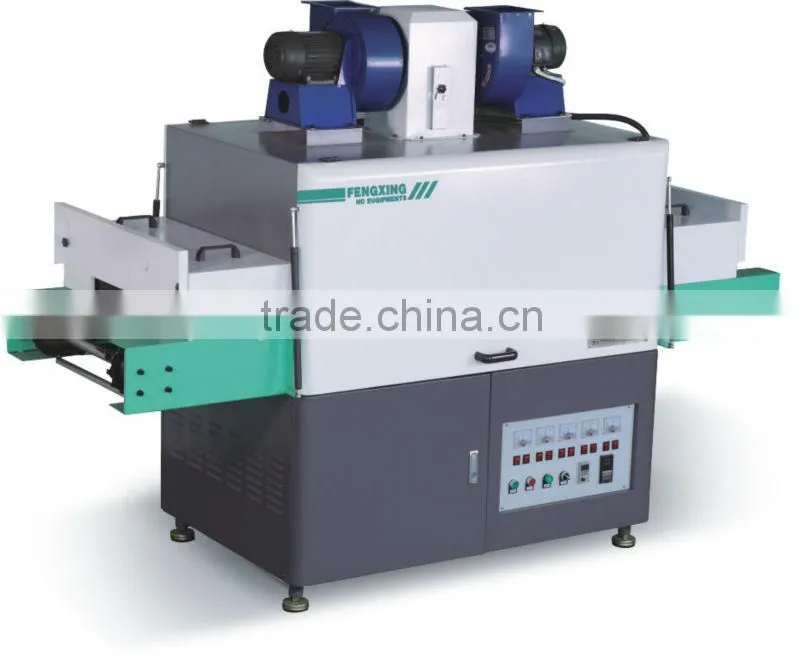

3. UGF50D (UV Drying Machine)
Standard Technical Parameters | |
Dimensions |
1.4*1.8*1.5 (m) |
Max processing length |
2.4 m |
Max processing width |
1.22 m |
Max processing height |
0.1 m |
Weight of the machine |
1000 kg |
| Features: |
|
1. To increase the system security, it is equipped with scram button to control.
2. It is equipped with stepless adjustment to transfer and preventing deviation stable device to make sure that it transfers smoothly. 3. Each UV system can be controlled separated. Turn on some tubes and exchange the power of the tubes according to the producing condition. |
