1575.42MHz GPS Patch Antenna Ceramic Internal Antenna with IPEX Connector with low V.S.W.R figure Quality Choice
- 20000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
- internal ceramic active gps patch antenna 1575.42MHz with RG1.13 RG174 cable & IPEX MMCX connector
- Antenna GPS 3V Magnetic Mount SMA Male
- Yetnorson gps combo antenna 1575.42mhz GPS antenna adhesive antenna with TV function
- Yetnorson New film ISDB car tv gps antenna with VR1/HF201/GT connectors GPS antenna for car gpe nevigation
- New Car globalsat gps receiver GPS Navigation Antenna Aerial with SMA Male Connector 3M Cable
- GPS antenna with 3m cable 1575.42MHz 3V to 5V for GPS Tracker TK103, TK104, TK106, VT300, VT310
Product Details
Place of Origin: | Guangdong, China | Brand Name: | yetnorson | Model Number: | YNX-GPS-25 |
Packaging Details
1pcs packed in one PE bag
Product Description
1575.42MHz GPS Patch Antenna Ceramic Internal Antenna with IPEX Connector with low V.S.W.R figure
1)Dielectric Antenna | |
Center Frequency | 1575.42 MHz±3 MHz / 1602 MHz±3 MHz |
V.S.W.R | 1.5:1 |
Band Width | ±5 MHz |
Impedance | 50 ohm |
Polarization Type | R.H.C.P |
2) LNA/Filter | |
LNA Gain(w/o cable) | 28±2 dB Typical |
Noise Figure | 1.5 dB |
DC Voltage | 2.2~5 V |
DC Current | 5~15 mA |
3) Mechanical | |
Size | 28*28*5mm |
Mounting | Internal |
Connector | SMA/MCX/IPEX or others |
Cable | RG174/RF1.13 or others |
Key features of 1575.42MHz GPS Patch Antenna
Center Frequency: 1575.42MHZ,1561MHZ
VSWR: 2:1
Bandwidth: ±30 MHz
Impedance: 50Ω
Highest gain : > 3dBic Based on 7 × 7cm
Gain Range : >-4dBic at -90 ° <0 <+90 °
Antenna polarization: RHCP
Amplifier:
Amplifier gain: 28dB
Noise Figure: 1.5dB
Filter band attenuation
7dB Min f0 + /-20MHz
20dB Min f0 + /-50MHz
30dB Min f0 + /-100MHz
Output VSWR: <2.0
DC voltage DC: 3V - 5V
Power: 10mA
Connector type: IPEX
Line color: black
Antenna size:25*25*2mm
Product size:28*28*5mm
Environment:
Operating Temperature: -40 degree„ƒ ~ +85 degree„ƒ
Waterproof test
Humidity: 95% ~ 100% RH
Package Included:
28db GPS Antenna

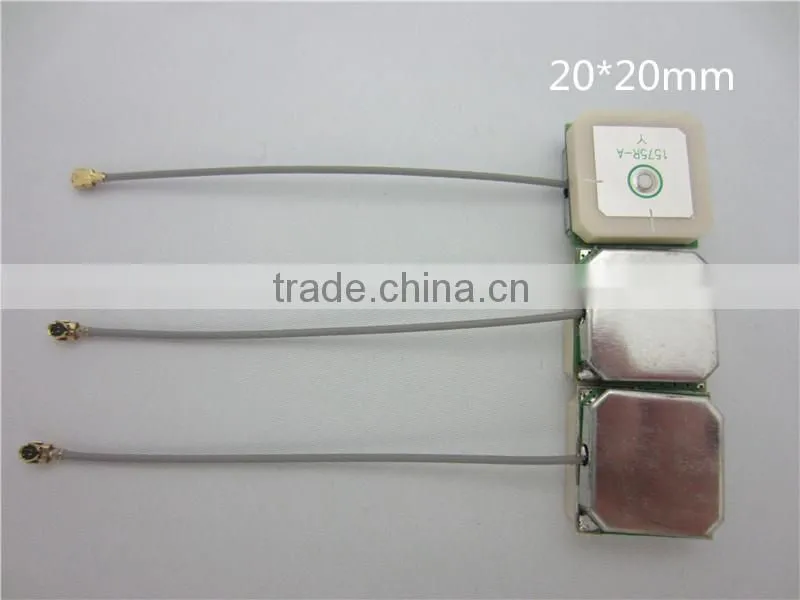

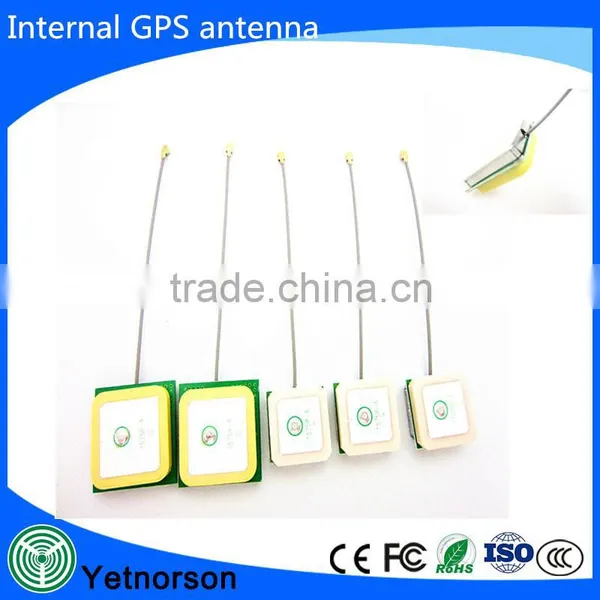

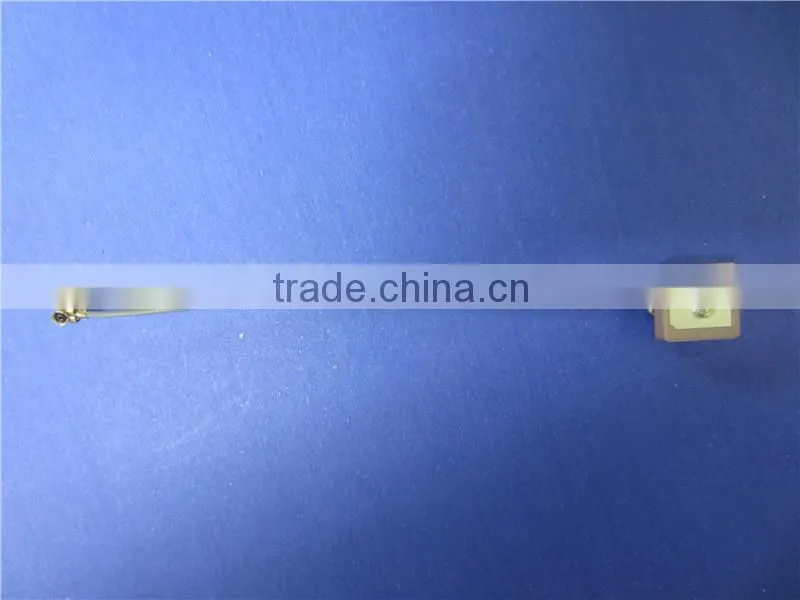

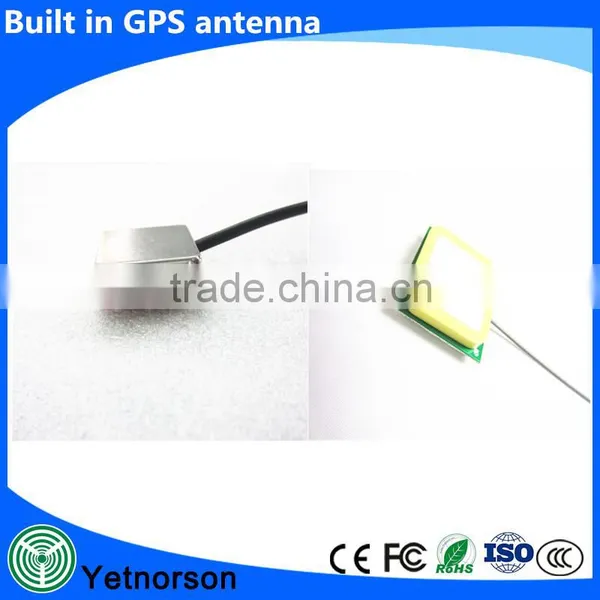

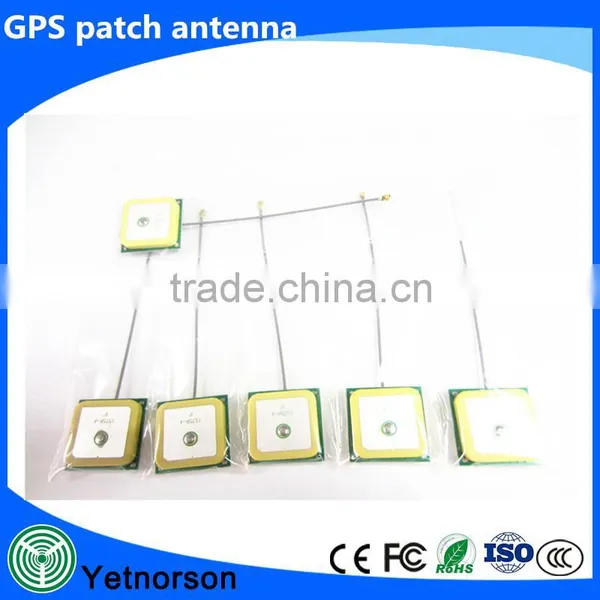

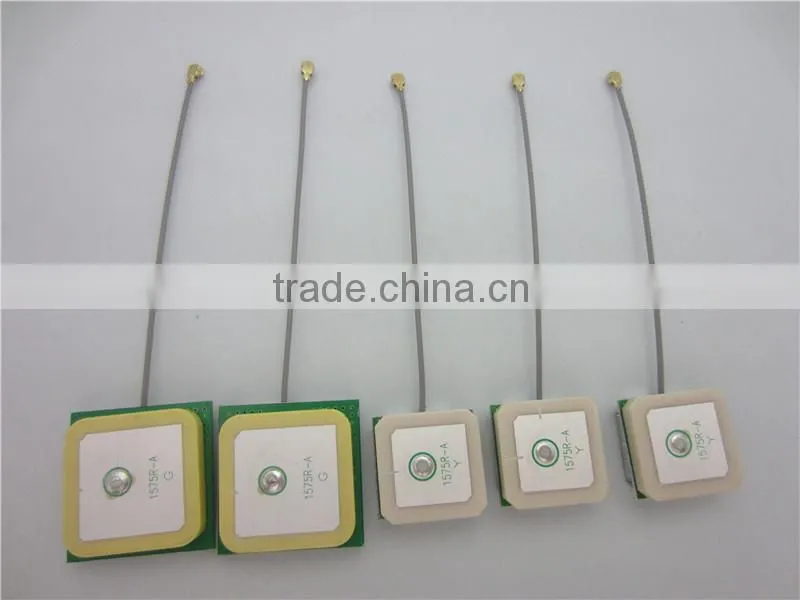

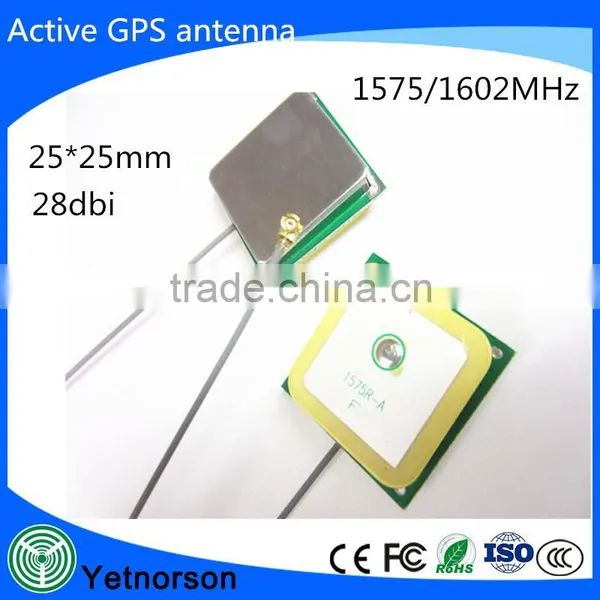

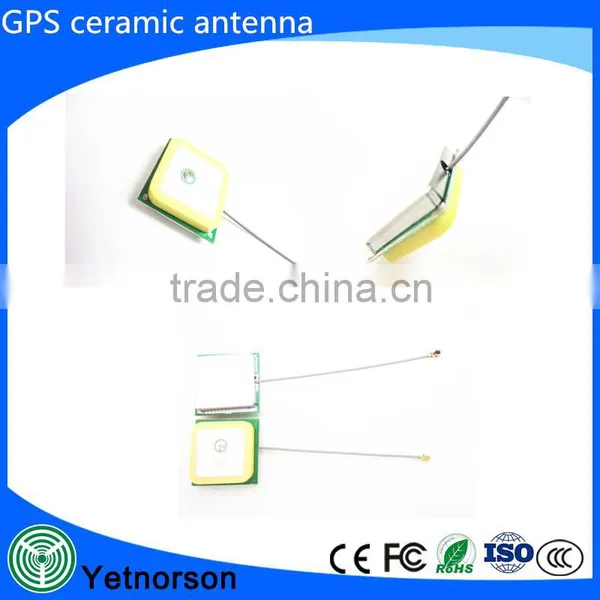

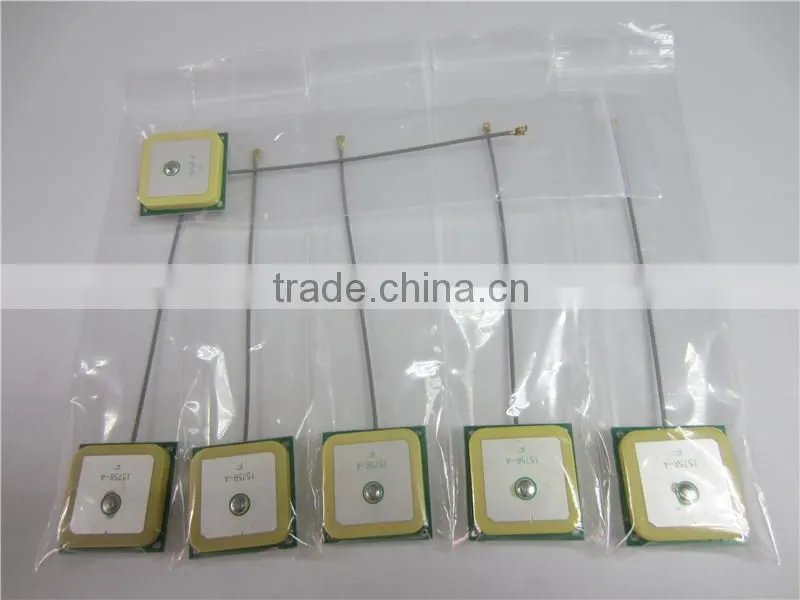

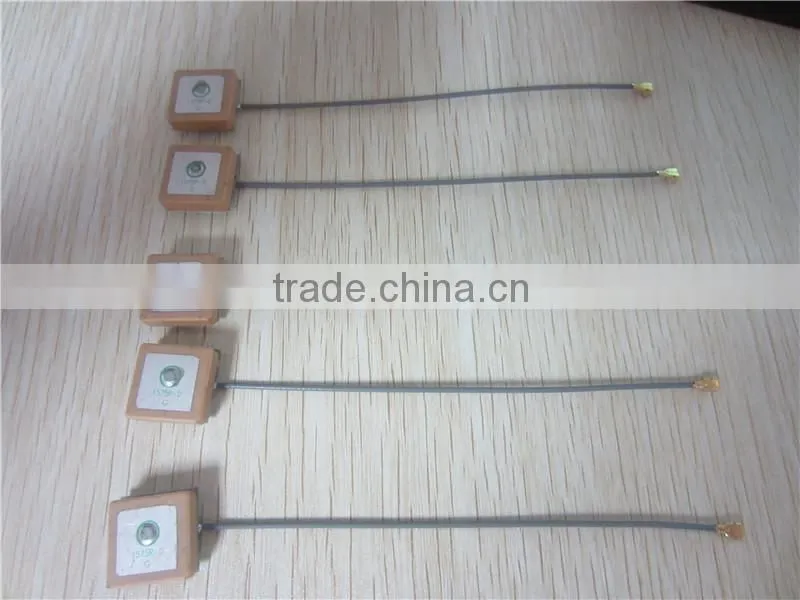

The appearance of 1575.42MHz GPS Patch Antenna

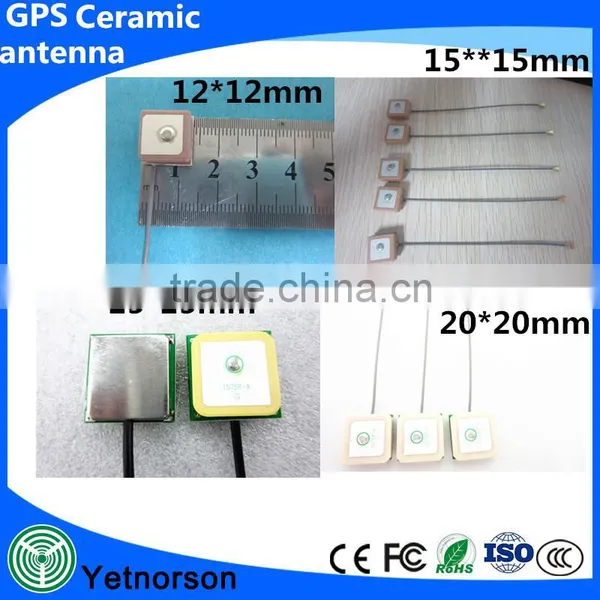

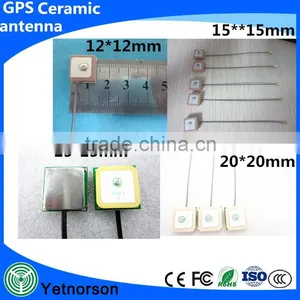

We have 10*10mm,12*12mm, 15*15mm,18*18mm, 20*20mm ,25*25mm different series, Welcome to order from us.
The Testing of 1575.42MHz GPS Patch Antenna
The application of 1575.42MHz GPS Patch Antenna
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
Shenzhen Yetnorson Technology Co.,Ltd is one of professional antenna manufacture which established in 2009, Yetnorson aims to become No.1 brand in antenna field. With CSRVE principle, many Yetnorson's products such as GPS antenna, 4G antenna, TV antenna has been sold to Russia, Saudi Arabia, Chile and other places of the world, the quality get highly appreciated by customers.
All of our products meet the standard of ISO9001, we have professional test equipment. Such As : CNC lathes, automatic assembly line of the oscillator, network analyzer, spectrum analysis instrument third-order inter modulation test instrument, microwave darkroom, antenna simulation test magnetic field, etc.
Various Products
Yetnorson produce GPS antenna,2.4G Wifiantenna,3G antenna,4G LTE antenna,5.8G antenna,2.4G/5.8G dual band antenna,GSM antenna,CDMA antenna,Comobo antenna,Iridium antenna,315MHz antenna,433MHz antennna,868MHz antenna,915MHz antenna,Walkie Talkie antenna,FM radio antennna etc. Besides,we also produce various RF cable. We have different appearance for optional, such as patch antenna,rubber sticker antenna,Yagi antenna, panel antenna etc.
We excute strict quality control system, begin with the raw material to the final finished goods inspection and packgaing, we have professioanl QC to check every step, we make sure that the customers get the well packed and workable goods.
Signal get us get closer with each other. Welcome to inquiry us.
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost ,there we can free for one sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
