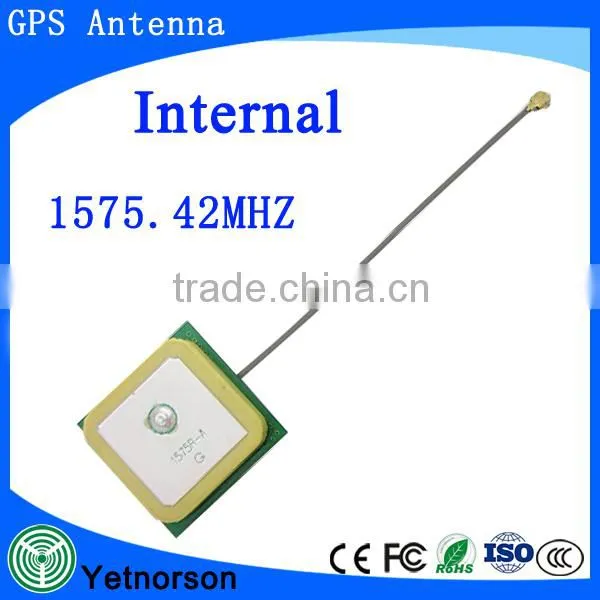

15*15mm GPS Active Internal Antenna 28DBI High Gain Navigation Aerial Booster With Ipex Plug
- Shenzhen
- Money Gram Credit Card PayPal
You May Like
-
1575.42mhz GPS Active Internal Antenna 28DBI High Gain Navigation Aerial Booster With IPEX Plug Connector
-
GPS Internal Antenna With R/A MMCX Male Plug Connector RG174 30CM Cable 50 Ohm 1575.42MHz Aerial Sngnal Booster
-
Ceramic Patch GPS Antenna 28DBI High Gain Navigation With MMCX Connector
-
High Gain 29dbi Gps Antenna Sticky Car GPS Antenna With MCX Connector
-
Factory Price Magnetic Gps Antenna Active 29dbi GPS Antenna With BNC Connector
-
External Car Gps Antenna High Gain Munafacture in Shenzhen China
Product Details
| Place of Origin | Guangdong, China | Brand Name | yetnorson | |
| Model Number | YNX-GPS-25 |

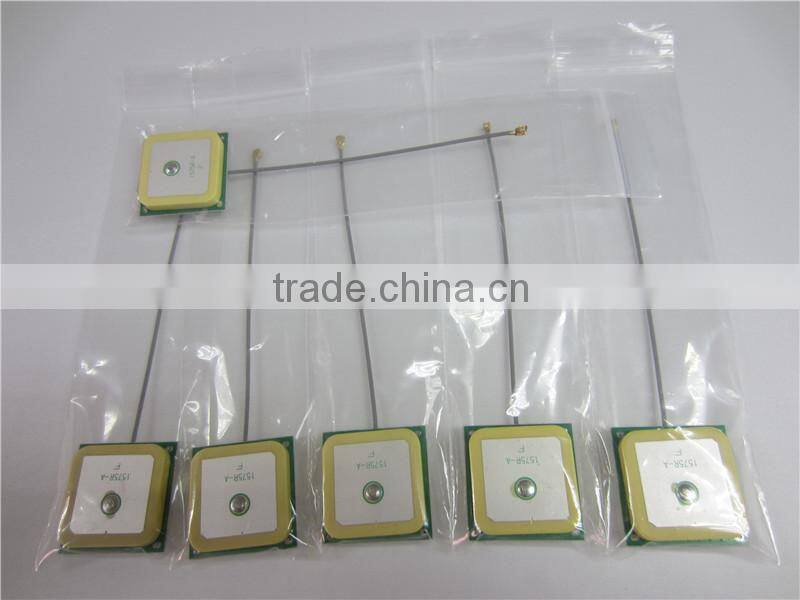

1pcs packed in one PE bag
Product Description
15*15mm GPS active internal antenna 28DBI high gain Navigation aerial booster with ipex plug
| 1)Dielectric Antenna | |
| Center Frequency | 1575.42 MHz±3 MHz / 1602 MHz±3 MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impedance | 50 ohm |
| Polarization Type | R.H.C.P |
| 2) LNA/Filter | |
| LNA Gain(w/o cable) | 28±2 dB Typical |
| Noise Figure | 1.5 dB |
| DC Voltage | 2.2~5 V |
| DC Current | 5~15 mA |
| 3) Mechanical | |
| Size | 25*25*8mm |
| Mounting | Internal |
| Connector | IPEX/SMB/MCX/MMCXor others |
| Cable | RG174/RF1.13 or others |
Key features of 15*15mm GPS active internal antenna
Center Frequency: 1575.42MHZ,1602MHZ
VSWR: 1.5:1
Bandwidth: ±30 MHz
Impedance: 50Ω
Highest gain : > 3dBic Based on 7 × 7cm
Gain Range : >-4dBic at -90 ° <0 <+90 °
Antenna polarization: RHCP
Amplifier:
Amplifier gain: 28dB
Noise Figure: 1.5dB
Filter band attenuation
7dB Min f0 + /-20MHz
20dB Min f0 + /-50MHz
30dB Min f0 + /-100MHz
Output VSWR: <2.0
DC voltage DC: 3V - 5V
Power: 10mA
Connector type: IPEX
Line color: black
Antenna size:25*25*8mm
Environment:
Operating Temperature: -40 degree„ƒ ~ +85 degree„ƒ
Waterproof test
Humidity: 95% ~ 100% RH
Package Included:
28db GPS Antenna

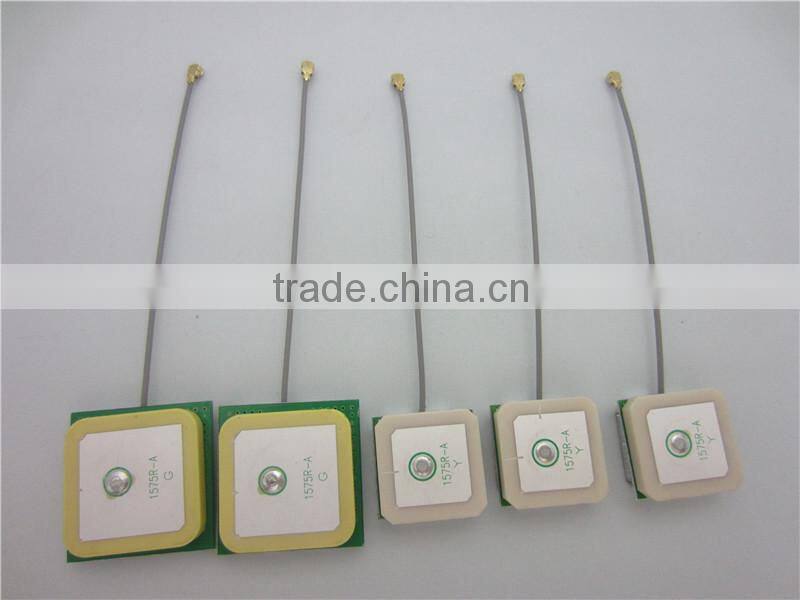

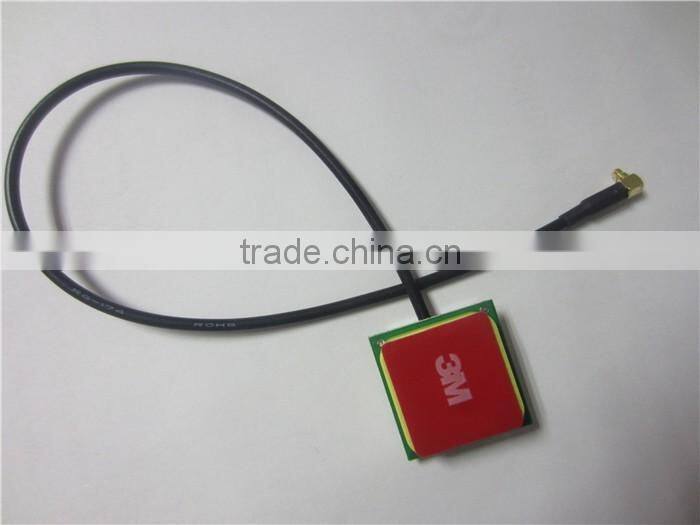

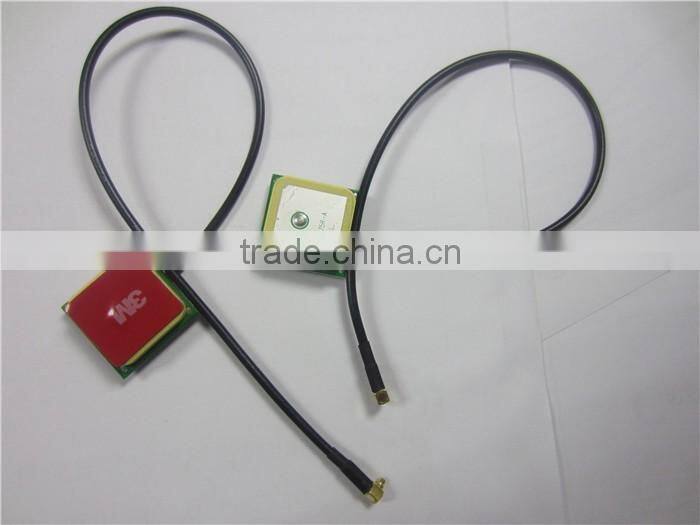

The appearance of 15*15mm GPS active internal antenna

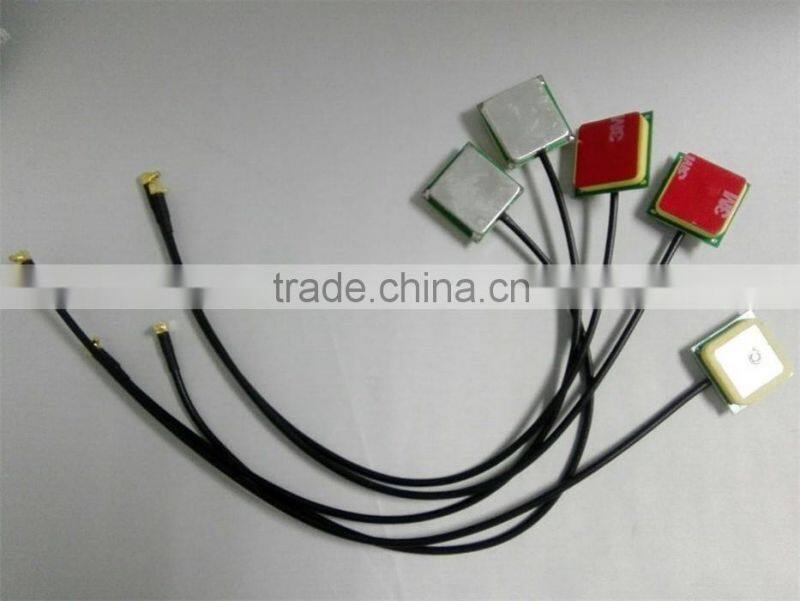

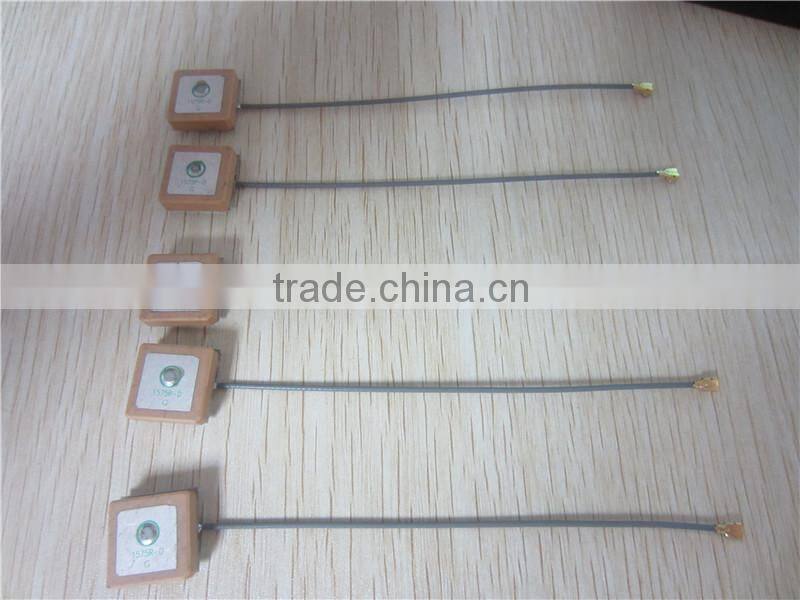

We have 10*10mm,12*12mm, 15*15mm,18*18mm, 20*20mm ,25*25mm different series, Welcome to order from us.
The Testing of 15*15mm GPS active internal antenna
The application of 15*15mm GPS active internal antenna
