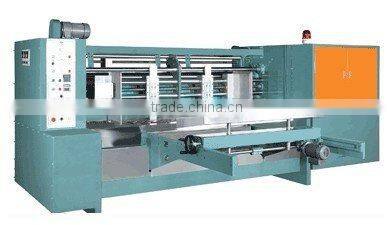

Help CenterAuto Rotary Die Cutting Machine
Related Products
-
TYM920II Die Cutting Gilding PressUS$ 11,000 - 18,000MOQ: 1 Set -
MW1050YC Die Cutting Gilding PressUS$ 11,000 - 18,000MOQ: 1 Set
-
TW-ZAZ1150D Jogger Cutting System Peripheral SystemCutting System Peripheral System Paper Cutting Machine Paper Cutter SlitterUS$ 10,000 - 30,000MOQ: 1 Unit
-
W-XZ1450Y3B Unloading System Cutting System Peripheral System Paper Cutting Machine Paper Cutter SlitterUS$ 10,000 - 30,000MOQ: 1 Unit
-
TW-SJC1000A Stack Lift Cutting System Peripheral System Paper Cutting Machine Paper Cutter SlitterUS$ 10,000 - 30,000MOQ: 1 Unit
Specifications
1.Advanced controlling systemMicroprocessor assisted monitoring and self-diagnosis system with information system controlled byAuto Rotary Die Cutting Machine
Features:
Stand alone rotary die cutter, can be used for printed box manufacture.
This machine features die cutting, creasing and cutting hand holes. Suitable for solid board and medium or small-caliper board.
It features high precision die-cutting with high speed, and easy operation.
It is designed for double roll rotary pressing, electromagnetic speed adjustment, and motorized die-cutting register adjustment by planet gearing mechanism.
60mm transverse moving of anvil roller is controlled by the mechanic cam device. Roller is controlled by the mechanic cam device.
Lead edge feeder and kick feeder are both available to your request.
Technical specifications
DATAMODEL |
TB-1200*2000 |
TB-1200*2400 |
Working speed(pcs/mm) |
120 |
120 |
Max.available size of board(mm) |
2000×1200 |
2400×1200 |
Main motor power(kw) |
5.5 |
7.5 |
Weight ( kg ) |
5500 |
6000 |
Dimension ( L × W ×H )( mm ) |
2670×3900×1800 |
2670×4300×1800 |
DATAMODEL |
TB-1600*2400 |
TB-1600*2800 |
Working speed(pcs/mm) |
100 |
100 |
Max.available size of board(mm) |
2400×1600 |
2800×1600 |
Main motor power(kw) |
7.5 |
11 |
Weight ( kg ) |
6500 |
7500 |
Dimension ( L × W ×H )( mm ) |
3095×4300×1950 |
3095×4900×1950 |
DATAMODEL |
TB-2200*3000 |
TB-2200*3600 |
Working speed(pcs/mm) |
60 |
60 |
Max.available size of board(mm) |
3000×2200 |
3600×2200 |
Main motor power(kw) |
11 |
15 |
Weight ( kg ) |
8000 |
10000 |
Dimension ( L × W ×H )( mm ) |
3500×5200x2250 |
3500×5800x2250 |
