Specifications
Coating machine1. Use water-based varnish
2. High coating quality
3. Environment protection

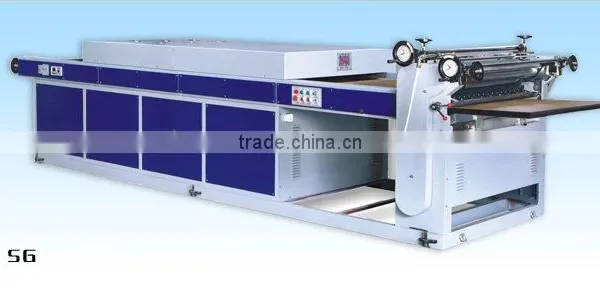

SG SERIES WATER-BASED COATING MACHINE
Features:
1. This machine is used for paper coating by water-based varnish or other normal vanish. IR dry can be used to improve the brightness of paper surface and for damp-proof and wearable.
2. After coating, this machine can be used with YG series calendar machine to get higher paper surface brightness.
3. This machine can also be used for ground coating before UV coating. Water-based varnish is optional for the factories with high requirement of environment protection.
Air knife system for light paper, automatic stop mechanism, powder-removing mechanism and reversed coating device are optional.
Lengthened conveyors of 2000mm and 4000mm are optional according to your requirement.
Technical specifications:
| Model: | SG-920 | SG-1200 |
| Max. Sheet Size(mm) | 950 | 1200 |
| Paper weight(gsm) | 250-800 | 250-800 |
| Max. Speed(pcs/h) | 3000 | 3000 |
| IR power(kw) | 18 | 21.6 |
| Total Power(kw) | 19 | 23 |
| Dimension(mm) | 5800X1500X1300 | 5800X1700X1300 |
| Weight(t) | 2.1 | 2.5 |
