Home > Packaging & Printing > Packing Machinery > Laminating Machine > High Speed & Precision Sheeting Machine

High Speed & Precision Sheeting Machine

Name: High Speed & Precision Sheeting Machine
Brand: TOWIN
SKU: 115356599
Availability: InStock

High Speed & Precision Sheeting Machine thumbnail-1

High Speed & Precision Sheeting Machine photo-1

US$ 35,000 - 60,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Paper Cutting Machine

Automatic Grade:

Automatic

Contact Supplier Request Quote Chat Now

Shanghai Towin Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Paper Cutting Machine

Automatic Grade Automatic

Place of Origin Shanghai, China

Brand Name TOWIN

Model Number GFQ1650

Voltage 380V/50Hz

Power(W) 24kw

Dimension(L*W*H) 13000X4000X2200mm

Weight 1350kgs

Certification CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Sheeting machine
1. For paper roll to cut into single sheet
2. High precision and high speed
3. High efficiency

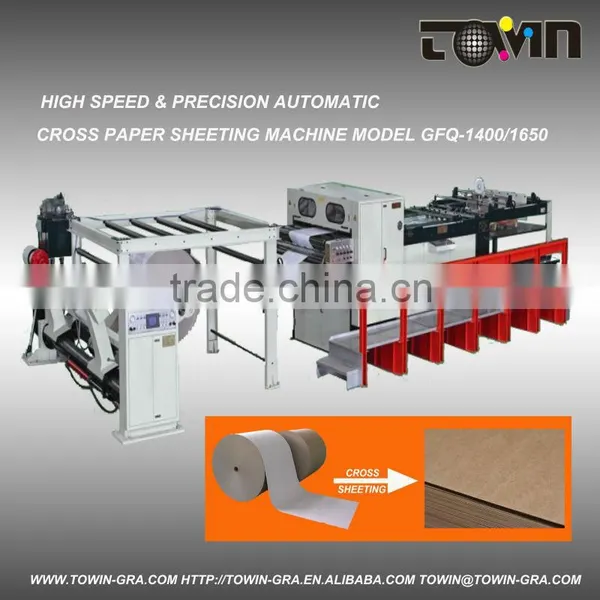

High speed and precision automatic cross sheeting machine FMQ1400/1650

Applications:

The machine is used to cross cut the raw paper roll or printed paper roll into single sheet for next printing or process after printing such as lamination, uv coating or foil stamping and die cutting.

Features:

¨ With indicator for sheeting speed and sheeting length. Easy for sheeting length adjustment.

¨ Imported cutting knife, which is durable.

¨ Imported key components for high cutting accuracy at high speed.

¨ Sensitive anti-stop detector. Fast reaction brake in main unit.

¨ Paper roll pressing device to flat the hunched up paper.

¨ Paper roll running flow is wholly guided.

¨ Taper inserter for sheet counting.

¨ Trembling sheet jogging.

¨ Auto delivery pile stacker lift by means of photoelectric sensor.

¨ Overlapping paper roll feeding.

¨ Easy machine maintenance.

Technical specifications

Model	GFQ1400	GFQ1650
Max. Unwinding roll diameter	1820mm	1820mm
Roll width	450-1400mm	450-1650mm
Inner core diameter	75-300mm	75-300mm
Substrate	80-450gsm	80-450gsm
Sheet speed	250m/min (for more than 150gsm) 120m/min (for less than 150gsm)	250m/min (for more than 150gsm) 120m/min (for less than 150gsm)
Sheet length	460-1370mm	500-1450mm
Sheet accuracy	±0.5mm	±0.5mm
Max. Delivery pile height	1300mm	1300mm
Total power	19kw(Not including 5.5kw motor of shaftless unwinding racket)	24kw(Not including 5.5kw motor of shaftless unwinding racket)
Machine size	12000×4000×2200mm	13000×4000×2200mm
Machine weight	12500kg	13500kg
