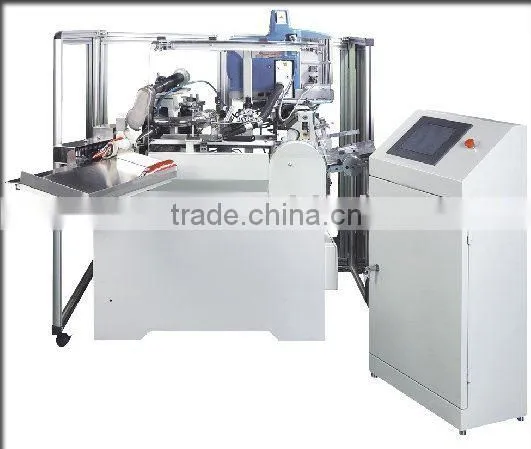

Help CenterIce Cream Paper Cone Forming Machine
Related Products
-
Paper Cone Punching MachineUS$ 50,000 - 100,000MOQ: 1 Set -
Automatic Ice Cream Paper Cone MachineUS$ 60,000 - 70,000MOQ: 1 Set
-
Automatic Ice Cream Paper Cone Forming MachineUS$ 60,000 - 80,000MOQ: 1 Set
-
Automatic Paper Cone Cup Forming MachineUS$ 60,000 - 70,000MOQ: 1 Set
-
Paper Cake Case Forming MachineNegotiableMOQ: 1 Unit
Specifications
1.Ice cream paper cone forming mahcine2.Paper cone forming machine
3.Good accuracy
4.High productivity
Applications:
This machine is used to form the sleeves of ice-cream cones and cones with similar shapes. Processible materials include printed and die cutted blanks of aluminum foiled paper, PE coated paper and dry stencil paper.
Working principal:
Suckers take printed and die cutted paper cone open blanks onto transmission chain. They will be transported to forming mould. Then hot melt glue will be applied there. Length and amount of applied glue can be adjusted during machine operation as per individual requirements. Then the blanks will be taken and rotated together with forming mould. Thus one paper cone is finished forming. The formed paper cone will be blowed away from forming mould to collector tube. Auto piling of formed paper cone and auto counting functions are available. The piled paper cones are outputted to collecting tray automatically as per you set amount without machine stop.
Features:
- High efficiency: Produce as many as 220 pcs per minute and formed paper cones are counted automatically.
- Compact machine: Convenient for installation.
- Low power consumption: 5.5kw
- Box type transmission system: Good rigidity and stability, high accuracy, cycling oil lubrication
- Man-machine touch screen for running indication and data setting: Convenient operation and maintenance (for DYK6-H only)
- Electronic gluing system: Easier control to glue applying amount and length
- High automation: Easy operation and maintenance and low rate of fault.
- The best Cost-effective
Technical specifications
Model |
DYK6-H |
DYK5 |
Max.paper cone height |
255mm |
255mm |
Min.paper cone height |
100mm |
100mm |
Paper cone angel |
15°- 28°(customized angel possible by means of changing forming mould) |
15°- 28°( customized angel possible by means of changing forming mould) |
Substrate |
Paper, aluminum foiled paper, PE coated paper 80-180gsm, dry stencil paper less than 100gsm |
Paper, aluminum foiled paper, dry stencil paper less than 100gsm |
Floor space |
2.0X2.0m |
2.0X2.0m |
Machine speed: |
250pcs/min |
200pcs/min |
Machine weight |
1.2 tons |
1.0 tons |
Package size |
1.5X1.2X1.5m 1.43X0.71X1.12m |
1.33X1.10X1.42m 1.43X0.71X1.12m |
Power supply: |
380V/50Hz |
380V/50Hz |
Note:
- Compressed air without drying process may shorten machine life and lead to instability in produced paper cone.
- Incorrect substrate or hot melt glue may decrease machine production and affect quality of produced paper cone.
- Printed patterns and print surface treatment are very crucial. Before production, they need to be tested. Unqualified blanks may affect production efficiency and quality of produced paper cone.
