Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Automatic Ice Cream Paper Cone Machine

Automatic Ice Cream Paper Cone Machine

Name: Automatic Ice Cream Paper Cone Machine
Brand: Towin
SKU: 115356525
Availability: InStock

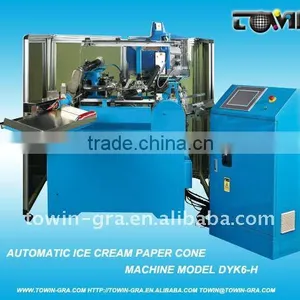

Automatic Ice Cream Paper Cone Machine thumbnail-1

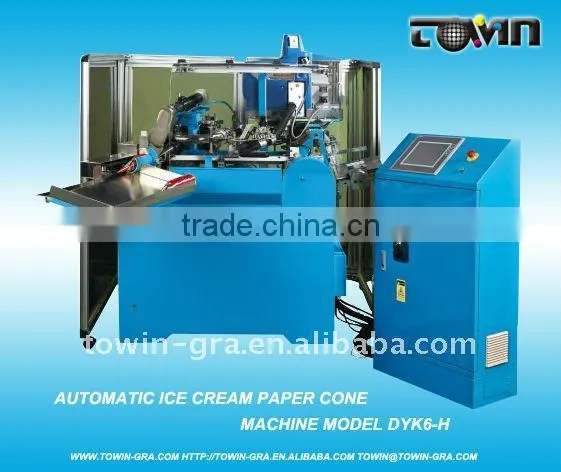

Automatic Ice Cream Paper Cone Machine photo-1

US$ 60,000 - 70,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Food

Packaging Type:

Other, sea worthy wooden cases

Contact Supplier Request Quote Chat Now

Shanghai Towin Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Food

Packaging Type Other, sea worthy wooden cases

Packaging Material Paper

Automatic Grade Automatic

Driven Type Electric

Power 5.5kw

Place of Origin Shanghai, China

Brand Name Towin

Model Number DYK6-H

Specifications

Ice cream paper cone machine
1.Ice cream paper cone forming machine
2.Widely used for Nestle & Walls cone
3.High productivity

Ice crean paper cone machine

Applications:

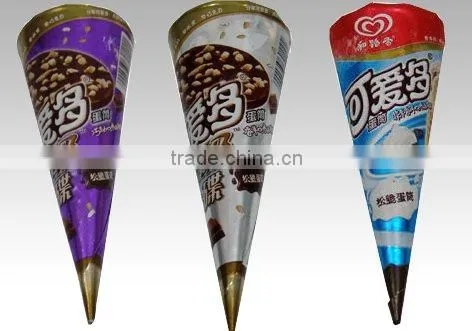

This machine is used to form the sleeves of ice-cream cones and cones with similar shapes. Processible materials include printed and die cutted blanks of aluminum foiled paper, PE coated paper and dry stencil paper.

Working principal:

Suckers take printed and die cutted paper cone open blanks onto transmission chain. They will be transported to forming mould. Then hot melt glue will be applied there. Length and amount of applied glue can be adjusted during machine operation as per individual requirements. Then the blanks will be taken and rotated together with forming mould. Thus one paper cone is finished forming. The formed paper cone will be blowed away from forming mould to collector tube. Auto piling of formed paper cone and auto counting functions are available. The piled paper cones are outputted to collecting tray automatically as per you set amount without machine stop.

Features:

High efficiency: Produce as many as 220 pcs per minute and formed paper cones are counted automatically.
Compact machine: Convenient for installation.
Low power consumption: 5.5kw
Box type transmission system: Good rigidity and stability, high accuracy, cycling oil lubrication
Man-machine touch screen for running indication and data setting: Convenient operation and maintenance (for DYK6-H only)
Electronic gluing system: Easier control to glue applying amount and length
High automation: Easy operation and maintenance and low rate of fault.
The best Cost-effective

Technical specifications

Model	DYK6-H	DYK5
Max.paper cone height	255mm	255mm
Min.paper cone height	100mm	100mm
Paper cone angel	15°- 28°(customized angel possible by means of changing forming mould)	15°- 28°( customized angel possible by means of changing forming mould)
Substrate	Paper, aluminum foiled paper, PE coated paper 80-180gsm, dry stencil paper less than 100gsm	Paper, aluminum foiled paper, dry stencil paper less than 100gsm
Floor space	2.0X2.0m	2.0X2.0m
Machine speed:	250pcs/min	200pcs/min
Machine weight	1.2 tons	1.0 tons
Package size	1.5X1.2X1.5m 1.43X0.71X1.12m	1.33X1.10X1.42m 1.43X0.71X1.12m
Power supply:	380V/50Hz	380V/50Hz

Note:

Compressed air without drying process may shorten machine life and lead to instability in produced paper cone.
Incorrect substrate or hot melt glue may decrease machine production and affect quality of produced paper cone.
Printed patterns and print surface treatment are very crucial. Before production, they need to be tested. Unqualified blanks may affect production efficiency and quality of produced paper cone.
