2015 Rubber Elbow Rod Antenna SW433-WT100 3.0dBi High Gain 433MHz Antenna

Name: 2015 Rubber Elbow Rod Antenna SW433-WT100 3.0dBi High Gain 433MHz Antenna
Brand: NiceRF
Availability: InStock

FOB Price

USD $1.4 - $1.5 / Piece

2 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	NiceRF
Model Number	SW433-WT100

Product Description

2015 Rubber Elbow Rod Antenna SW433-WT100 3.0dBi High Gain 433MHz Antenna

Product Description

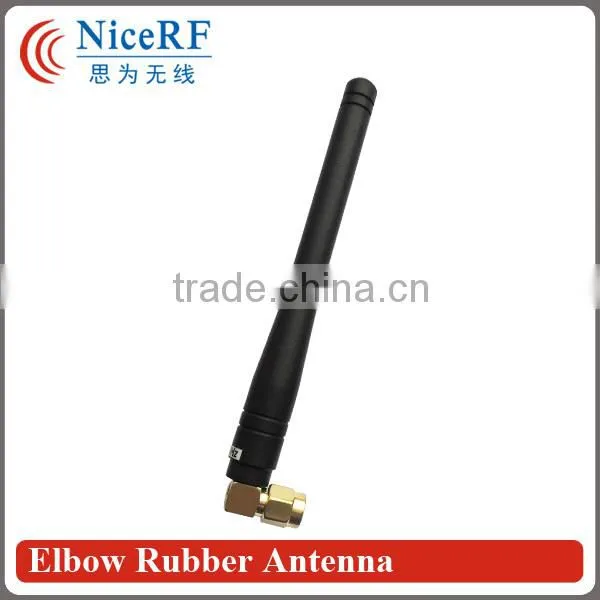

SW433-WT100 is a rubber antenna with right angle. It is a dedicated antenna which designed for a wireless communication system (433MHz).It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and aging ability.

Features:

*Frequency range:433 MHz (+ / -5)

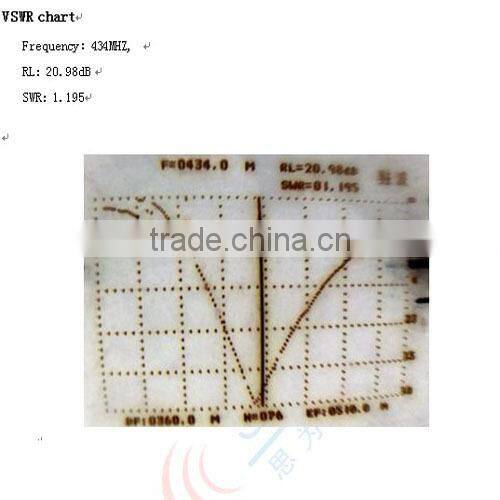

*VSWR: <= 1.5
*Input impedance: 50 Ω
*Maximum power: 10 W
*Gain: 3.0 dBi
*Polarization: vertical polarization

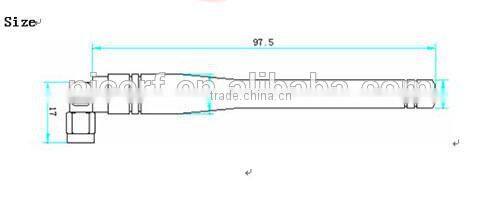

*Height: 100mm
*Lead wire: no
*Interface form: SMA-JW

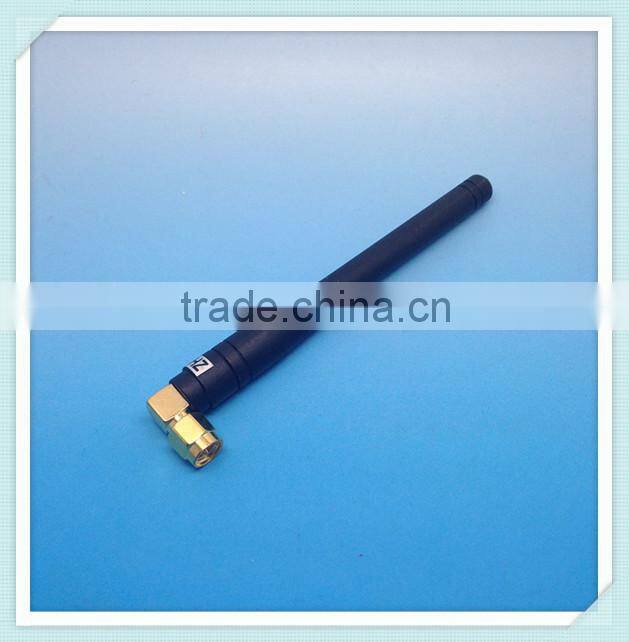

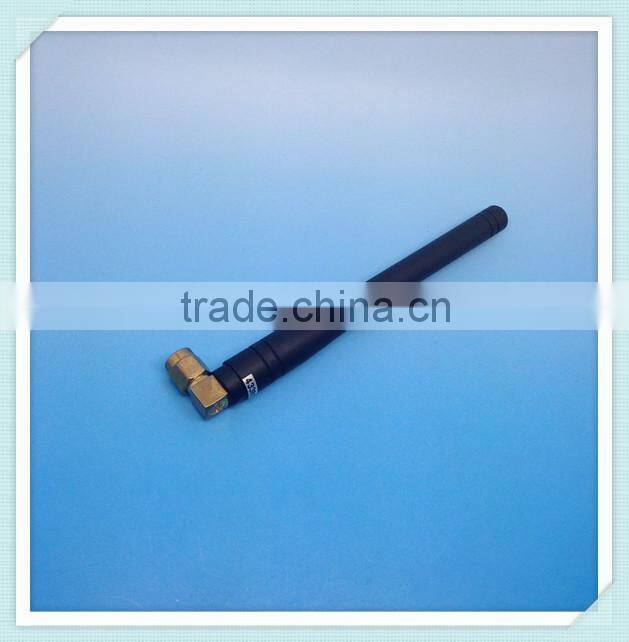

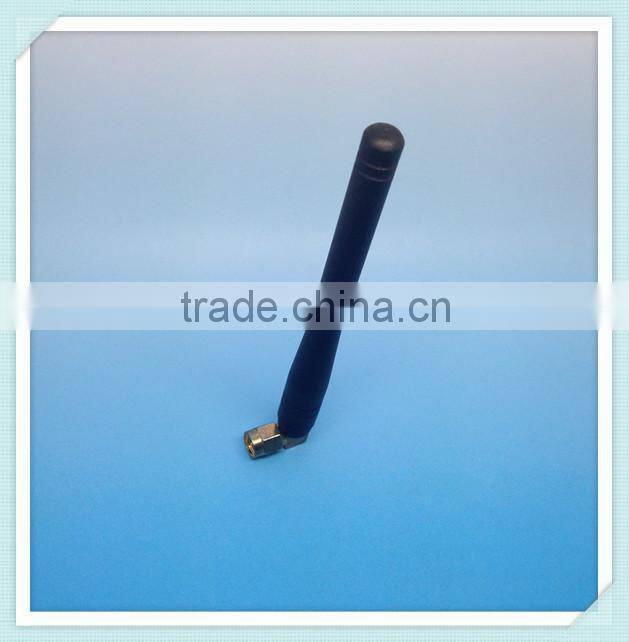

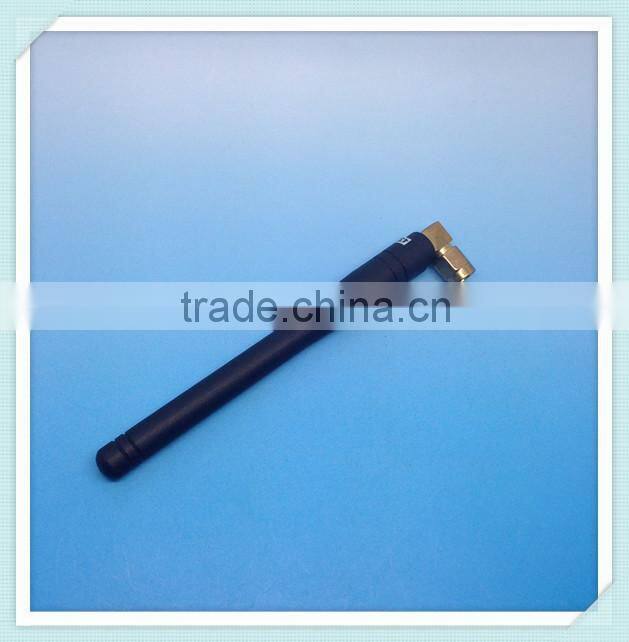

Product show:

Related Products

Product type

Product

Seal

Interface

With MCU

Frequency

Modulation

Power

Sensitivity

Voltage

Sleep current

Speed

Channels

Visible Distance in open area (M)

Volume(mm)

(MHz)

(dBm)

(V)

(kpbs)

wireless data transceiver

SV610

Module only

Serial port TTL

Yes

433/470/ 868/915

GFSK

100 mw

-121

2.8~6.0

< 5 uA

25 mA

95mA @ 20dBm

1.2~38.4

1400

26.8*16*2.4

SNR610

-1~+20dBm

SV611

With shielding case

Serial port TTL

Yes

433/470/ 868/915

GFSK

100 mw

-121

2.8~6.0(TTL)

< 5 uA

25 mA @ TTL

95mA @ 20dBm

1.2~38.4

1400

43.25*26.45*9.4

SNR611

Serial port 232

-1~+20dBm

4.5~5.5V(232)

32.7 Ma @ 232

Serial port 485

4.5~5.5V(485)

34 mA @ 485

wireless network transceiver

SV612

Aluminium

Serial port TTL

Yes

433/470/ 868/915

GFSK

100 mw

-121

2.8~6.0(TTL)

< 5 uA

25 mA @ TTL

95mA @ 20dBm

1.2~38.4

1400

62.5*43.2*14.3

SNR612

Serial port 232

-1~+20dBm

4.5~5.5V(232)

32.7 mA @ 232

Serial port 485

4.5~5.5V(485)

34 mA @ 485

SV613

Aluminium

USB serial port

Yes

433/470/ 868/915

GFSK

100 mw

-121

4.5~5.5

< 5 uA

26 mA

95mA @ 20dBm

1.2~38.4

1400

62.5*43.2*14.3

SNR613

-1~+20dBm

SV614

Aluminium

RS232 serial

Yes

433/470/ 868/915

GFSK

100 mw

-121

4.5~5.5

< 5 uA

33 mA

95mA @ 20dBm

1.2~38.4

1400

62.5*43.2*14.3

SNR614

-1~+20dBm

SV650

With shielding case

Serial port TTL

Yes

433/470/ 868/915

GFSK

500 mw

-121

3.3~7.5

< 5 uA

25mA @ TTL

350 mA @ 27dBm

1.2~38.4

1400

38*20*4

SNR650

Serial port 485

20~27dBm

34 mA @ 485

SV651

With shielding case

Serial port TTL

Yes

433/470/ 868/915

GFSK

500 mw

-121

2.8~6.0(TTL)

< 5 uA

25 mA @ TTL

350 mA @ 27dBm

1.2~38.4

3000

50.4*39*7.6

SNR651

Serial port 232

20~27dBm

4.5~5.5V(232)

32.7 mA @ 232

Serial port 485

4.5~5.5V(485)

34 mA @ 485

SV652

Aluminium

Serial port TTL

Yes

433/470/ 868/915

GFSK

500 mw

-121

2.8~6.0(TTL)

< 5 uA

25 mA @ TTL

350 mA @ 27dBm

1.2~38.4

3000

62.5*43.2*14.3

SNR652

Serial port 232

20~27dBm

4.5~5.5V(232)

32.7 mA @ 232

Serial port 485

4.5~5.5V(485)

34 mA @ 485

SV653

Aluminium

USB serial port

Yes

433/470/ 868/915

GFSK

500 mw

-121

4.5~5.5

< 5 uA

26 mA

350 mA @ 27dBm

1.2~38.4

3000

62.5*43.2*14.3

SNR653

20~27dBm

SV654

Aluminium

RS232 serial port

Yes

433/470/ 868/915

GFSK

500 mw

-121

4.5~5.5

< 5 uA

33 mA

350 mA @ 27dBm

1.2~38.4

3000

62.5*43.2*14.3

SNR654

20~27dBm

SV6202

Aluminium

Serial port TTL

Yes

433/470/ 868/915

GFSK

2 W

-121

4.5~6.5(TTL)

< 5 uA

25 mA @ TTL

900 mA @ 33dBm

1.2~38.4

5000

62.5*43.2*14.3

SNR6202

Serial port 232

13~33dBm

4.5~5.5(232)

32.7 mA @ 232

Serial port 485

4.5~5.5(485)

34 mA @ 485

SV6300

Aluminium

Serial port TTL

Yes

433/470/ 868/915

GFSK

3 W

-121

9~18

< 5 uA

< 30 mA

< 0.6 A

1.2~38.4

6000

93*84*26

SNR6300

Serial port 232

15~35dBm

Serial port 485

SV6500

Aluminium

Serial port TTL

Yes

433/470/ 868/915

GFSK

5 W

-121

9~18

< 5 uA

< 30 mA

< 1.8 A

1.2~38.4

8000

93*84*26

SNR6500

Serial port 232

30~37dBm

Serial port 485

Front-end transceiver

RF4421

Module only

SPI

433/868/915

FSK

-105

2.2~3.8

0.3 uA

11 mA

22 mA @ 7dBm

115.2(digital mode)

300

17*16.5*2

Customizable

256(Simulation Mode)

RF4431

Module only

SPI

433/868/915

FSK

20 mw

-118

1.8~3.6

< 1 uA

18.5 mA

35 mA @ 13dBm

0.123~256

600

17*16.5*2

Customizable

GFSK

OOK

RF4432

Module only

SPI

433/868/915

FSK

100 mw

-121

1.8~3.6

< 1 uA

18.5 mA

85 mA @ 20dBm

0.123~256

1400

17*16.5*2

Customizable

GFSK

OOK

RF4432PRO

With shielding case

SPI

433/868/915

FSK

100 mw

-121

1.8~3.6

< 1 uA

18.5 mA

85 mA @ 20dBm

0.123~256

1400

17.3*17*2.6

Customizable

GFSK

OOK

RF4432F27

With shielding case

SPI

433/868/915

FSK

500 mw

-122

3.3~7.0

< 3 uA

21 mA

350 mA @ 27dBm

0.123~256

2500

38*20*4

Customizable

GFSK

OOK

RF4463PRO

With shielding case

SPI

433/868/915

(4)FSK

100 mw

-126

1.8~3.6

< 0.1uA

10.7 mA

85 mA @ 20dBm

0.123~1000

1800

17.3*17*2.6

Customizable

(4)GFSK

13.5 mA

OOK

ASK

RF4463F30

With shielding case

SPI

433/868/915

(4)FSK

1 W

-126

3.3~7.0

< 2 uA

10.7 mA

550 mA @ 30dBm

0.123~1000

3500

38*20*4

Customizable

(4)GFSK

13.5 mA

OOK

ASK

RF1212

With shielding case

SPI

433/868/915

FSK

12.5 dBm

-110

2.1~3.6

< 1 uA

3 mA

25 mA @ 10dBm

0.78~150(@FSK)

600

17.3*17*2.6

Customizable

OOK

RF2401

Module only

SPI

433/868/915

FSK

-20~+10 dBm

-115

1.9~3.6

< 0.1 uA

7 mA

36 mA

1.5~72

400

13.56*13.8*2

Customizable

ASK

STX881

Module only

——

315/433

ASK

7.5dBm @ 3V

1.2~13

< 0.01 uA

—

20 mA @ 5V,13dBm

0.1~9.6

According to the power support and the attached decode

12*15.2*5.2

Transmitter module

13dBm @ 5V

20dBm @ 12V

STX882

Module only

——

315/433

ASK

13dBm @ 2.4V

1.2~6

< 0.01 uA

—

34 mA @ 3.3V,15dBm

0.1~9.6

12*15.2*5.2

15dBm @ 3V

20dBm @ 5V

STX887

Module only

——

315/433

ASK

10 dBm @ 3V

1.8~5.5

< 1 uA

—

24.5mA @ 3V

0.1~9.6

12*15.2*5.2

17 dBm @ 5V

STX888

Module only

——

315/433

ASK

10 dBm @ 3V

1.8~5.5

< 1 uA

—

24.5mA @ 3V

0.1~9.6

12*15.2*5.2

17 dBm @ 5V

Ask Receiver module

SRX882

Module only

——

315/433

ASK

-110

2.4~5.5

< 2 uA

2.7mA @ 315MHz

—

0.1~9.6

35*10.4*5

OOK

2.9mA @ 433MHz

SRX887

Module only

——

315/433

ASK

-110

3.0~5.5

< 1 uA

2.9mA @ 315MHz

—

0.1~9.6

33.1*9.1*5

OOK

4.0mA @ 433MHz

Name

Seal

Interface

With MCU

Power

Sleep consumption

Current

Resolution

Pedometer error

Applicaton

Volume

pedometer module

(V)

STP100

IC set

Impulse output

2.3~3.6

<5 uA

30uA @ 3V

±3% steps @ uniform motion

None-wrist pedometer product

MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm

3D sensor seal: LGA-12, Size:2*2*1.0mm

STP101

IC set

Impulse output

2.3~3.6

<5 uA

30uA @ 3V

±3% steps @ uniform motion

Wrist pedometer product

MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm

3D sensor seal: LGA-12, Size:2*2*1.0mm

STP200

IC set

IIC

2.3~3.6

<5 uA

60uA @ 3V

±3% steps @ uniform motion

None-wrist pedometer product

MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm

3D sensor seal: LGA-12, Size:2*2*1.0mm

STP201

IC set

IIC

2.3~3.6

<5 uA

60uA @ 3V

±3% steps @ uniform motion

Wrist pedometer product

MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm

3D sensor seal: LGA-12, Size:2*2*1.0mm

STP156

module only

Impulse output

2.3~3.6

<3 uA

30uA @ 3V

±5% steps @ uniform motion

3D pedometer product

11.26*11.4*1.8

Type	Spring antennas
Frequency band	433 MHz				490 MHz		868 MHz	915 MHz
Antenna name	SW433-TH32DN	SW433-TH10	SW433-TH22	SW433-TH32	SW490-TH10	SW490-TH14	SW868-TH13	SW915-TH12
Material	nickel-plated stainless	Copper	Golden-plated stainless	Copper	Copper	Copper	Copper	Copper
VSWR	<=1.5	<=1.8	<=1.5	<=1.5	<=1.8	<=1.8	<=1.5	<=1.5
Gain(dBi)	2.15	2.15	2.15	2.15	2.15	2.15	2.15	2.15
Height(mm)	32	10	22	32	10	14	13	12

Type	Rubber antennas
Frequency band	433 MHz
Antenna name	SW433-ZT28	SW433-ZT100	SW433-WT36	SW433-WT100	SW433-ZD115	SW433-ZB165	SW433-ZT100DN	SW433-WT100DN
Material	Golden-plated	Golden-plated	Golden-plated	Golden-plated	Golden-plated	Golden-plated	Nickel-plated	Nickel-plated
VSWR	<=2.0	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5
Gain(dBi)	2.15	3	2.5	3	2.15	3	3	3
Interface form	SMA(Build-in)	SMA(Build-in)	SMA-JW	SMA-JW	SMA	SMA	SMA	SMA-JW
Height(mm)	28	100	45	100	115	160	100	100

Type	Rubber antennas
Frequency band	409 MHz	450 MHz		470 MHz	490 MHz	868 MHz		915 MHz
Antenna name	SW409-ZT100	SW450-ZT100DN	SW450-WT100DN	SW470-ZT100	SW490-ZT100	SW868-ZT100	SW868-WT100	SW915-ZT100
Material	Golden-plated	Nickel-plated	Nickel-plated	Golden-plated	Golden-plated	Golden-plated	Golden-plated	Golden-plated
VSWR	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5
Gain(dBi)	3	3	2.5	3	3	3	3	3
Interface form	SMA	SMA	SMA-JW	SMA	SMA	SMA	SMA-JW	SMA
Height(mm)	100	100	100	100	100	100	100	100

Type	Rubber antenna
Frequency band	915 MHz	880~960NHz	2400 MHz
Antenna name	SW915-WT100	SWGPRS-ZT186	SW2400-ZT48	SW2400-WT106	SW2400-ZD115
Material	Golden-plated	Golden-plated
VSWR	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5
Gain(dBi)	3	3	2.5	3	3
Interface form	SMA-JW	SMA	SMA/J	SMA/JW	SMA
Height(mm)	100	186	48	106	115

Type	Sucker antenna						Yagi antenna
Frequency band	433 MHz			490 MHz	868/915 MHz	2400 MHz	433MHz
Antenna name	SW433-XPXM	SW433-XP-WP	SW433-XP-MAX	SW490-XP1M	SW868-XP1M	SW2400-XP1M	SW433-BM-11DB
Antenna name	SW433-XPXM	SW433-XP-WP	SW433-XP-MAX	SW490-XP1M	SW915-XP1M	SW2400-XP1M	SW433-BM-11DB
VSWR	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5	<=1.5
Gain(dBi)	3	2.15	5.5	3	3	7	11
Interface form	SMA-J	MCX/J	SMA-JW	SMA-J	SMA-J	SMA-J or customize	(TNC Male)/SMA/BNC
Height(mm)	126	111	1000	126	126	220	86
Lead wire(M)	1~6m to choose	3m(customizable)	3m/5m	1m(customizable)	1m(customizable)	1m(customizable)

Contact Us

NiceRF Wireless (Shenzhen) Technology Co., Ltd.: Contact nameGuangHua Song
Chat Now; Phone86-0755-61596687; AddressBaoAn, Shenzhen, Guangdong

*Email
Please enter Your valid email address.
*To

GuangHua Song
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

2.4G transceiver module	Accessories	Antenna	ASK module
Demo board	FSK/GFSK module	GFSK module with MCU	New Products
Other products	Sensor series	USB bridge board	Wireless network module
Wireless switch control module

2015 Rubber Elbow Rod Antenna SW433-WT100 3.0dBi High Gain 433MHz Antenna

You May Like

Product Details

Product Description

Contact Us

Product Categories

New Products

Popular Searches

Recommended Products

Find Similar Products By Category
