Help CenterHigh Power Dual Band Antenna Omin Antenna 30dBi SMA Connector Outdoor Car GSM/WIFI Antenna
Related Products
-
Antena Gps Para Tablet With Fakra Connector Antenna GPS+GSM Combined AntennaUS$ 3 - 4MOQ: 100 Pieces -
(manufactory)Hotselling GPS GSM Antenna With SMA ConnectorUS$ 3 - 4.5MOQ: 1 Piece
-
Low Noise 29dBi Antenna Omni GSM GPS Antenna For Navigation System Car GPS Antenna For Sinco 410CUS$ 2.5 - 4.5MOQ: 1 Chain
-
Fast Delivery 3dBi Antenna External GPS Track GSM Car Antenna For Sinco 410C With SMA Male/RP-SMAUS$ 2.5 - 4.5MOQ: 1 Chain
-
Signal Strength 29dBi Antenna High Gain GPS GSM Combine Satellite Antenna For Nokia N810 With RP-SMA/SMAUS$ 2.5 - 4.5MOQ: 1 Chain
Specifications
30dBi SMA connector outdoor car GSM/WIFI antenna1.30dBi gain
2.direct manufactory
3.Free samples
4.Low price

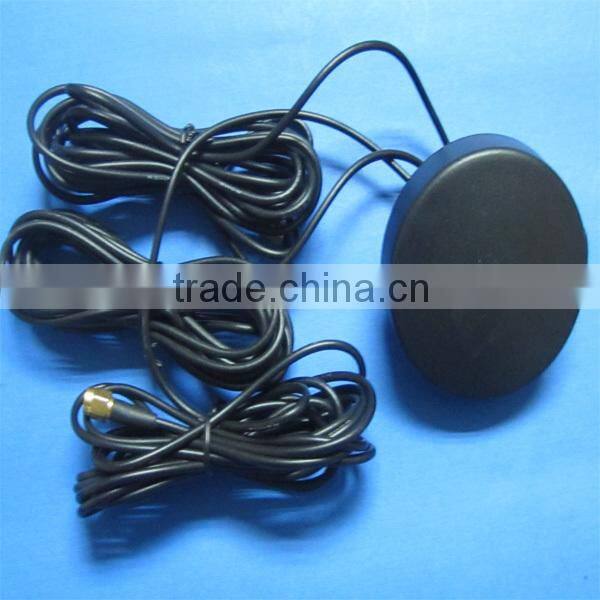

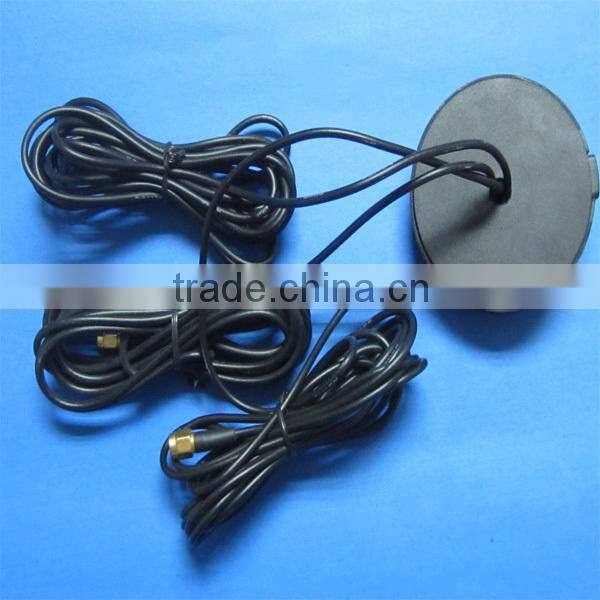

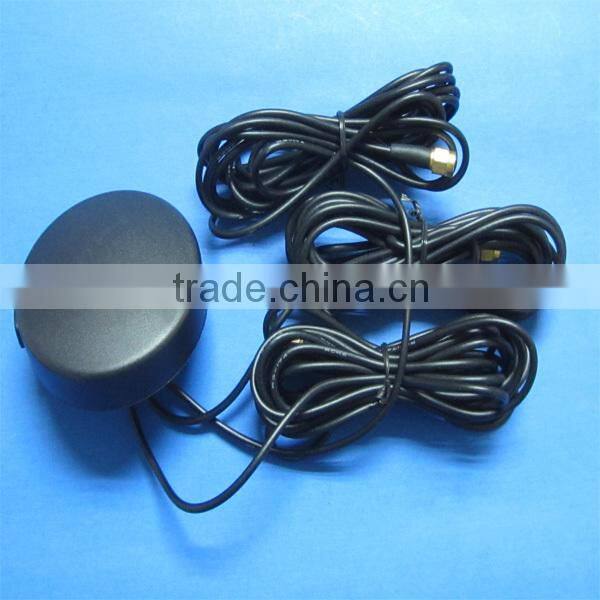

High power dual band antenna omin antenna 30dBi SMA connector outdoor car GSM/WIFI antenna
Application
1.For GPS system,passive antenna,made of Ceramic Microstrip Substrate
2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide
3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.
Specification
Antenna |
Center Frequency |
1575.42±1MHz/800/1800/1900/2100mhz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
3dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
20*20*4mm |
|
LNA |
Gain |
26±2dB |
Noise Figure |
<1.3 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
10~26mA |
|
V.S.W.R |
<2.0 |
|
Mechanical |
Cable |
RG174 |
Connector |
SMA/MCX/FAKRA or others |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet |
|
Environmental |
Operating Temperature |
-40°C~+85°C |
Relative Humidity |
Up to 95% |
|
Ingress Protection |
IP67 |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
GSM GPS active antenna ,gsm gps active antenna ,gsm gps active antenna,gsm gps active antenna
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.!!!
gps+gsm antenna ,gsm antenna ,gps antenna ,gps+gsm antenna ,gps gsm antenna ,antenna
