Yetnorson (Manufactory) New small gps/gsm combo antenna for tracker device
Application
1.For GPS system,passive antenna,made of Ceramic Microstrip Substrate
2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide
3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.
1. (Manufactory) New small gps/gsm combo antenna for tracker device form information
GPS GSM Antenna | Center Frequency | 1575.42±1MHz 824-960Mhz ,1710-2170mhz |
Band Width | CF±5MHz | |
Polarization | RHCP | |
Gain | 29dBic(Zenith) | |
V.S.W.R | <1.5 | |
Impendance | 50Ω | |
Axial Ratio | 3dB(max) | |
Dimension | 20*20*4mm | |
LNA | Gain | 26±2dB |
Noise Figure | <1.3 | |
Filter Insertion Loss | <3dB | |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
Supply Voltage | 2.2~5V DC | |
Current Consumption | 10~26mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RG174 |
Connector | SMA/MCX/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Magnet | |
Environmental | Operating Temperature | -40°C~+85°C |
Relative Humidity | Up to 95% | |
Ingress Protection | IP67 | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant |
GSM+GPS multi-band antenna, combination antenna,
Model: XQJ-1575/900-1800M-A
Size: 80x14mm
GPS antenna part
- Center Frequency:1575.42MHz
- Polarization: RHCP (right hand circular polarization)
- LNA Gain: 28dB typical
- Noise figure: 1.5 maximum
- Bandwidth: 10MHz
- VSWR: 2.0 maximum
- Impedance:50 Ohms
- Power consumption: 2.7 to 5.5V DC/28mA
- Cable and connector: 3m RG-174 with RP SMA male connector
- Operating temperature: -35 to +85 degrees Celsius
- Storage temperature: -40 to +95 degrees Celsius
- Dimensions-mm: 80*14
GSM antenna part
- Frequency: 890-960MHz/ 1710-1880MHz
- Polarization: vertical
- Gain: 3dBi
- VSWR: 2.0 maximum
- Impedance: 50 Ohms
- Power handling capacity: 10W maximum
- Cable and connector: 3M RG174 with SMA male connector
- Operating temperature: -35 to +85 degrees Celsius
- Storage temperature: -40 to +95 degrees Celsius
- Dimension-mm: 80*14

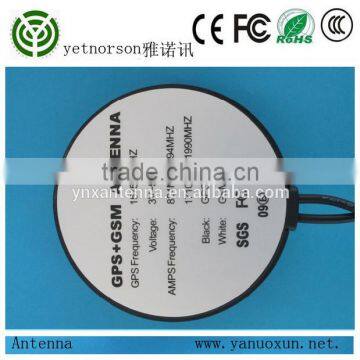

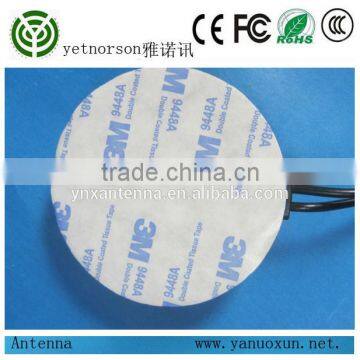

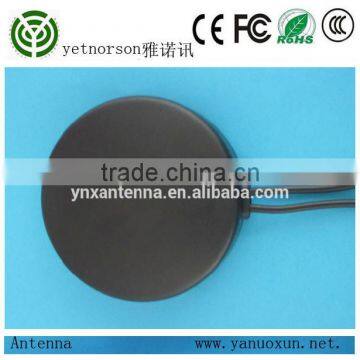

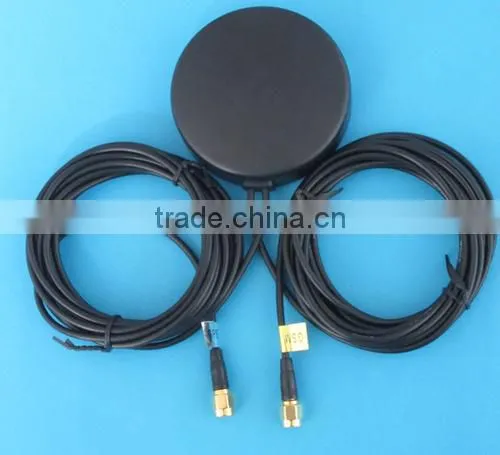

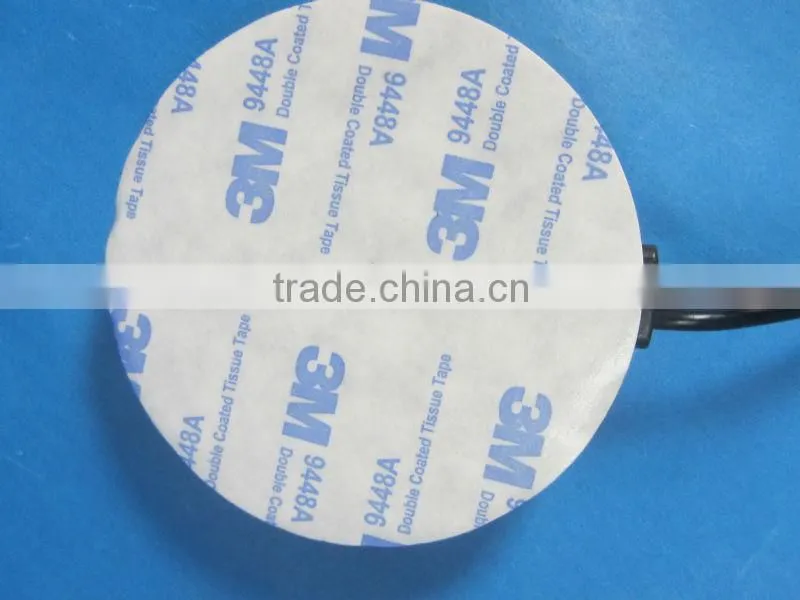

2. (Manufactory) New small gps/gsm combo antenna for tracker device detial photos
3. High Quality GPS Antenna testing report
4.Our Company and Factory detial pictures
5. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
6. Shipment:
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
7. Refund & Replacement
1. We can guarantee the product quality within 3 months.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
GSM GPS active antenna ,gsm gps active antenna ,gsm gps active antenna,gsm gps active antenna
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.!!!
gps+gsm antenna ,gsm antenna ,gps antenna ,gps+gsm antenna ,gps gsm antenna ,antenna
