(Manufactory)good Performance Gps Gsm Antenna With Fakra c and Fakra d Connector

(Manufactory)good Performance Gps Gsm Antenna With Fakra c and Fakra d Connector thumbnail-1
(Manufactory)good Performance Gps Gsm Antenna With Fakra c and Fakra d Connector photo-1
US$ 4 - 6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yetnorson
Model Number:
YNX-P002
Contact Supplier Request Quote Chat Now
Shenzhen Yetnorson Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Yetnorson
Model Number YNX-P002



 (Manufactory)good performance gps gsm antenna with fakra c and fakra d connector

(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector

Key Features of good performance  gps gsm antenna


GPS GSM Antenna

Center Frequency

1575.42±1MHz (GPS)

824~960Mhz 1720~1960MHz (GSM)

1960 ~2170MHz(3G)

Band Width

CF±5MHz

Polarization

RHCP

Gain

28dBi (GPS)

3-4dBi (GSM)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

D70*H20mm

LNA

Gain

26±2dB

Noise Figure

<1.3

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

10~26mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40°C~+85°C

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant







Key Features of good performance  gps gsm antenna
GPS antenna part
  • Center Frequency:1575.42MHz
  • Polarization: RHCP (right hand circular polarization)
  • LNA Gain: 28dB typical
  • Noise figure: 1.5 maximum
  • Bandwidth: 10MHz
  • VSWR: 2.0 maximum
  • Impedance:50 Ohms
  • Power consumption: 2.7 to 5.5V DC/28mA
  • Cable and connector: 3m RG-174 with Fakra connector
  • Operating temperature: -35 to +85 degrees Celsius
  • Storage temperature: -40 to +95 degrees Celsius
  • Dimensions-mm: D70*H22

 GSM 3G antenna part

  • Frequency: 890-960MHz/ 1710-1960MHz /1960-2170MHz
  • Polarization: vertical
  • Gain: 3-4dBi
  • VSWR: 2.0 maximum
  • Impedance: 50 Ohms
  • Power handling capacity: 10W maximum
  • Cable and connector: 3M RG174 with Fakra connector
  • Operating temperature: -35 to +85 degrees Celsius
  • Storage temperature: -40 to +95 degrees Celsius
  • Dimension-mm:  D70*H22

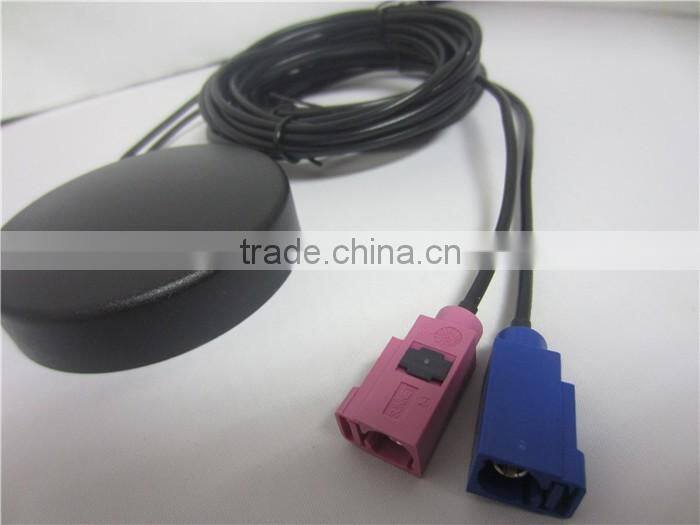

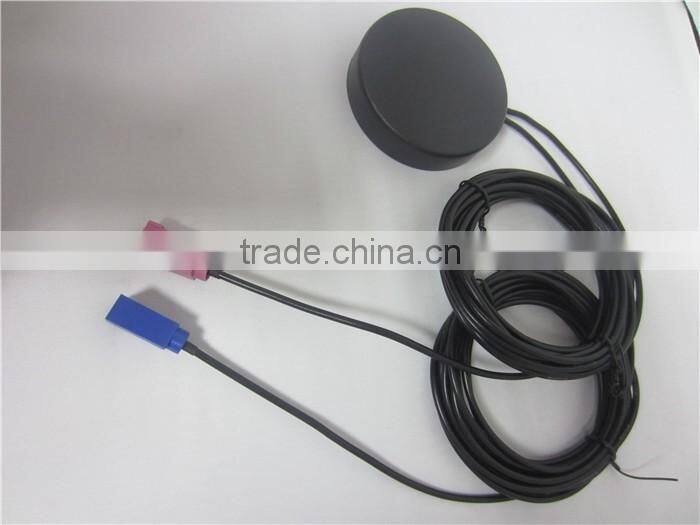

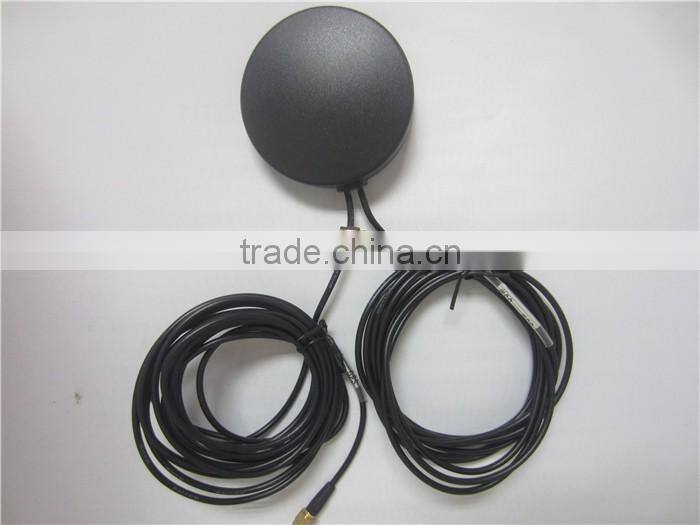

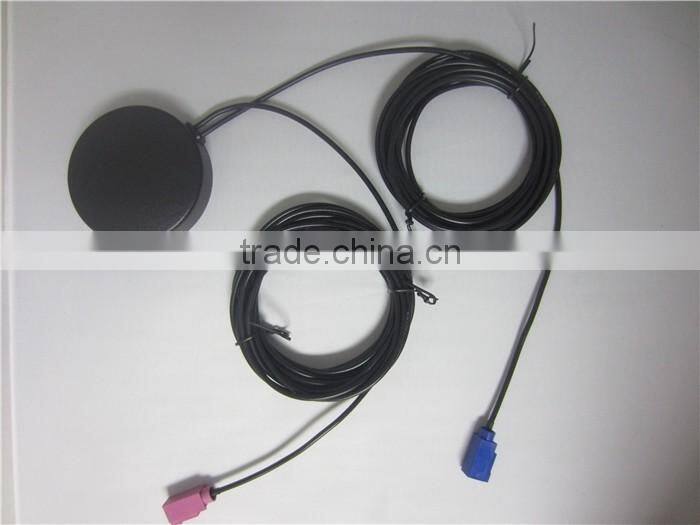

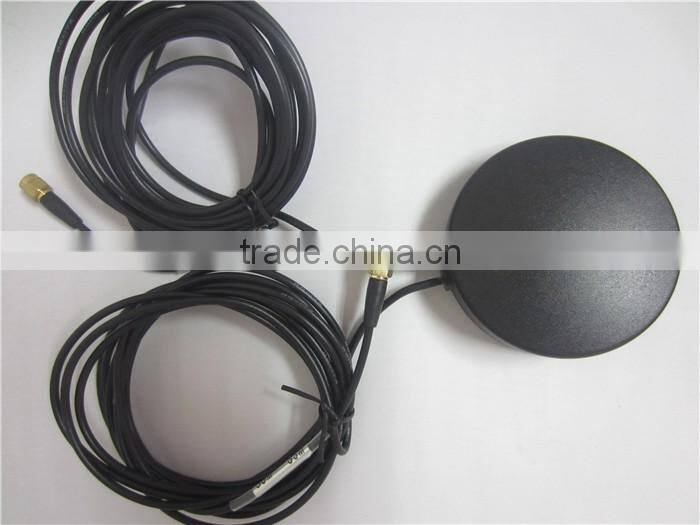

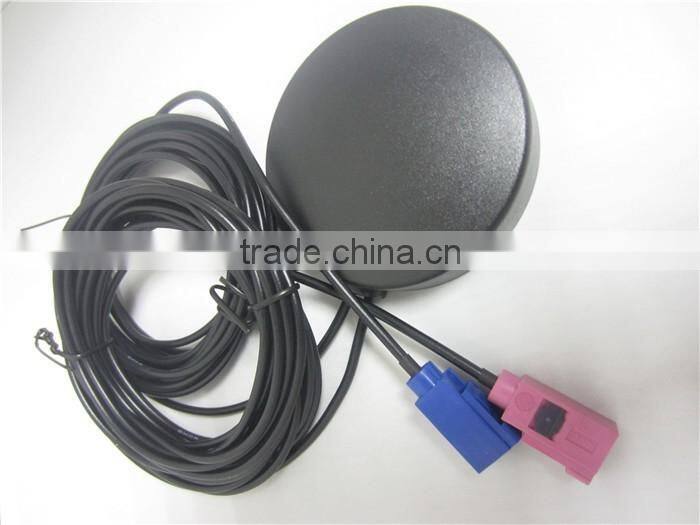

 -Product pictures of good performance  gps gsm antenna

(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector

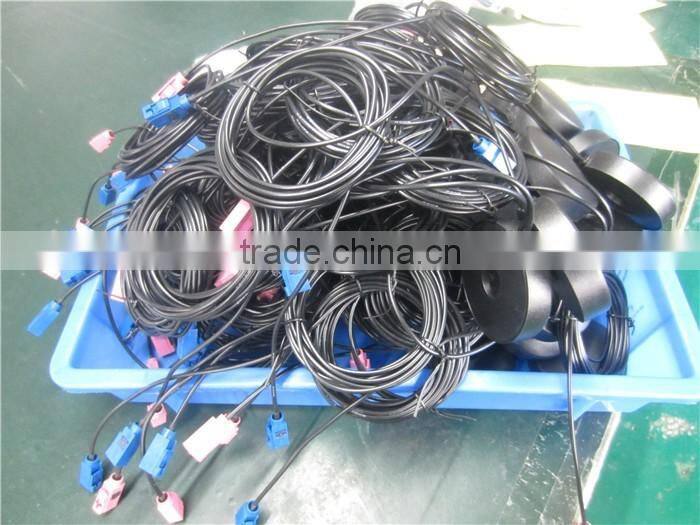

Production of good performance  gps gsm antenna

(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector



Every antenna has to go through strict inpestion by QC before packing





Company Information






We excute strict quality control system, begin with the raw material to the final finished goods inspection and packgaing, we have professioanl QC to check every step, we make sure that the customers get the well packed and workable goods.


Signal get us get closer with each other. Welcome to inquiry us.



Payment & Shipment &Lead Time

(Manufactory)good performance gps gsm antenna with fakra c and fakra d connector



































Payment Term
T/T/Western union/Paypal/Escrow/MoneyGram
As for samples, 100% full payment before production
As for official order, 30% deposit and 70% balance paid before delivery

Shipment
DHL/Fedex/UPS/TNT/EMS

Lead Time
3-5 working days for samples, 6-9 working days for bulk order




Certification

Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
If you have any question, please feel free to contact us.



Why choose us ?

1.OEM & ODM are warmly welcome

2.Good service and delivery on time

3. high gain with luxury design

4. several years manufacturing experience





If You have Any Questions, Feel Free to Contact me



skype: yanuoxun
