Product Overviews

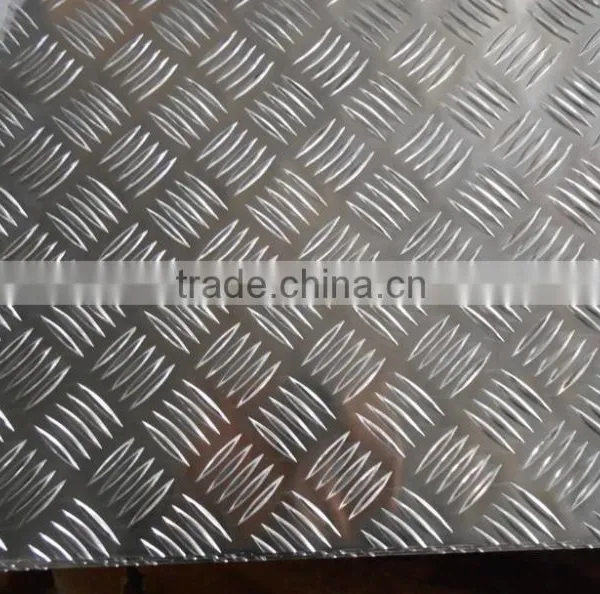

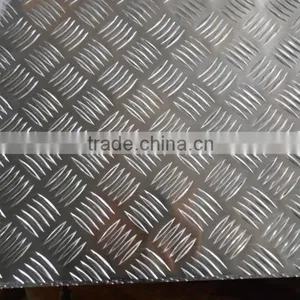

aluminum checker plate 5083 H32 H34 H36 H38 with 5 bar diamond
Product |
aluminum tread/checkered plate/sheet |
Alloy NO. |
1000 series: 1050 1060 1100 1200 and other 1000 series 3000 series: 3003 3004 and other 3000 series 5000 series: 5005 5052 5083 5754 and other 5000 series |
hardness state |
1000series:O H12 H14 H16 H18 H24 H26 5000series:O H32 H34 H36 H38 H111 H114 |
Product size |
thickness:0.8mm-10mm Width:600mm-2200mm |
Package |
Standard seaworthy export packing: wooden pallets with plastics protection |
Payment Terms |
T/T or L/C at sight |
Trade terms |
FOB,CIF,CFR,EXW |
Delivery time |
within 20 days |
Port of loading |
Qingdao port,China |
Chemistry composition
5052 Chemistry composition | |||||||||
Element |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.25 |
≤0.40 |
≤0.10 |
≤0.10 |
2.2-2.8 |
0.15-0.35 |
--- |
≤0.10 |
Remainder |
5083 Chemistry composition | |||||||||
Element |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.4
|
≤0.40 |
≤0.10 |
0.4~1.0 |
4.0-4.9 |
0.05~0.25 |
≤0.15 |
≤0.25 |
Remainder |
5754 Chemistry composition | |||||||||
Element |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.4 |
≤0.4 |
≤0.1 |
≤0.5 |
2.6-3.6 |
≤0.3 |
≤0.15 |
≤0.2 |
Remainder |
Features of Aluminum Tread Plate
Light weight transport sector is required,Disassembling,Convenient assembling,the best comer of an aluminum alloy step. Increase the energy-saving effect
Aluminum Tread Plate with Diamond / Bar / Pointer Patterns :

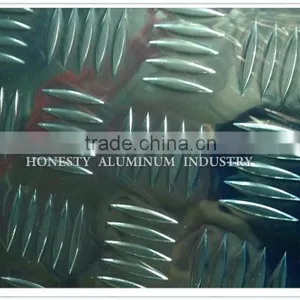

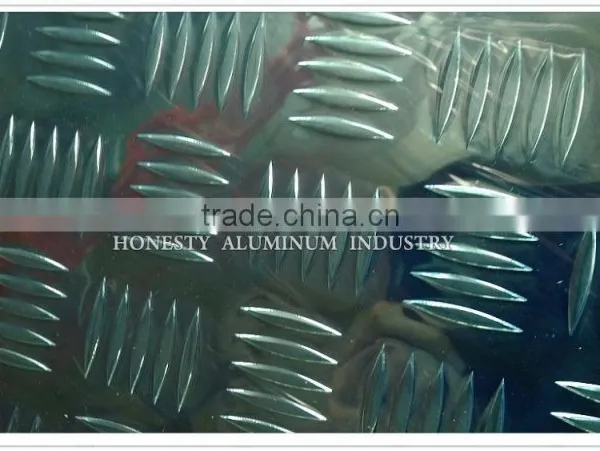

big 5 bars
small 5 bars

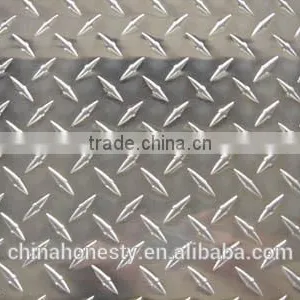

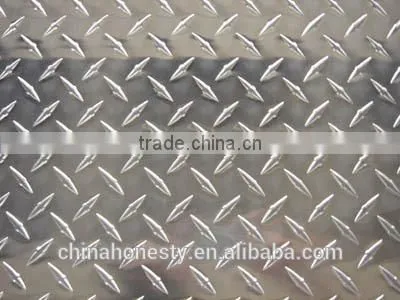

diamond
3 bars
pointer etc.
Application
Applicatiom
1] Vehicle
Characteristics and benefits: light weight transport sector is required, the best comer of an aluminum alloy step. Increase the energy-saving effect.
Applications: Tread plate floor, such as van-type vehicle catwalk flooring, wood step of the bus or truck, train inspection hole lid, tank car, the car cold storage.
2] Ship
Characteristics and benefits: because the excellent corrosion resistance in seawater, requires no resistance such as repainting. It can be used with confidence for many years.
Applications: corridor and bridges over the lid and floors, stairs, cabin deck, fish tank, gangway to the floating dock.
Our quality
1. Equipments
> Our factory is engaged in the manufacturing of cast and precision aluminum alloy sheet, all
with exworks aluminum sheet price.
2. Excellent Quality
Business objective: Integrity-based, quality first, customers supreme.
> There’re relevant standards for our staff to process from purchasing raw material, manufacturing, final product inspecting, to shipment, just to ensure none of
unqualified product.
> Our precision aluminum sheet and other aluminum products are verified by ISO 9001, GB/T, DIN EN, ASTM B209.
Company |
Jinan Honesty Aluminum Industry Co., Ltd |
Established |
1998 years |
Oversea market |
South America, Southeast Asia, Africa, Oceania, Mid East |
Hot sale market and product |
Australia 1060/H0, Malaysia1100/H24,3003/H14 Indonesia 5052/H32, Kuwait 3003/H14 Brazil 1350/H0 |
Certificate |
ISO9001:2008 ISO 14001:2004 OHSAS 18001:2007 |
Logo |
Can be ours or can customized by customers |
Quality control |
We have the certificate of ISO and SGS and we have professional QC Dpat |
Packaging & Shipping
1. Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2. The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets, hardboard, Kraft paper and plastic. And fill more desiccants into package.
Company information
Company view
Jinan Honesty Aluminum Industry Co., Ltd was established on 1998 and focus on aluminum
product for more than 15 years.Our mainly product are aluminum plates, aluminum sheets , aluminum embossed sheets, aluminum coils, aluminum alloy sheets, aluminum strips, aluminum pipes/tubes and aluminum sticks/rods.
Services
Our Promise
l High quality stainless steel with reasonable price.
l Wide excellent experiences with after-sale service.
l Every process will be checked by responsible QC.
l Professional packing teams which keep every packing safely.
l Trial order can be done in one week.
l Samples can be provided as your requirements.
Why honesty
Our company adheres to the tenet of "survival by quality, build brand by reputation, win market by prices
and innovate to develop", has developed international markets and the products are well sold in many countries
as Singapore, Indonesia, South Korea, Dubai, Pakistan, Sri Lanka, Vietnam, Iran, Malaysia, Mexico, Chile, Brazil,
Holland, Italy, Belgium, Russia, Moldova, Paraguay, Uruguay, Germany, Spain, USA etc. More than 40 countries.;
commonly we have more than 500tons stainless steel materials in stock; so w can arrange the soonest delivery too;
also we hope we will have chance to cooperate with your esteemed company!
FAQ
Q: How can you ensure the quality of products?
A: We have a very strict quality control system, in our factory we have 248 quality control inspectors and each of them have many years of working experiences. Each machine has 2 quality control inspectors and every part of production process have a senior inspector even in the packaging part.
Q: What can we expect from Honesty Aluminum Industry ?
A: Superior quality, reasonable price, exclusive service, and good after sale guarantee.
Q: Can you do customized design and size?
A: Yes, ODM &OEM are available.
Q: When can we get samples and goods?
A: Samples will be sent immediately if have stock, make new will take 2-3days.
Goods will be shipped within 20 days after order confirmed.
Contact:
Whatsapp/Mob: +86 15552871440
