Product Description
5005 5052 5754 5083 Aluminum tread plate with competitive advantage
(1)Alloy:1000series:1050 1060 1070 1100 1200 and other 1000series
3000series:3003 3004 and other 3000series
5000series:5005 5052 5754 5083 5086 and other 5000series
(2)Temper: O H H12 H14 H18 H24 H32 H34
(3)Thickness(mm):0.2mm-10mm
(4)Diameter:50mm-1500mm
(5)Main application:decorative, shipbuilding and architectural applications,stairs
(6) Quality of material: Totally free from defects like White Rust, Oil Patches, Roll Marks, Edge Damage, Camber, Dents, Holes, Break Lines, Scratches and free from coil set.
(7)Surface Finish:Bright & smooth surface, without flow lines, slightly oiled to avoid White rusting.
(8)payment term:T/T,L/C
(9)chemistry composition
5083 Chemistry composition | |||||||||
0.05~0.25 |
≤0.15 |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.4
|
≤0.40 |
≤0.10 |
0.4~1.0 |
4.0-4.9 |
|
|
≤0.25 |
Remainder |
5052 Chemistry composition | |||||||||
Element |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.25 |
≤0.40 |
≤0.10 |
≤0.10 |
2.2-2.8 |
0.15-0.35 |
--- |
≤0.10 |
Remainder |
5754 Chemistry composition | |||||||||
Element |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ti |
Zn |
Al |
Standard Value |
≤0.4 |
≤0.4 |
≤0.1 |
≤0.5 |
2.6-3.6 |
≤0.3 |
≤0.15 |
≤0.2 |
Remainder |
(10)Equipment
Packaging & Shipping

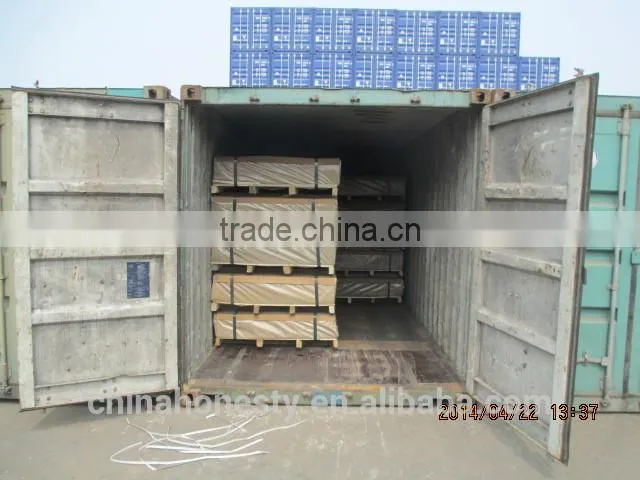

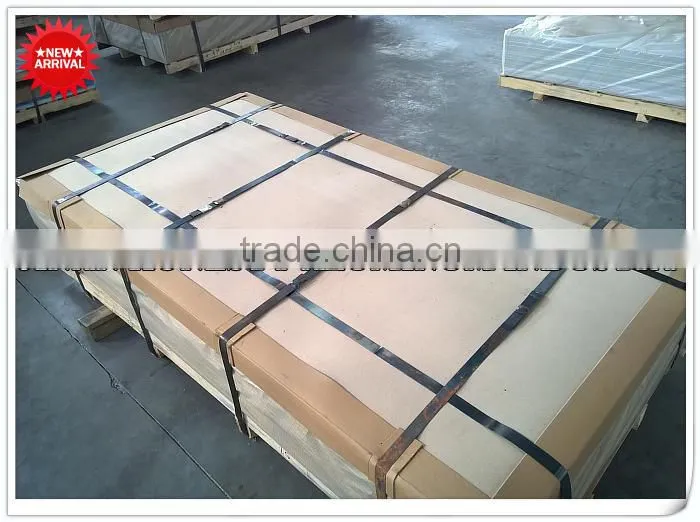

1. Standard seaworthy export packing, wooden pallets with plastics protection for the
coil and sheet;
2. 15-20MT can be loaded into 20’container and 21-24MT is more suitable in 40' container.
3. The other packing can be made based on the customer requirement;
4. Normally, we have four layers of packing: wooden pallets, hardboard, Kraft paper
and plastic. And fill more desiccants into package.
Application

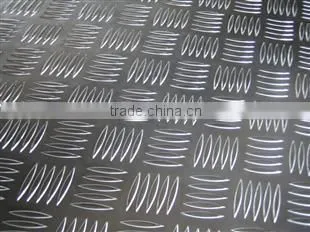

Aluminum checker plate is widely used in decorative, shipbuilding and architectural applications. Having good forming, drilling and welding ability, Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance.
Company Information
Jinan Honesty Aluminum Industry Co., Ltd
was established on 1998 and focus on aluminum product for more than 15 years. Our mainly product are aluminum plates,aluminum sheets, aluminum embossed sheets,
aluminum coils, aluminum alloy sheets, aluminum strips, aluminum pipes/tubes and aluminum sticks/rods.
Quality guarantee
If our aluminum product unqualified to GB/T3880-2006 or ISO9001, we will refund you the money.
Our quality assurance mechanism ensures that every product we manufacture passes through the following
quality check stages:
Material control system
Process control system
Machining & dimensional control
Certification & supplementary test
Finishing & marking
FAQ
Q: How long will it take to execute my order?
A:This depends on the the order quantity and models. our normal lead time is 10-15 working days.,but we have many models in stock,We will let you know the estimated lead time after payment ASAP.
Q: What kind Aluminum production you can produce?
A: Our mainly production are aluminum sheet, aluminum coil, aluminum tread plate, aluminum circles, etc/
Q: How much will the shipping cost be
A: This will depend on the size and weight of your order and the method of shipping,
When inquired about shipping charges, we will need the detailed infos such as models and qty, and the shipping method you prefer.
Q: Where is your factory location?
A: Our factory are located in Jinan city, Shandong Province. Add.: No.67, East of Shengli Road,Licheng District, Jinan, Shandong, China
Contact:
Whatsapp/Mob: +86 15552871440
Send Inquiry to This Supplier
