High gain 28dBi GPS+Glonass car Antenna
- 2000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- High gain 28dBi GPS+Glonass acitive Antenna
- High gain GPS+Glonass acitive Antenna
- 1595MHz 28dBi Magnet/Adhesive IP67 ROHS Compliant GPS Glonass Active Antennas with LNA
- 1595MHz 5dBic Magnet/Adhesive IP67 ROHS Compliant active gps glonass antennas with LNA
- gps glonass tracker 1595MHz 5dBic Magnet/Adhesive IP67 ROHS Compliant active ( LNA)
- gps glonass tracker 1595MHz 5dBic Magnet/Adhesive IP67 ROHS Compliant active ( LNA)
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yetnorson | Model Number: | YNX-ZX-GPS-005 |
Packaging Details
Bubble envelope,Carton packaging or as request
Product Description

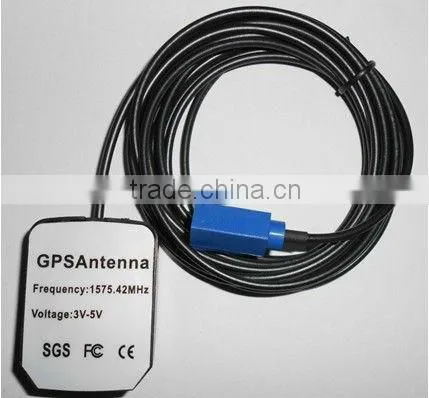

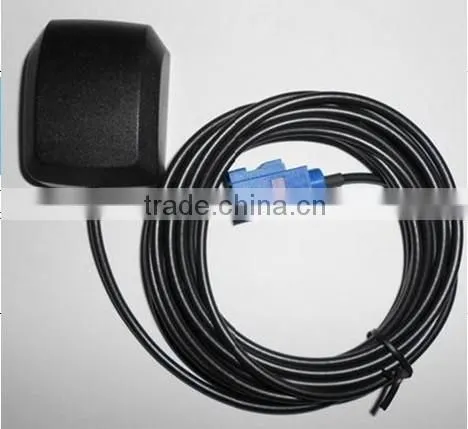

High gain 28dBi GPS+Glonass car Antenna
1. Product Technical Specifiction:
Frequency (MHz) | 1575.42MHZ±1.023MHZ |
Bandwidth (MHz) | 6MHZ |
Gain (dBi) | 28dB±3dB |
Input Impendence (Ω) | 50 |
V.S.W.R | ≤1.7 |
Consumption Electric | <10mA |
Polarization Intensity | R.H.C.P |
Supply Voltage | DC3.3~5.0V |
The Sound Coefficient | ≤1.5dB |
Axial Ratio | 3Db |
Max Input Power (w) | 50 |
Operating Temperature | -40°C~+85°C |
Storing Temperature | -40°C~+90°C |
Cable length (mm) | 3000 |
Connector Type | SMA(Customized) |
Radome Color | Black |
Weight (g) | 69 |
Fixed Mode | Magnetic |
2. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
3. Shipment:
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
4. Refund & Replacement
1. We can guarantee the product quality within 3 months.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact us if you have any questions or other requirement.
Company Profile
Shenzhen Yetnorson Technology Co.,Ltd is one of professional antenna maker, which focus on GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
We offer antennas with good quality and good price. And we are cooperating with several overseas clients from all over the world. Please support us. Thank you very much!
