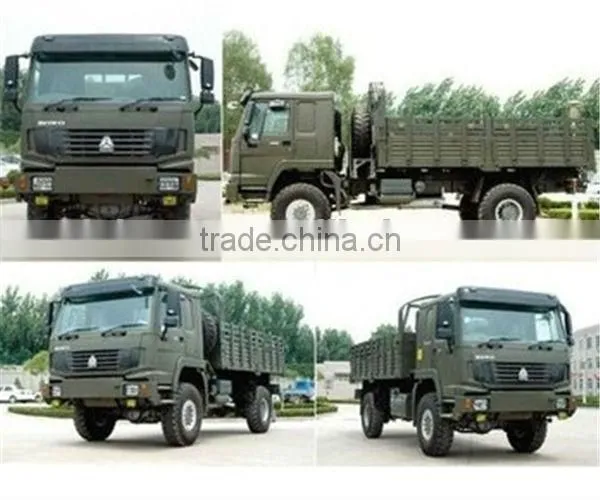

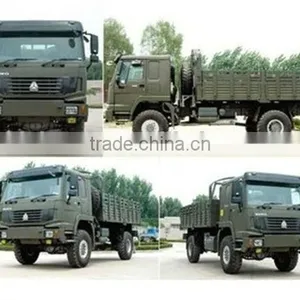

4x4 right drive hand dump truck
4x4 right drive hand dump truck
(1)the truck adopts sinotruk euroIII series engine which has the world's best technologies energy-saving,environmental protection and high efficiency.the engine is characterized by good reliability,strong power,big torque,low emission,low fuel consumption and low noise.
(2)four-pointed susending cab,saft and comfortable,mature all-wheel drive technology,good off-road performance.
(3)Scope of application:work in oil field,mine ,for firefighter and forest
Main Technical Parameter | ||
Product Name |
4x4 right drive hand dump truck |
|
Dimension (length×width×height)mm |
9642×2496×3110 |
|
Box dimension(length×width×height)mm |
4500×2300×800 thickness:bottom 4mm,side 3mm |
|
Chassis model |
ZZ3167M4327C1 |
|
Gross weight(kg) |
16000 |
|
Curb weight(Kg) |
8000 |
|
Drive Model |
4x4 Right hand Drive or left hand drive |
|
Max.speed(km/h) |
76 |
|
Wheelbase(mm) |
4300 |
|
Vehicle Body Color |
Green (optional) |
|
Engine |
Model |
WD615.92C(270HP) |
Displacement(L) |
9.726 |
|
Max.Power(kW) |
198 |
|
Rated power Rev(RPW) |
1900 |
|
Max Torque(N*m)/Rev(r/min) |
1190/1200-1500 |
|
Clutch |
Model |
Φ430 C-type diaphragm spring clutch |
Transmission |
Model |
HW15710 (10 forward, 2 reverse, manual) |
Ratio |
10.73 7.98 5.91 4.38 3.29 0.45 1.82 1.35 1.00 0.75 R1 10.49 R22.39 |
|
Drive Axle(drive axle)-Model |
STR steel front steering drive axle,ST16 rear drive Axle,ratio 5.73 |
|
Steering |
ZF8098 |
|
Brake type |
Service braking,dual circuit compressed air brake;parking brake(hand brake0,spring engergy air cut brake.ratio:5.73 |
|
Cabin |
HW76 cab |
|
Electric system |
VDO electric system ,24V,negative grouped |
|
Tire |
12.00-20 |
|
Fuel tanker(l) |
400 |
|
