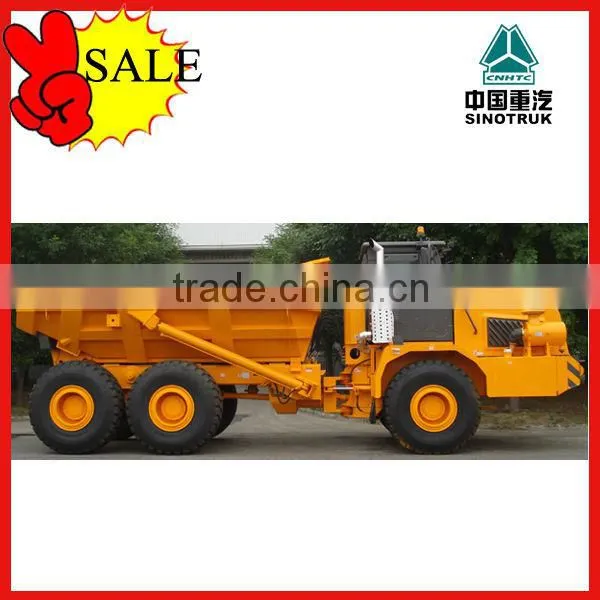

28ton Articulated Dump Truck For Sale
Please contact us for full specifications and prices. We will supply professional service, competitive price and try best to save cost for you with our many years’ experience.
1.Specifications
Name: 28 Ton Articulated Dump Truck for Sale
Model: AD300
Max speed: 42km/h
Engine: 336hp, EURO II
Name |
Articulated Dump Truck |
|
|
Main parameters |
Model |
AD300 |
Driving type |
6x6 |
|
Rated payload(kg) |
28000 |
|
Curb weight(kg) |
23500 |
|
G.V.W.(kg) |
51500 |
|
Size parameters |
Overall dimensions(mm) |
9916x2950x3750 |
Wheelbase(mm) |
4359+1700 |
|
Track width(mm) |
2300 |
|
Approach/Departure angle (°) |
26/78 |
|
Min. ground clearance without load/load(mm) |
418/375 |
|
Max. tipping angle (°) |
70 |
|
Performance parameters |
Max. speed(km/h) |
42 |
Max. grade ability(%) |
>43 |
|
Max. steering angle(°) |
45 |
|
Min. turning diameter(mm) |
≤17000 |
|
Brake distance (from 32km/h to stop)(mm) |
≤16000 |
|
Tipping time(s) |
<12 |
|
Lowering time(s) |
<10 |
|
Body capacity(m3) |
Struck: 12.9, heaped: 16.8 |
|
Engine |
Model |
Cummins QSM11-335 |
Emission |
EURO II |
|
Max. power(kw) |
250/2100r/min |
|
Max. torque(N.m) |
1704/1400r/min |
|
Transmission |
Model |
ZF6WG260 |
Style |
Electronically-controlled automatic transmission |
|
Drive axle |
Type |
Heavy duty axles with fully-floating axle shafts and outboard planetary reduction gearing |
Total reduction ratio |
18.28:1 |
|
2.Products
Our company supplies trucks and trailers worldwide, such as dump truck, tractor truck, cargo truck, concrete mixer truck, terminal tractor truck, mining dump truck, water truck, fuel truck, bulk cement truck, sewage suction truck, street sweeper truck, garbage compressor truck, lowbed trailer, flatebed trailer, tipping trailer, tanker trailer and so on.
Our products are exported to many countries, expecially popular in Nigeria, Tanzania, Ethiopia, Sauid Arabia, Angola, Liberia, Zambia, Colombia, Brazil, Vietnam, Indonesia, Philippines, Pakistan, Bangladesh, Mongolia, Fiji, Congo, United Arab Emirates, and so on.
There are professional team, high quality products, and low price, pls give us a chance to serve you, we won't let you down.
The more you know us, the more you trust, welcome to visit us any time.
3.CNHTC
(1)Generally introduction:
China National Heavy Duty Truck Group Co., Ltd has nearly 60 years’ history since 1958, where the first heavy duty truck was produced in China. CNHTC introduced STEYR and MAN technology in 1983 and 2009 year separately, ahead of other truck suppliers at home.
The sales volume broke through 100,000 units early in 2007, becoming a listed company and one of top five truck suppliers worldwide.
(2)Products:
Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series: cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type: RHD, LHD
Engine: with STEYR, MAN technology
Emission: EURO II, III, IV, V
(3)Advanced process line:
Automotive Body Stamping line: 3 pcs
Cab welding production line: 8 pcs
Cab painting line: 12 pcs
Assembly line: 9 pcs
(4)Overseas offices:
Establish about 480 sales&service offices in 6 districts worldwide: south east Asia, middle east, south Africa, north Africa, south America, part of Russia in middle Asia
(5)Exportation situation:
About 30,000 units of trucks were exported abroad in 2012
