Free sample gps tracker internal antenna (factory) Glonass GPS tracker antenna

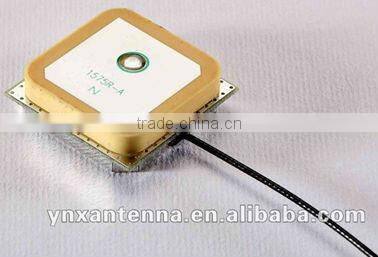

(Manufacotry)free sample gps tracker antenna gps ceramics antenna
gps chip antenna
Country of Origin
Directly Antenna Factory
Accept Customization of Product
gps chip antenna
Product Name |
GPS Antenna |
|
Model |
HYA-IGPS28A-60 |
|
|
Descriptions
|
It is applied to car navigation, logistics positioning and so on. |
|
Electrical Specification | ||
Frequency Range-MHz |
1575.42 |
|
Bandwidth-MHz |
5 |
|
Gain-dBi |
28 |
|
VSWR |
≤1.5 |
|
DC Voltage -V |
3-5 |
|
Noise Figure -dB |
≤1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
RHCP |
|
Max. Power-W |
50 |
|
Mechanical Specification | ||
Cable Length -mm |
60 |
|
Connector |
IPEX or customized |
|
Antenna Dimension-mm |
25×25×7.5 |
|
Weight-g |
21 |
|
Mounting |
embedded |
|
Temperature-°C |
-40~+60 |
|
Humidity-% |
5~95 |
|
| Frequency (MHz) | 1575.42MHZ±1.023MHZ |
| Bandwidth (MHz) | 6MHZ |
| Gain (dBi) | 28dB±3dB |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.7 |
| Consumption Electric | <10mA |
| Polarization Intensity | R.H.C.P |
| Supply Voltage | DC3.3~5.0V |
| The Sound Coefficient | ≤1.5dB |
| Axial Ratio | 3Db |
| Max Input Power (w) | 50 |
| Operating Temperature | -40°C~+85°C |
| Storing Temperature | -40°C~+90°C |
| Cable length (mm) | 100 |
| Connector Type | UFL connector |
| Radome Color | Black |
| Weight (g) | 30 |
GPS Tracker external antenna
Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
2. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
3. Shipment:
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
