Horizontal Boring and Milling Mill TPX6113
Main specification Of Boring Mill TPX6113
Main specifications |
Unite |
TPX6113 |
Spindle diameter |
mm |
130 |
Spindle taper |
#6 |
|
Number of spindle speed step |
22 |
|
Range of spindle speed |
r/min |
8-1000 |
Range of facing head speed |
r/min |
4-200 |
Facing head diameter |
mm |
750 |
Number of facing head speed step |
18 |
|
Worktable size (L×W) |
mm |
1600×1400 |
Max. load of worktable |
kg |
8000 |
X axis traverse |
mm |
1600 |
Y axis traverse |
mm |
1500 |
Z axis traverse |
mm |
1500 |
W axis traverse (spindle travel) |
mm |
900 |
U axis traverse (Facing spindle travel) |
mm |
180 |
B axis worktable rotary |
360° |
|
Rapid speed (X/Y/Z/W) |
Mm/min |
2500 |
Measurement system reading precision(X/Y/Z) |
mm |
0.005 |
B-axis measurement system reading precision |
0.001 |
|
Power of main motor |
kw |
7.5 |

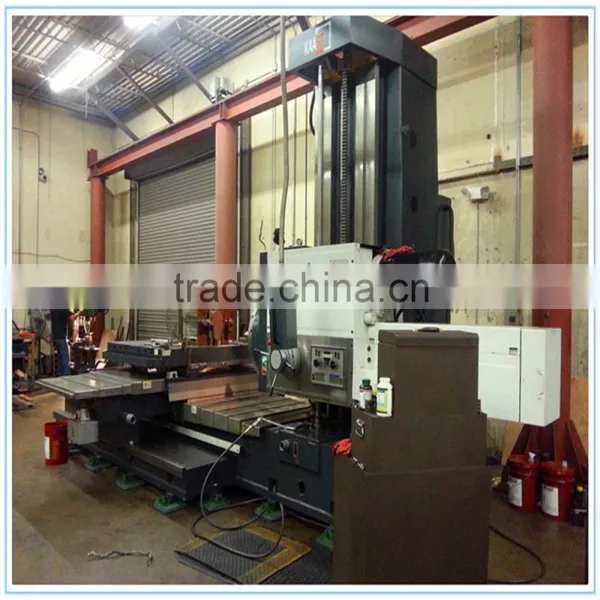

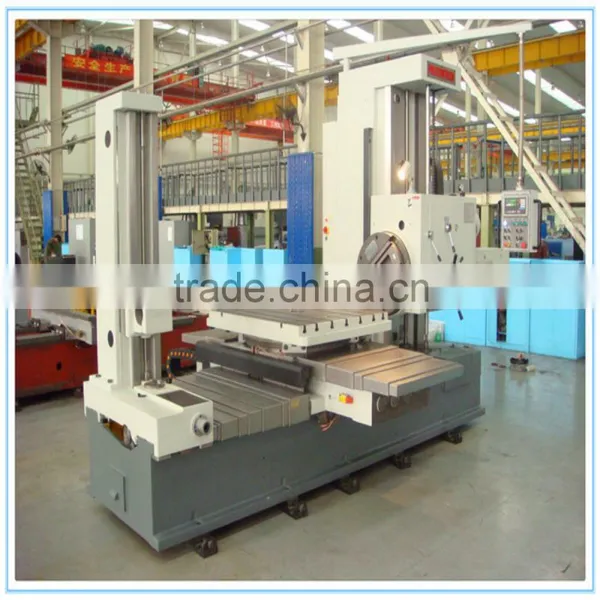

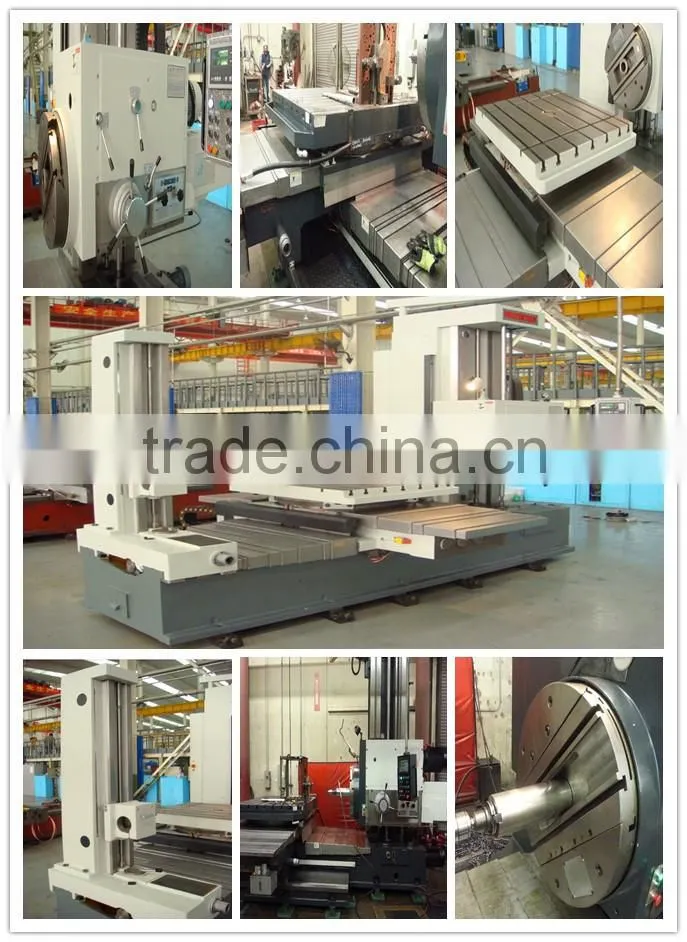

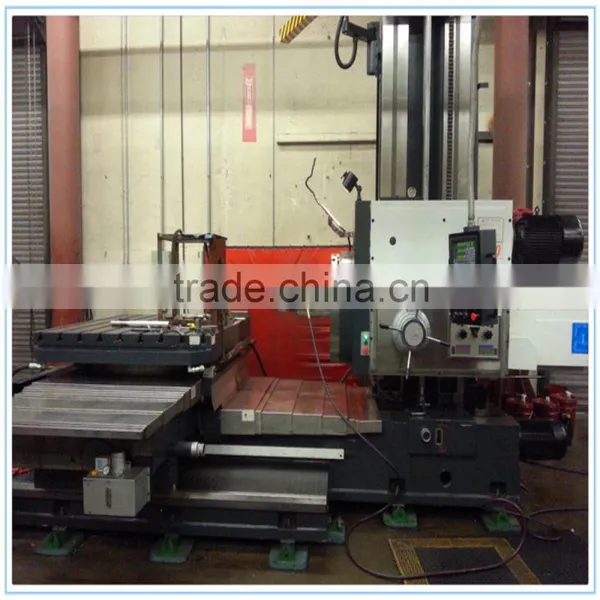

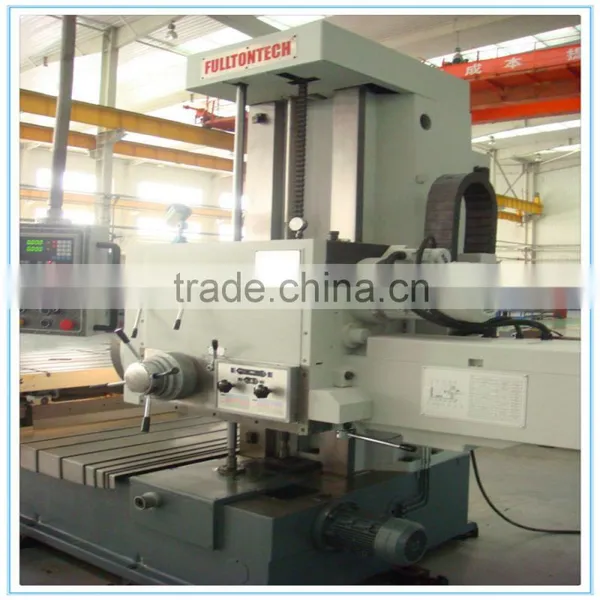

Detail Pictures of boring mill TPX6113

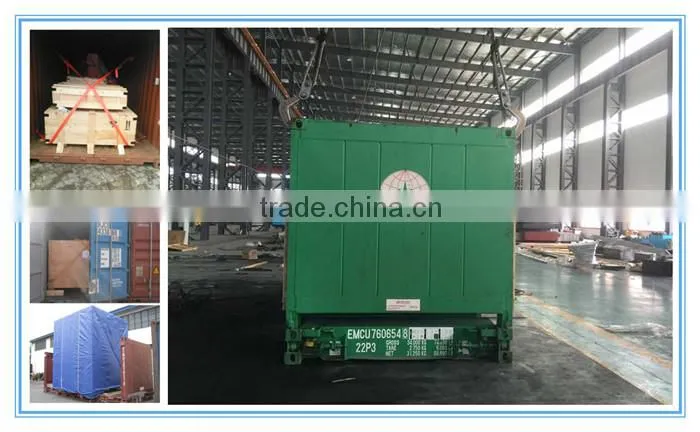

Packing and Shipping Standard
1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to
prevent possible errosion during transportation.
2. A plastic cover to wrapp around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and sepcially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.
5. At seaprot, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving
during transportation.

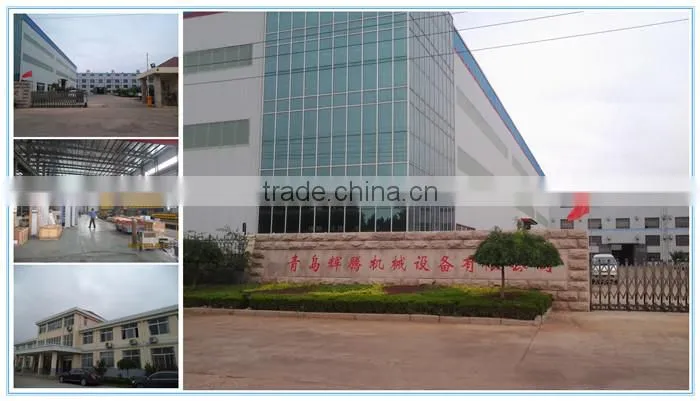

General Introduction
Qingdao Huiteng Machinery Equipment Co., Ltd is one of the leading machinery group specializing in
producing heavy duty machine tools, and supplying the latest boring, milling and turning technology to
worldwide customers.We manufacture Floor type boring mills, Planer type boring mills, Table type boring
mills, Gantry milling machine and Vertical turning lathe. In reliance of the advantage in product range, reliable
quality, technical back-up and after-sales networks over 30 countries worldwide and CHTEM has become the
well-known Chinese brand name overseas. Combined with outstanding productivity and service, our
customers enjoy a significant market advantage. We believe in achieving excellence and that there is always
room to improve. CHTEM consistently strides ahead of the pack in precision, innovation, service excellence,
and a practical, sustainable approach to business.
