TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price

TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-1
TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-2
TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-3
TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-4
TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-5
TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price photo-6
US$ 50,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Production Capacity:
High
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not Normal
Production Capacity High
Place of Origin Shandong, China
Brand Name CHTEM
Model Number TPX6113
Voltage According to client's site voltage
Power(W) 15 KW
Dimension(L*W*H) Table size: 1600x1400
Weight Max. weight of workpiece: 8 tons
Certification ISO9001:2008; CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price

Product Description



Main specification Of TPX 6113 Table Type Manual Heavy Horizontal Boring Milling Machine







Main specifications

Unite

TPX6113

Spindle diameter

mm

130

Spindle taper



Metric 80 (7:24 No.50)

Number of spindle speed step



22

Range of spindle speed

r/min

4-800

Range of facing head speed

r/min

4-200

Facing head diameter

mm

750

Number of facing head speed step



18

Worktable size (L×W)

mm

1600X400

Max. load of worktable

kg

8000

X axis traverse

mm

1600

Y axis traverse

mm

1500

Z axis traverse

mm

1500

W axis traverse (spindle travel)

mm

900

U axis traverse (Facing spindle travel)

mm

250

B axis worktable rotary



360°

Rapid speed (X/Y/Z/W)

Mm/min

2500

Measurement system reading precision(X/Y/Z)

mm

0.005

B-axis measurement system reading precision



0.001

Power of main motor

kw

15

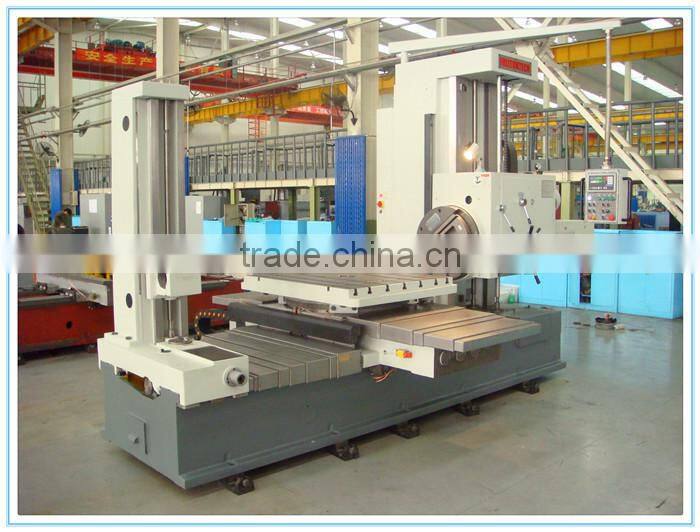

Detail Pictures of Heavy Horizontal Boring Milling Machine details



 TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price

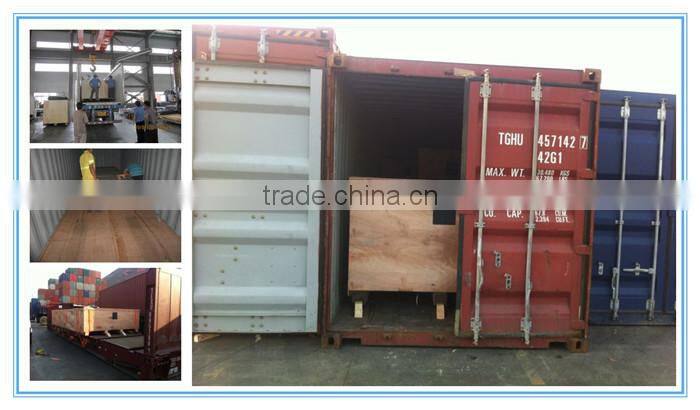

Packaging & Shipping



Fumigated wood package & Steel wire reinforcement



TPX6113 Table Type Manual Horizontal Boring Milling Machine With Low Price



Packing and Shipping Standard



1. Before shipment, every part of machine will be painted with a layer of anti-rust and



water-proof oil to prevent possible errosion during transportation.



2. A plastic cover to wrapp around machine parts to enhance corrosion prevention.



3. Export standard fumigated wood cases are measured and sepcially made for packing.



4. Steel wire will be used to tighten and strengthen the packages inside container.



5.  At seaprot, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning



or moving during transportation.
