Mill finish 2A12 2024 T4 T351 aluminum sheet used for mould
Quick Details
What's your product?
application |
aircraft structures and truck frames |
certificate |
NADCAP,DNV,LR,ABS |
alloy |
2A12,2024,6061,6063, 7075,7050, etc |
temper |
T4 T6 T651,T351,T451,T*51,etc |
thickness |
1--300mm |
length |
1000--9000mm |
width |
1000-4000mm |
surface condition |
mill finished |
intergranular corrosion |
no greater than 15mg/cm² |
exfoliation corrosion |
PB or better |
Product Description

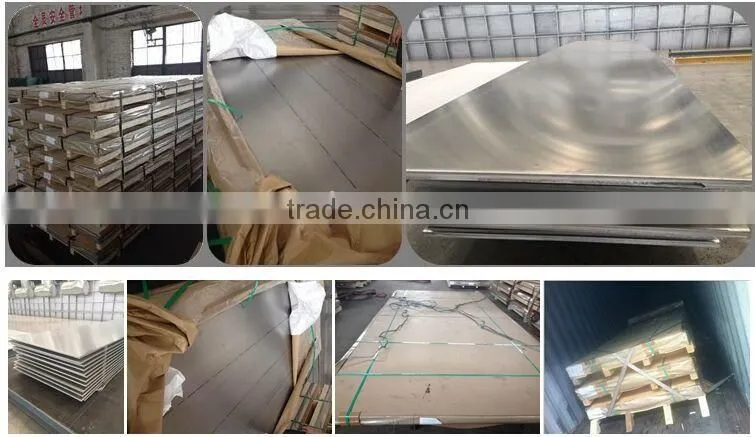

What's your product look like?
Mill finish 2A12 T4 T351 aluminum sheet used for mould
What's your Product's more detail?
Being a client-centric organization, we are engaged in manufacturing, supplying and exporting a comprehensive range of Aluminum Alloy 2A12. Manufactured at our sophisticated infrastructure unit, the aluminum alloy offered by us is highly applauded for their features like low maintenance, dimensional accuracy and high tensile strength. Further, our appointed quality controllers closely inspect our range on different parameters to ensure flawlessness.
Alloy : 2024 2A12
Temper : T4 T351
Gauge : 1-200mm
Width : 1000-2500
Usage : mould making, automated machinery parts
Name: Aluminum plate 7075 high strength plate
Thickness: 1-200mm
Width: 1000-6000mm
Temper: T4 T351
Feather: steady and consistent quality, good product durability, high performance and cost ratio, professional team.
Chemistry Data:
|
2A12 Typical Mechanical Properties | ||||
|
ALLOY AND TEMPER |
Ultimate Tensile Strength (25°CMPa) |
Tensile Yield Strength (25°CMPa) |
Hardness 500kg force 10mm ball |
Elongation 1.6mm(1/16in) Thickness |
2A12 O |
185 |
70 |
47 |
20 |
2A12 T4 |
470 |
325 |
120 |
20 |
2A12 T351 |
495 |
395 |
130 |
13 |
2A12 CHEMICAL ANALYSIS | ||||||||
Cu |
Si |
Fe |
Mn |
Mg |
Zn |
Cr |
Ti |
AL |
3.8-4.9 |
0.5 |
0.5 Max |
0.30-0.9 |
1.2-1.8 |
0.25 Max |
0.10 |
0.15 Max |
Balance |
Principal design features:
Precipitation hardening alloy with good strength after heat treatment
Applications:To manufacture of aircraft structures and truck frames
Other Physical Properties:Electrical conductivity 33% of copper
Other Mechanical Properties:Shear strength: O (annealed) temper 18 KSI
T4 temper 38 KSI

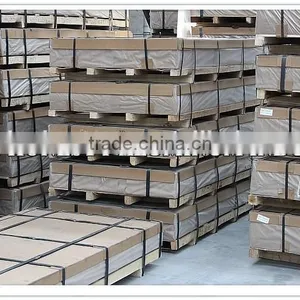

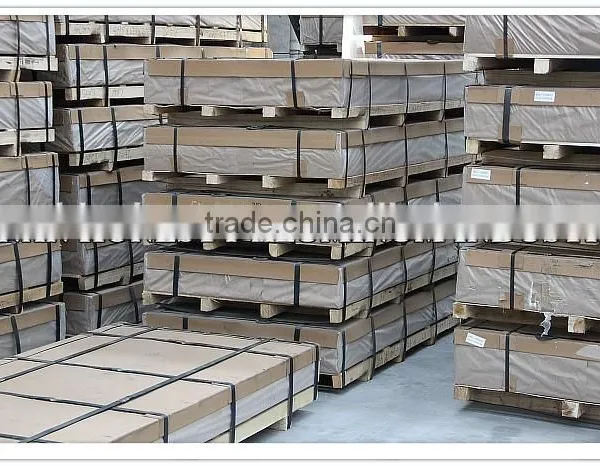

Packaging & Shipping
What's your product packaging look like?
Our company adopts developed packaging technology and packaging style to ensure packaging
quality. We are unique in the industry , this technology can ensure that the products will not be affected with damp, deformation, as well as the fold change during transporting. Also ,we roll a layer of paper into every two layers of aluminum strip to protect it from being wet. We have three kinds of packaging, eye to sky, eye to wall and cases packaging.
Company Information
What is your company?
Jinan Honesty Aluminum Industry Co., Ltd was established on 1998 and focus on aluminum
product for more than 15 years. Our mainly product are aluminum plates, aluminum
sheets, aluminum embossed sheets, aluminum coils, aluminum alloy sheets, aluminumstrips,
aluminum pipes/tubes and aluminum sticks/rods.
Jinan Honesty Aluminum Industry Co., Ltd. Is engaged in aluminum foil, coil, sheet, plate for more than 10 years, thus we have rich product, technology and market experiences. With the world’s top aluminum processing equipments, experienced technical staff, cooperative and professional sales team, and the enterprise concept of responsibility and sharing, we have been widely focused since the day set up, and has gained high praise from customers home and abroad until now.
What's your prime product?
We specially produce and sell all kinds of aluminum foil, coil, sheet, circle and plate with different sizes and applications. For Foil product, the main gauge ranged from 0.006mic to 0.10mm, and width ranged from 200mm to 2000mm.
Alloy 1100 1050 1060 3003 5052 5754 5083 6061 6082 6063 8011.
High-end alloy:2024 2124 2A12 6061 6063 6082 7075
Quality control
The central laboratory is equipped with the device which made by the world's top manufacturer. They can carry out the test such as :the product composition analysis, mechanical performance analysis, metallographic analysis, environmental simulation, heat test, testing analysis, corrosion analysis, project.
Our company had built the quality supervision department and Aluminum lab to control the Our company had built the quality supervision department and Aluminum lab to control the quality of production which will export the other countries.
-
FAQ
Q: Do you provide free samples?
A: Yes, free samples will be sent to you on freight at destination.
Q: Can I get your latest products catalogue?
A: Yes, it will be sent to you in no time.
Q: What is the MOQ?
A: 2 tons
Q: What are your payment terms?
A: We accept L/C, T/T.
Q: What kinds of alloy can you supply?
A: 1000 series: 1050, 1060, 1070,1100,1145 1200
3000 series: 3003, 3004, 3105,3104
5000 series: 5052, 5083, 5754,5182
6000 series: 6061, 6063,6062,6063
8000 series: 8011, 8021
Q: What kinds of temper can you supply?
A: O-H112: O,H12,H14,H16,H18,H22,H24,H26,H,32,H34,H111,H112
