high quality 90 degree bend 5052 aluminum sheet Plate
Quick Details
What's your product?
application |
aircraft structures and truck frames |
certificate |
NADCAP,DNV,LR,ABS |
alloy |
2A12,2024,6061,6063, 7075,7050, etc |
temper |
T4 ,T3 T6 T651,T351,T451,T*51,etc |
thickness |
1--300mm |
length |
1000--9000mm |
width |
1000-4000mm |
surface condition |
mill finished |
intergranular corrosion |
no greater than 15mg/cm² |
exfoliation corrosion |
PB or better |
Product Description
What's your product look like?

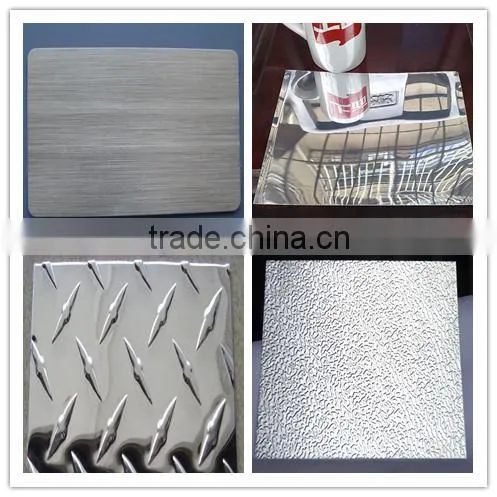

high quality 90 degree bend 2A12 T4 T351 aluminum sheet
What's your Product's more detail?
Being a client-centric organization, we are engaged in manufacturing, supplying and exporting a comprehensive range of Aluminum Alloy 2024. Manufactured at our sophisticated infrastructure unit, the aluminum alloy offered by us is highly applauded for their features like low maintenance, dimensional accuracy and high tensile strength. Further, our appointed quality controllers closely inspect our range on different parameters to ensure flawlessness.
Alloy : 2024 2A12
Temper : T4 T351
Gauge : 1-200mm
Width : 1000-2500
Usage : mould making, automated machinery parts
Name: Aluminum plate 7075 high strength plate
Thickness: 1-200mm
Width: 1000-6000mm
Temper: T4 T351
Feather: steady and consistent quality, good product durability, high performance and cost ratio, professional team.
Chemistry Data:
|
2A12 Typical Mechanical Properties | ||||
|
ALLOY AND TEMPER |
Ultimate Tensile Strength (25°CMPa) |
Tensile Yield Strength (25°CMPa) |
Hardness 500kg force 10mm ball |
Elongation 1.6mm(1/16in) Thickness |
2A12 O |
185 |
70 |
47 |
20 |
2A12 T4 |
470 |
325 |
120 |
20 |
2A12 T351 |
495 |
395 |
130 |
13 |
2A12 CHEMICAL ANALYSIS | ||||||||
Cu |
Si |
Fe |
Mn |
Mg |
Zn |
Cr |
Ti |
AL |
3.8-4.9 |
0.5 |
0.5 Max |
0.30-0.9 |
1.2-1.8 |
0.25 Max |
0.10 |
0.15 Max |
Balance |
Principal design features:
Precipitation hardening alloy with good strength after heat treatment
Applications:To manufacture of aircraft structures and truck frames
Other Physical Properties:Electrical conductivity 33% of copper
Other Mechanical Properties:Shear strength: O (annealed) temper 18 KSI
T4 temper 38 KSI
Packing and shipping

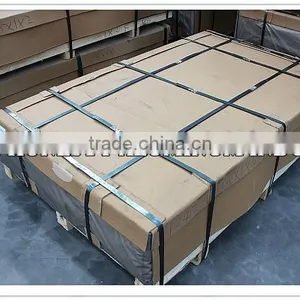

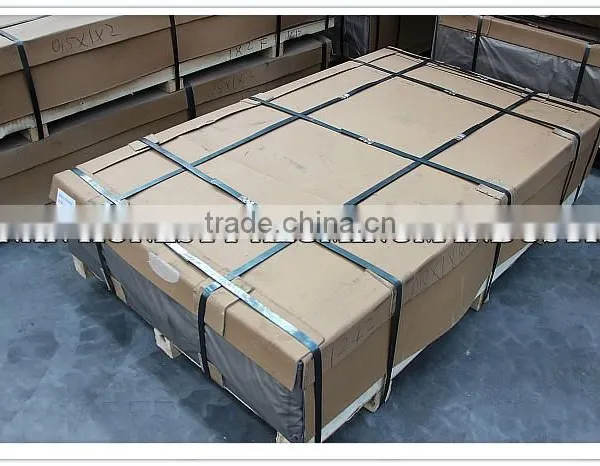

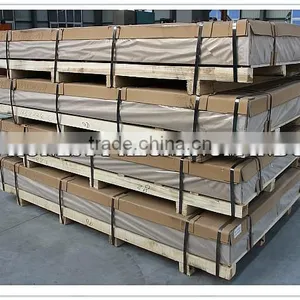

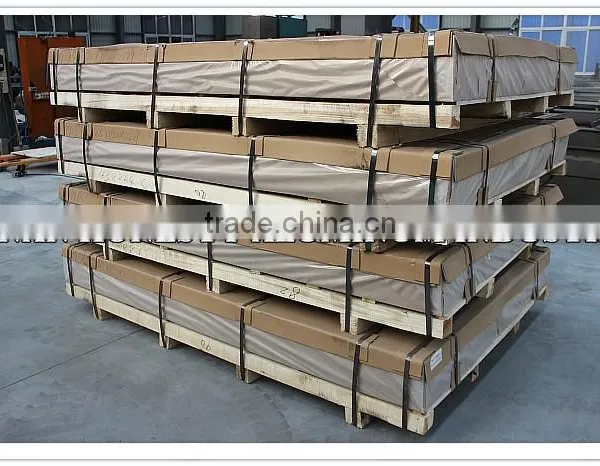

aluminium plate 2A12 T4 T351 packaging
All products are packaged according to the Standard export packing.
In order to prevent friction damage and water erosion and so on.
Production Flow
aluminium plate 2A12 production flow
Ingot/Master Alloys --- Melting Furnace – Holding Furnace --- D.C. Caster --- Slab ---- Scalper ---
Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace -- Final Inspection – Packing
--- Delivery
Our Services
1. We will reply within 1 hour
2. Samples can be supplied
3. Book the ship as customer required , and choose the cheaper one for customers .
4. Supply the loading pictures to customers, so the customer do not need to check the goods
5. After customer get the goods , any problem , we will change for our customer .
6. Supply certificate for customers , as DNV , MTC ,SGS ,CCPIT
7. Third party inspection at your request
Company Information
Company Information
Jinan Honesty Aluminum Industry Co., Ltd was established on 1998 and focus on aluminum product for more than 15 years. Our mainly product are aluminum plates, aluminum sheets, aluminum embossed sheets, aluminum coils, aluminum alloy sheets, aluminum strips, aluminum pipes/tube and aluminum sticks/rods.
Quality Guarantee: If our aluminum product unqualified to GB/T3880-2006 or ISO9001, we will refund you the money.
High quality, competitive price, Long term cooperation with you.
Why Us?
The team of skilled professionals hired by us makes sure to manufacture the products in compliance with needs and demands of the esteemed customers. Besides, we make sure to test the products on varied stringent parameters, so as to assure their flawlessness. Owing to the following reasons, we have carved a favorable niche for ourselves in the industry.Some of our strengths that make us a reliable business partner to work with are:
•Extensive industry expertise
•Provision for third party inspection
•State-of-art production facilities
•Superior quality products
•A design solution to a design problem
•Team of proficient engineers, technicians and quality inspectors
•Proven ability in successful execution of small as well as bulk orders
•Timely supplies
•Precision engineered products at economical prices
•Unending pursuit of product, process and performance optimization
Our Testing Equipment
FAQ
Q: Do you provide free samples?
A: Yes, free samples will be sent to you on freight at destination.
Q: Can I get your latest products catalogue?
A: Yes, it will be sent to you in no time.
Q: What is the MOQ?
A: 2 tons
Q: What are your payment terms?
A: We accept L/C, T/T.
Q: What kinds of alloy can you supply?
A: 1000 series: 1050, 1060, 1070,1100,1145 1200
3000 series: 3003, 3004, 3105,3104
5000 series: 5052, 5083, 5754,5182
6000 series: 6061, 6063,6062,6063
8000 series: 8011, 8021
Q: What kinds of temper can you supply?
A: O-H112: O,H12,H14,H16,H18,H22,H24,H26,H,32,H34,H111,H112
T3 T4 T6
Other Products
We can produce aluminum sheet, aluminum plate, aluminum circle, aluminum coil, aluminum strip, aluminum diamond plate, aluminum tread plate, aluminum checker plate, aluminum wire, aluminum pipe, aluminum coiled tube with mill finish, mirror finish.
Please pick your required products!
Contact Us
Any requirements or questions pleases inquiry me, I'll be willing to talk details with you
Win market with quality, show excellence with technology!
We create the best quality and service to meet customer requirement !
We look forward to having chance to star our long-term cooperation with friends from all over the world !
You 100% satisfaction will always be our aim !
We warmly welcome clients from all over the world to cooperate with us and develop worldwide market together.
Also we hope we can have chance to establish long-term business relationship with you on the
basis of mutual benefits..
