C6 household used mini metal lathe machine
- 200 Set / Sets per Month
- Shanghai
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 250mm | Place of Origin: | Shanghai, China |
Brand Name: | mini metal lathe machine | Model Number: | C6 | Voltage: | 110/220V |
Power(W): | 550W | Dimension(L*W*H): | 1040x600x450mm | Weight: | 125kg |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
C6 Mini Metal Lathe Machine
Feature:
-Near silent running
- Integral splash guard
- Metric and Imperial thread cutting
- Full range of accessories available
- Converts to a multi-purpose machine with the milling attachme
- Medium capacity, high quality lathe suitable for workshop or school use
Specification:
Specification | C6 |
Swing over bed | 250 mm |
Distance between centers model 400 | 400 mm |
model 550 | 550 mm |
Hole through spindle | 20 mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Cross slide travel | 110 mm |
Compound travel | 75 mm |
Range of threads Metric version | 0.4-3.0 mm(12 thread pitches) |
Imperial version | 10-44 TPI(8 thread pitches) |
Motor output power | 550W |
Spindle speed | 125-2000 rpm+10% (6steps) |
Overall dimension model 400 | 1040*600*450mm |
model 550 | 1140*600*450mm |
Packing size (L*W*H) model 400 | 1070*640*580mm |
model 550 | 1170*640*580mm |
Weight(Net&Gross) model 400 | 125/160 kg |
model 550 | 145/180 kg |
Standard accessory:
-125mm 3-jaw Chuck
-Dead center MT3/MT2
-Change gear set
-Wrench set
-Oil can

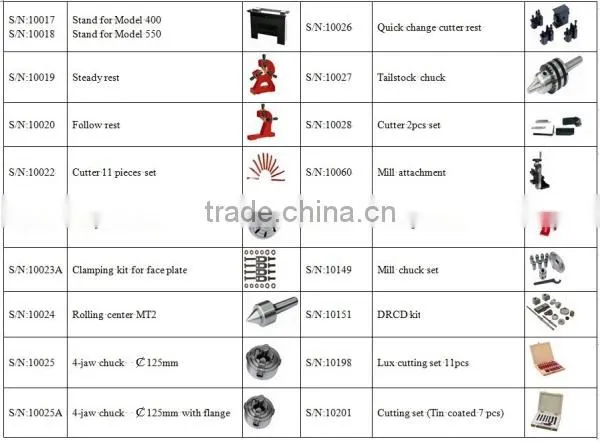

Optional accessory:
