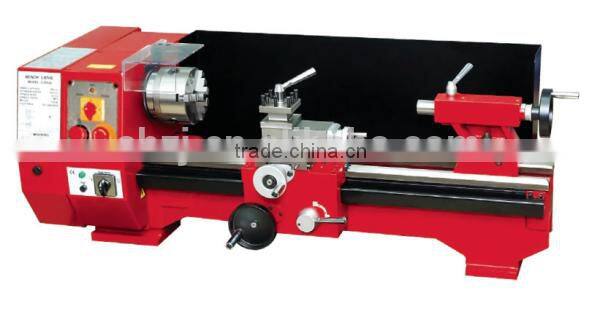

C6Bx550 Mini Lathe Machine

C6Bx550 Mini Lathe Machine thumbnail-1
C6Bx550 Mini Lathe Machine photo-1
US$ 900 - 1,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Shanghai Zhong Jing Imp. & Exp. Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 250mm
Place of Origin Shanghai, China
Brand Name mini lathe machine
Model Number C6Bx550
Voltage 110-230V
Power(W) 800W
Dimension(L*W*H) 1170x600x450mm
Weight 145kg
Certification CE
After-sales Service Provided Overseas service center available

Specifications

Mini Lathe Machine
-Electronic variable spindle speeds
-Medium capacity, suitable for workshop or school use

Mini Lathe Machine

C6Bx550 mini lathe machine

C6Bx550 mini lathe machineC6Bx550 mini lathe machineC6Bx550 mini lathe machine



Feature:

- Near silent running

- Integral splash guard

- Metric and Imperial thread cutting

- Electronic variable spindle speeds

- Medium capacity, high quality lathe suitable for workshop or school use



Specification:

Specification

C6B

Swing over bed

250 mm

Distance between centers

550 mm

Hole through spindle

20 mm

Spindle taper

MT3

Tailstock taper

MT2

Cross slide travel

110 mm

Compound travel

75 mm

Range of threads   Metric version

0.4-3.0 mm(12 thread pitches)

                             Imperial version

10-44 TPI(8 thread pitches)

Motor output power

800W

Spindle speed (variable speed)

0-2000 rpm+10%

Overall dimension

1140*600*450mm

Packing size (L*W*H)

1170*640*580mm

Weight(Net&Gross)

145/180 kg





Standard accessory:

-125mm 3-jaw Chuck

- Dead center MT3/MT2

- Change gear set

- Wrench set

- Oil can

 Optional accessories:

C6Bx550 mini lathe machineC6Bx550 mini lathe machine



 C6Bx550 mini lathe machineC6Bx550 mini lathe machineC6Bx550 mini lathe machineC6Bx550 mini lathe machine
