Specifications
Mini Lathe1.High power with large cutting capacity
2.Cutting thread pitchs only adjust gear box handles, no need change gears
Mini Lathe Machine
Feature:
1.Overrunning clutch
2.Hardened bed way
3. High power with large cutting capacity
4. Auto feeding on both X, Y axis
5. Cutting all thread pitchs only adjust the gear box handles, no more need changing gears
Specification:
Swing over bed |
280 mm |
Distance between centers |
600 mm |
Hole through spindle |
25 mm |
Spindle taper |
MT4 |
Tailstock taper |
MT2 |
Cross slide travel |
155 mm |
Compound travel |
80 mm |
Range of threads Metric version |
0.25-2.5 mm(14thread pitches) |
Imperial version |
12-96 TPI(9 thread pitches) |
Motor output power |
735 W |
Spindle speed |
(6steps)125-2000 rpm+10% |
Overall dimension |
1350x750x630 mm |
Packing size (LxWxH) |
1400x890x670 mm |
Weight(Net&Gross) |
190/230 kg |
Standard accessory:
-130mm 3-jaw chuck
-MT2 center
-Wrench set
-Oil can

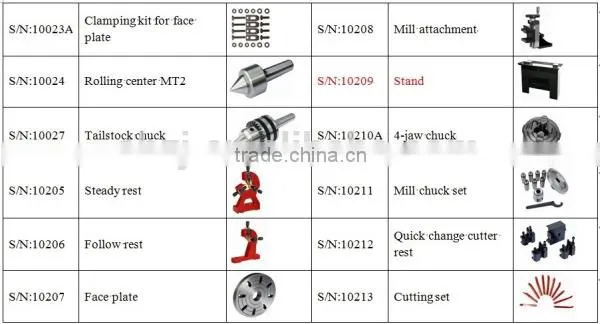

Optional accessories:
