Help CenterC4Bx410 Mini Lathe Machine
Related Products
Specifications
Mini Lathe machine1.Powered X and Y axis
2.Integral splash guard
3.6 ratio stepped pulley spindle speeds

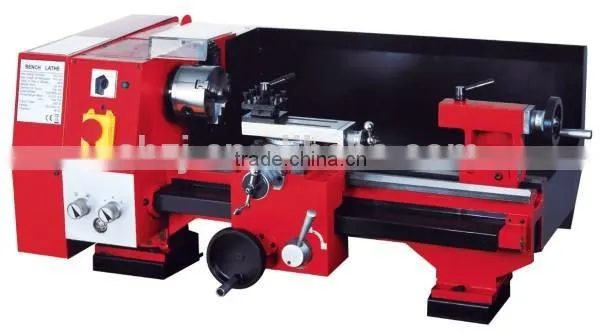

Mini Lathe Machine
Feature:
1.Powered X and Y axis
2. Metric and imperial thread cutting abilities
3. Thread pitch selected from a gearbox
4. Integral splash guard

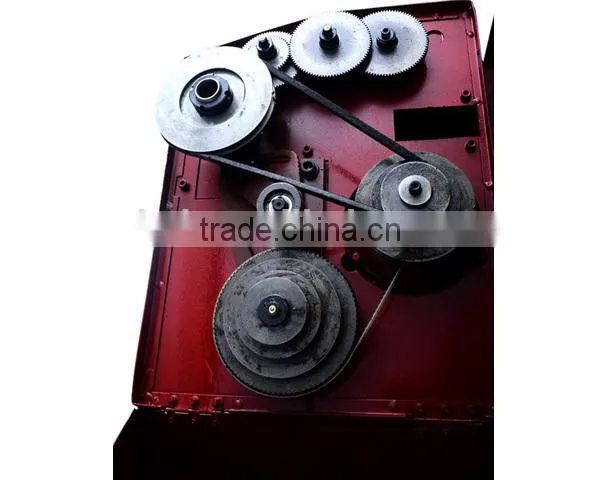

5. 6 ratio stepped pulley spindle speeds
6. Full range of accessories available
Specification:
Model |
C4B |
Swing over bed |
210mm |
Distance between centers |
410mm |
Hole through spindle |
20mm |
Spindle taper |
MT3 |
Tailstock taper |
MT2 |
Spindle speed |
100-2000rpm±10% |
Compound travel |
70mm |
Cross slide travel |
100mm |
Motor output power |
550W |
Thread range Metric version |
0.4-3.5mm |
Imperial version |
7-44 TPI |
Overall dimension (LxWxH) |
910 x 630 x 400mm |
Packing size (LxWxH) |
1060 x 710 x 510mm |
Weight(net/gross) |
94/121kg |
Stand accessory:
-100mm 3-jaw chuck
-MT2 center
-Change gear set
-Wrench set
-Oil can

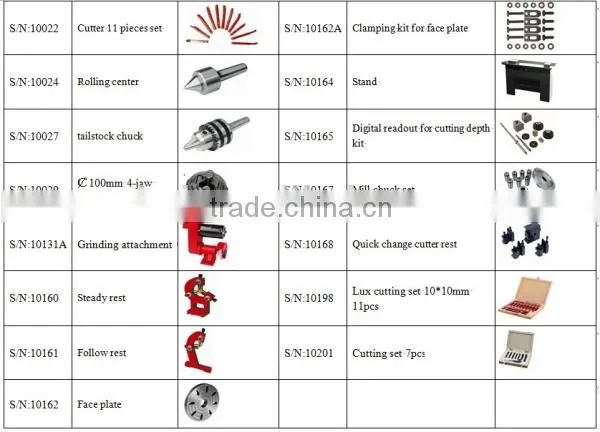

Optional accessories:
