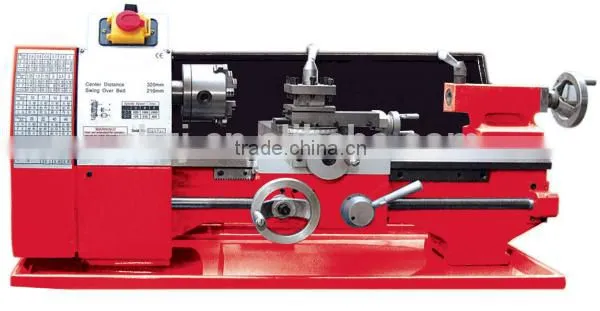

Help CenterC250x400 Mini Lathe Machine
Related Products
Specifications
Mini Lathe1.Supersonic frequency harden and precision ground bedway
2.Safety magnetic switch or lock key switch
Education or DIY Mini Lathe Machine
Feature:
1.Precision ground and supersonic frequency hardened bed ways.
2. High accuracy and well wear-resisting
3. The spindle is supported with precision roller bearing
4. Safety magnetic switch or lock key switch
Specification:
Model |
C250 |
Max. swing over bed |
250mm |
Max. swing over cross slide |
140mm |
Distance between centers |
400mm |
Spindle bore |
20mm |
Taper of spindle bore |
M.T.#3 |
Range of spindle speed |
125-2000rpm |
Range of longitudinal feeds |
0.1-0.2mm/rev. |
Range of metric threads |
0.4-3mm |
Range of inch threads |
10-44TPI |
Max. Size of tool shank |
14 x 14mm |
Taper of tailstock bore |
M.T.#2 |
Power of motor |
550W |
Asunder packaging size and weight
Type of lathes |
Packing dimensions |
Net weight |
Gross weight |
C250x 400 |
1045x560x565mm |
105kg |
145kg |
C250 x 550 |
1155x560x565mm |
109kg |
149kg |
C250 x 750 |
1355x560x565mm |
119kg |
159kg |
Standard Accessory:
-3 Jaw Chuck
-4 Jaw Chuck
-Face plate
-Steady rest
-Follow rest
-Splash Guard
-Oil tray
-Change gears
-Tool box and tools
-Dead Centers
Optional Accessory:
-Foot Stands
-Leadscrew cover
-Chuck cover
-Live center
