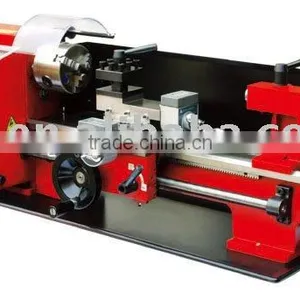

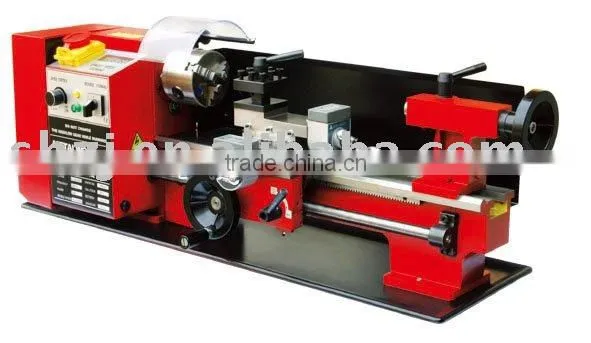

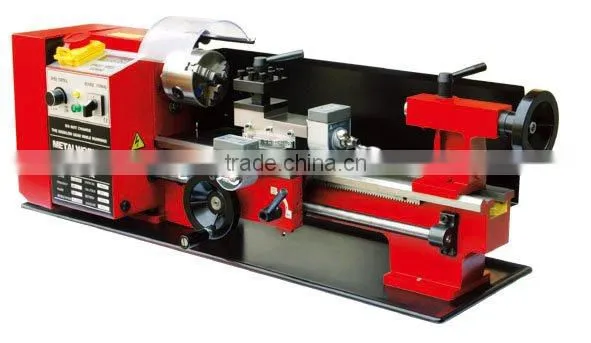

C3A Mini Lathe Machine

Name: C3A Mini Lathe Machine
Brand: mini lathe machine
SKU: 115321159

US$ 500 - 600 MOQ: 10 Sets

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

Normal

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 180mm

Place of Origin Shanghai, China

Brand Name mini lathe machine

Model Number C3A

Voltage 110/220V

Power(W) 350W

Dimension(L*W*H) 800x300x300mm

Weight 44kg

Certification CE

After-sales Service Provided Overseas service center available

Specifications

Mini Lathe
1.With digital readout for cutting depth
2.350W reversible motor with variable speed and 2 speed gearbox

Mini Lathe Machine

Feature:

1.With digital readout for cutting depth

2.Constructed with cast iron giving great rigidity

3. Precision ground Vee bed slide ways

4. Fully featured saddle and carriage assembly including powered lead screw

5. 350W reversible motor with variable speed and a 2 speed gearbox

6. Supplied with, 80mm 3 jaw chuck, 2MT centre, change wheel set, wrench set

Specification:

Swing over bed	180 mm
Distance between centers	300 mm
Hole through spindle	20 mm
Spindle taper	MT3
Tailstock taper	MT2
Cross slide travel	65 mm
Compound travel	55 mm
Range of threads Metric version	0.4-2.0 mm(10 thread pitches)
Imperial version	12-52 TPI(18 thread pitches)
Motor output power(Brushless motor)	500 W
Variable speed	100-2500 rpm+10%
Overall dimension	720300300 mm
Packing size (LWH)	780420390 mm
Weight(Net&Gross)	44/51 kg
